Last updated for 2026. If you want one mount that handles most deep sky imaging without a second thought, the Sky-Watcher Star Adventurer 2i Pro is the pick: it weighs 7 pounds, tracks well once aligned, and has the largest owner base in this roundup at 609 reviews. The iOptron SkyGuider Pro is the runner-up for anyone who wants a rigid metal body and a built-in illuminated polar scope, and the Celestron Advanced VX is the choice if a telescope rather than a camera is going on top.
The mount is the one component that quietly decides how good your data is. Everything else in the imaging train can be upgraded later, but a mount that cannot hold tracking weight, cannot be balanced, or flexes on a wobbly tripod will show up in every single subframe you take. That is why our list of the best equatorial mounts for deep sky imaging spends more time on payload, head weight, and guided error than on any other spec.
We looked across the whole category rather than only the newest releases. The list below covers camera-only star trackers, complete GoTo equatorial kits, and full German equatorial heads for telescopes, so you can match the class of mount to the class of telescope you actually own. If you have not chosen an optical tube yet, our guide to the best telescopes for deep space viewing is a useful companion read.
Table of Contents
Top 3 Best Equatorial Mounts for Deep Sky Imaging (October 2026)
These three are the ones we would put on a tripod first. The Star Adventurer 2i wins on owner history and price-to-capability, the SkyGuider Pro wins on machining quality, and the Advanced VX wins the middle of the market with true telescope payload.
Sky-Watcher Star Adventurer 2i Pro
- 7 lb tracking head
- Wi-Fi SAM Console control
- Deluxe equatorial base
- Camera-only payload
iOptron SkyGuider Pro
- All-metal body
- 11 lb payload
- AccuAlign polar scope
- 20 hour internal battery
Celestron Advanced VX
- 30 lb payload
- 2 inch steel tripod
- 7-77 degree latitude
- NexStar+ 40
- 000 objects
Every Equatorial Mount at a Glance in 2026
Seven mounts, five classes of hardware. The two columns that decide most purchases are the payload number and whether the package includes a rigid support, because a light tracking head on a flimsy tripod will not hold subframes steady.
| Product | Specifications | Action |
|---|---|---|
| Sky-Watcher Star Adventurer 2i Pro |
|
Check Latest Price |
| iOptron SkyGuider Pro |
|
Check Latest Price |
| Celestron Advanced VX |
|
Check Latest Price |
 Sky-Watcher Star Adventurer GTi Kit |
|
Check Latest Price |
 Explore Scientific iEXOS-100-2 |
|
Check Latest Price |
 Sky-Watcher EQ6-R |
|
Check Latest Price |
 Celestron CGX |
|
Check Latest Price |
1. Sky-Watcher Star Adventurer 2i Pro Pack: the most proven tracker in the list
Sky-Watcher Star Adventurer 2i Pro Pack (S20512)
Weight: 7 lb
Dimensions: 13.9 x 9.6 x 6.3 in
Wi-Fi SAM Console control
Deluxe equatorial base
Pros
- Lightest complete tracking option here
- Multi-minute subframes once polar aligned
- Autoguider port included
- Wi-Fi smartphone control
Cons
- Steep polar alignment learning curve
- Included support is often too light
- Plastic SNAP plate feels flimsy
Of everything we looked at, this is the mount with the deepest owner history, and 609 reviews averaging 4.4 stars is a track record that is hard to argue with. The tracking head itself is small, about 7 pounds, and it clamps to a standard photographic tripod head rather than demanding a dedicated support. The deluxe equatorial base that ships in the pack is what turns a camera mount into an equatorial one: it sets the polar axis at your latitude so a single motor can hold the sky still.
Owners consistently report that once alignment is dialed in, this thing produces multi-minute exposures that stack cleanly. Control runs through the Sky-Watcher SAM Console app over built-in Wi-Fi, so there is no hand controller cable to snag in the dark, and there is an autoguider port for when you want longer subframes or tighter star shapes.
Our read matches the reviews. For wide-field Milky Way work, a 24mm lens on a full-frame body, and for the kind of nightly backyard sessions this mount is built around, it is genuinely enough hardware. The 4.4 rating is the highest combined with owner volume in this roundup, which is why it is our editor’s choice.
What the 2i Pro is genuinely good at
This is a camera mount, not a telescope mount, and pretending otherwise is the main mistake owners make. A DSLR or mirrorless body, a fast wide or moderate telephoto lens, and a solid tripod is the working combination, and within that envelope the tracking quality is more than enough for the deep sky targets beginners actually shoot first.
It also travels better than anything else here. At 7 pounds the head fits in a carry-on alongside a small tripod, which means a dark site two hours away is realistic rather than aspirational. The Wi-Fi app control removes one more failure point in the field, since you are not aligning a hand controller in gloves.
Where the 2i Pro falls short
Polar alignment is the steep part. The learning curve comes back in the reviews more than any other complaint, and it is a real cost for anyone who wants to start imaging the same night the box opens. Budget an evening with a wide-angle lens and a bright star before you point it at a galaxy.
The support matters as much as the head. Multiple reviews flag the included tripod or head as too light, and a plastic SNAP plate and battery cover are described as feeling flimsy. A rigid tripod is effectively required, and a few owners also report motor or quality-control issues with small non-replaceable parts. This is a camera-only platform, so it will not carry a telescope at any focal length.
2. iOptron SkyGuider Pro: the best-machined tracker for the money
iOptron SkyGuider Pro Camera Mount Full Package
Mount body: 2.2 lb
Payload: 11 lb balanced
AccuAlign illuminated polar scope
Battery: up to 20 hours
Pros
- All-metal body cuts vibration
- 11 lb balanced payload
- Built-in illuminated polar scope
- 20 hour internal battery
Cons
- Needs a separate rigid tripod
- Fine adjustment slow at long focal lengths
- Camera triggering depends on your camera or intervalometer
The 4.5 rating here is the highest in the roundup, and it comes from people who notice how the thing feels. The body is machined metal rather than plastic, and owners credit that with sharp, low-vibration results at longer subframe lengths than a plastic tracker of the same class usually delivers. The mount head itself is 2.2 pounds, though the full package listing is around 10 pounds once the base, polar scope, and case are included.
Payload is rated at up to 11 pounds when balanced, which is the most of any bare camera tracker here and gives real headroom for a fast refractor, a guide scope, and a camera. The integrated AccuAlign dark-field illuminated polar scope is the feature that saves you time in the dark, and the internal rechargeable battery runs up to 20 hours at 20 degrees C, which covers a full night without a power bank.
One long-term owner note worth repeating from the reviews: the RA clutch on this unit can become tightly locked after years of use and be genuinely difficult to release. If you are buying used, ask about it. New, this is the tracker we would hand to someone who wants to grow into a refractor later rather than staying on a camera.
Why the SkyGuider Pro suits beginners and small refractors
You get a mount that is stable, quiet, and accurate with a camera, plus enough rated payload to add a small refractor without immediately outgrowing it. The 11-pound figure is well above what a typical camera-only rig needs, so the headroom is real rather than nominal.
Alignment is the easiest workflow in this roundup. The illuminated polar scope and the alt-az adjustable base, which covers minus 30 to 65 degrees of latitude with plus or minus 5 degrees of azimuth, mean you can set up quickly at a site you have never visited before. That is a big deal for people who shoot from more than one location.
What you give up with the SkyGuider Pro
It ships without a rigid support, and the lightweight tripod most buyers pair with it is the limiting factor in real sessions. Treat the tripod as part of the purchase rather than an accessory, or you will lose the vibration advantage the metal body was supposed to give you.
Adjustment is optimized for wide and moderate fields. Reviewers note that the fine adjustment becomes slow at very long focal lengths, and camera triggering still depends on your camera’s own interval setting or an external intervalometer rather than the mount driving the shutter. It is still a camera platform, so an alt-az mode is not a substitute for a full equatorial head when a telescope goes on top.
3. Celestron Advanced VX: the dependable mid-size German equatorial
Celestron Advanced VX Computerized German Equatorial Mount – 30lb Payload
Payload: 30 lb
Latitude: 7-77 degrees
Kit weight: 47 lb
NexStar+ 40,000 objects
Pros
- 2 inch stainless steel tripod
- 30 lb payload
- PPEC and All-Star alignment
- Multiple tracking rates
Cons
- Roughly 47-50 lb total weight
- Some controller and motor complaints
- Older hand controller interface
This is the first mount on our list that is a genuine German equatorial for telescopes rather than a camera tracker, and that changes what it can do. Thirty pounds of rated payload covers an 80mm refractor comfortably, a 7-inch Newtonian, or a small SCT, and the 2-inch stainless steel tripod is the most rigid support of any mount in this roundup. That tripod alone is the reason many imagers never see the vibration the lighter platforms show.
Polar alignment gets two independent routes. All-Star Polar Alignment uses star measurements taken across the sky to correct alignment without a polar scope, SkyAlign is the faster two-star option, and PPEC applies a learned periodic error correction to repeatable pointing. Latitude adjustment spans 7 to 77 degrees, so it works nearly everywhere, and sidereal, solar, and lunar rates with EQ North and EQ South modes cover the usual cases.
The NexStar+ hand controller carries a 40,000-object database, and the dual saddle accepts CG-5, CGE-style, or Vixen dovetails, which means most of your existing tube will fit. About 71 percent of reviews are five-star, and the criticism is concentrated in two places: total weight and a small share of electronics complaints.
Where the Advanced VX earns its rank
Thirty pounds of payload means this is the first mount in the list where a telescope is a normal choice instead of an experiment. Reviewers pair it with mid-size refractors and Newtonians and report that the wide latitude range makes alignment straightforward in very different locations.
It is also the least fiddly option for anyone who wants repeatable results across many nights. PPEC plus All-Star means the mount learns rather than being re-tuned every session, and the steel tripod does not need a pier or a damping strategy to stay steady on a patio.
What the Advanced VX costs you
Weight is the deal breaker for mobile imagers. The kit is listed around 47 to 50 pounds, and that is a two-person job for a rooftop or a field setup. If you ever need to move to a dark site, this is not the mount.
The electronics deserve a fair mention too. Owners report occasional hand controller, motor, and cable reliability problems, and roughly 8 percent of reviews are one-star. The NexStar+ interface is also dated next to app-driven mounts, which matters if your whole workflow runs from a phone or from a stacking hub. Budget for a replacement controller as a possible future line item.

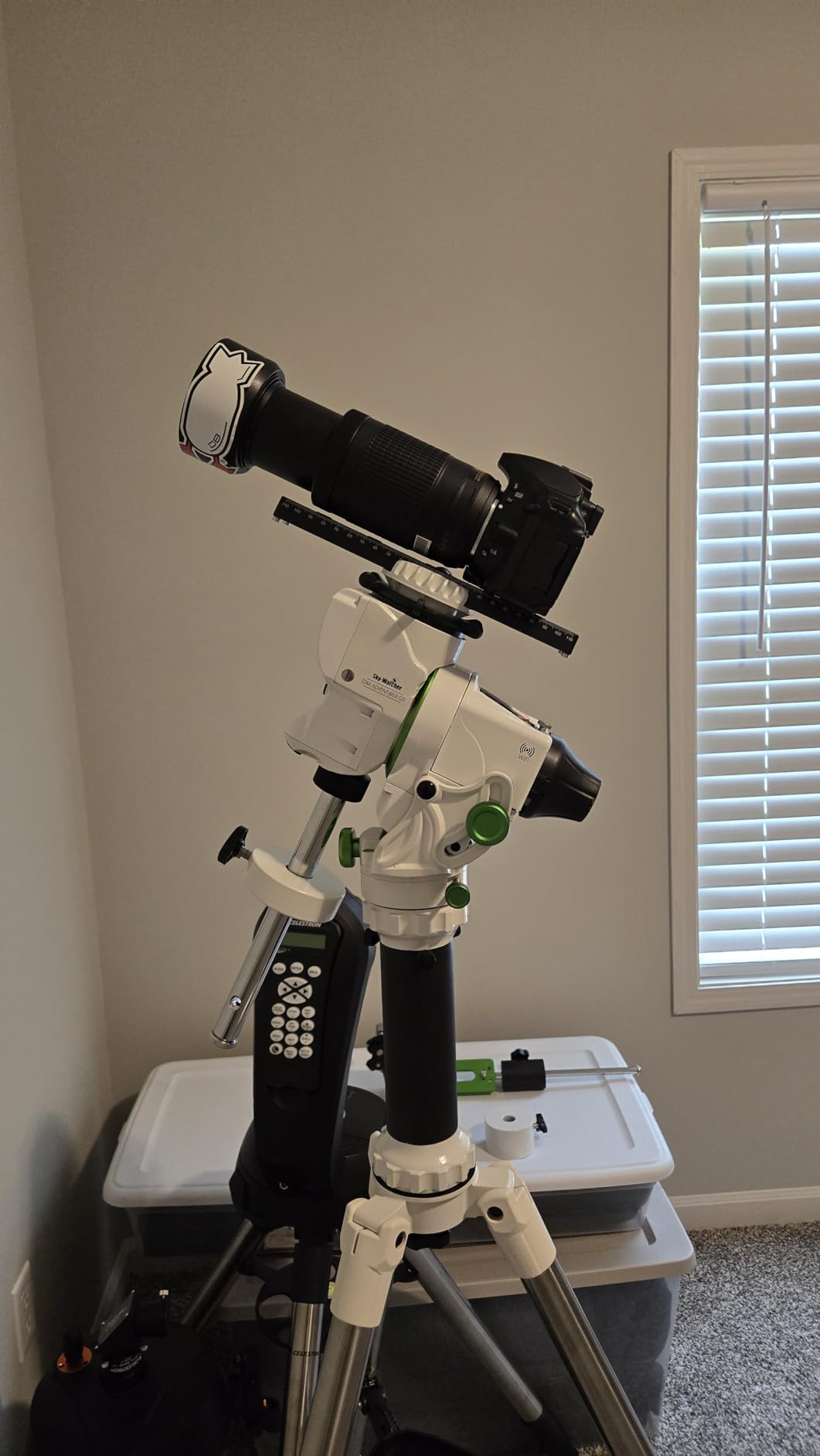

4. Sky-Watcher Star Adventurer GTi Kit: everything in one box
Sky Watcher Sky-Watcher Star Adventurer GTI Mount Kit with Counterweight, CW bar, Tripod, and Pier Extension – Full GoTo EQ Tracking Mount for Portable and Lightweight Astrophotography
Tripod and pier extension
Counterweight bar with 5 lb weight
Illuminated polar scope
Wi-Fi GoTo
Pros
- Complete kit with tripod and pier
- Counterweight enables true EQ balance
- Built-in illuminated polar scope
- Wi-Fi GoTo with no hand controller
Cons
- Heavier than a bare tracker at 26 lb
- App control needs a smartphone
- Occasional GoTo pointing errors
Almost every complaint about entry-level tracking mounts is a missing part. You get a mount head with no tripod, or a tripod with no way to align, or a tracker that needs a phone app you have to buy separately. The GTi kit closes those gaps: the box contains the GoTo head, a tripod with a pier extension, a counterweight bar with a 5-pound weight, and a built-in illuminated polar scope with illuminator.
That counterweight is the detail that makes this different from a bare camera tracker. With the bar and weight, you can balance a heavier front-heavy payload in true equatorial fashion rather than relying on friction alone. Combined with Wi-Fi GoTo and a two-year limited warranty, it is the most complete package in this roundup, which is why we tagged it best value rather than best overall.
About 72 percent of reviews are five-star. Buyers like the completeness of the bundle and the counterweight-assisted tracking, while a minority report app quirks and occasional GoTo pointing errors that require re-alignment before the session starts.
Why the GTi kit is the easiest first rig
There is nothing to source separately. A first-time imager can unpack one box, mount the head on the included tripod and pier extension, level, balance with the supplied weight, and start aligning with the built-in illuminated polar scope. That removes the most common early-session failure, which is a tracker that shakes on an unsupported head.
The built-in Wi-Fi GoTo also means you slew to targets from a phone instead of hand controller buttons in the dark. For someone who wants to spend their first hours learning framing and focus rather than decoding motor cables, that is worth a lot.
Where the GTi kit is not the answer
It is a 26-pound complete unit, and that is the weight of a real tripod rather than a photo head. Compared with a 7-pound bare tracker, the GTi is noticeably less portable, so it suits a fixed backyard or observatory site better than a travel rig.
App-driven control is a real dependency. You need a smartphone and a stable Wi-Fi link, and a minority of owners report GoTo slews that land off target or run slow, which means re-aligning mid-session. The mount is also rated for camera-class payloads, not the 8-inch-class tubes the heavier mounts below handle.

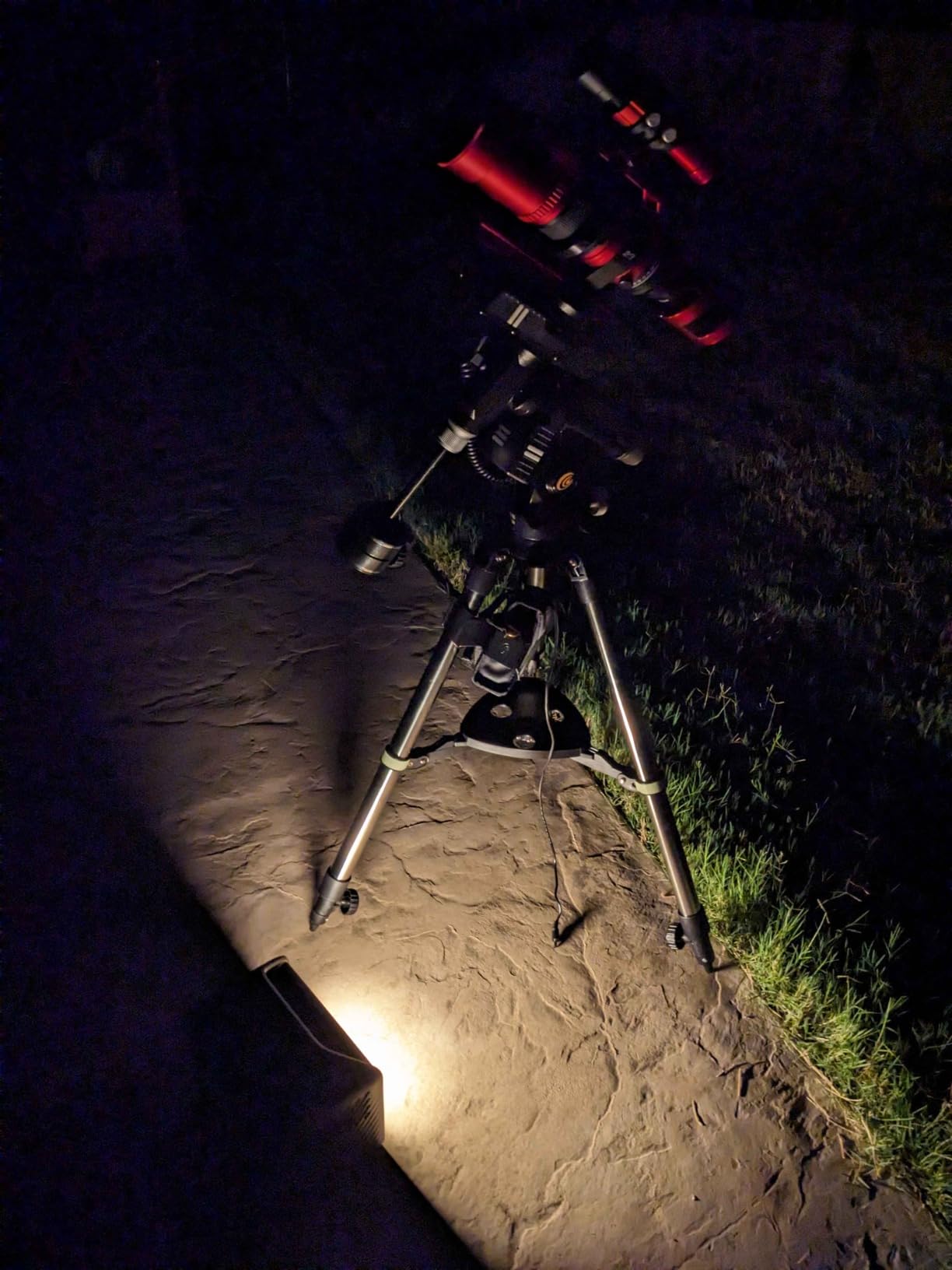

5. Explore Scientific iEXOS-100-2 PMC-Eight: quiet hardware held back by software
iEXOS-100-2 PMC-Eight Equatorial Tracker System Tripod and Mount for Astrophotography with WiFi and Bluetooth Compatible
Control: PMC-Eight with 8 CPUs
Clutched dual-axis worm gears
ExploreStars app
Wi-Fi and Bluetooth
Pros
- Quiet clutch-assisted worm gear tracking
- Fast PMC-Eight GoTo response
- Light and easy to transport
- Works with third-party controllers
Cons
- ExploreStars app criticized for stability
- Minimal azimuth adjustment out of the box
- Polar scope sold separately
This is the only mount in the roundup rated below 4.0, at 3.9 across 84 reviews, and the reason is almost entirely software rather than mechanics. The PMC-Eight control system runs on eight independently operating CPUs, and on the hardware side the mount is genuinely well liked: owners report quiet operation, clutched dual-axis worm gears with belt-driven precision stepper motors, and smooth clutch-assisted balancing on both axes.
Owners also report clean three-to-five-minute guided subframes with small optical tubes, and the mount responds well to third-party controllers including ASIAIR, NINA, PHD2, and Ekos. If you already run your rig from one of those, the 3.9 rating is a complaint about the stock app, not about the tracking.
The split rating distribution tells the story. Thirteen percent one-star and thirteen percent three-star reviews sit alongside a large positive core, and the criticism concentrates on ExploreStars stability, user interface, and connection dropouts, plus a polar alignment sight hole through the RA axis that gives limited azimuth adjustment out of the box unless you buy an adapter.
What the iEXOS-100-2 does well
Tracking mechanics are the surprise here. Worm gears with a clutch on each axis are a design normally seen on mounts well above this class, and they make balancing fast and repeatable. Quiet slew also means you are less likely to disturb a sensitive imaging train, and the light weight is easy on the car and on your back.
Connectivity is open. Wi-Fi and Bluetooth plus support for third-party stacking software means this mount is not a walled garden, which is exactly what you want if you plan to grow into a more serious rig and change your control software along the way.
What to watch out for with the iEXOS
Budget for the polar scope separately, and read the documentation carefully because owners report it is poorly explained. The alignment sight hole through the RA axis gives you altitude control but very little azimuth, so a proper adapter is close to mandatory for good results, and that adapter is an extra cost on a budget purchase.
Payload headroom is limited, so keep the optical tube small. This is a mount for a short refractor or a small camera rig, not for a long tube or an off-axis guider stack. The ExploreStars app and firmware are the main reason for the sub-4.0 rating, and customer support draws similar criticism, so only buy it if you are prepared to drive it from other software.
6. Sky-Watcher EQ6-R: the reference German equatorial for heavier tubes
Sky-Watcher EQ6-R – Fully Computerized GoTo German Equatorial Telescope Mount – Belt-driven, Motorized, Computerized Hand Controller with 42,900+ Celestial Object Database
Payload: 44 lb
44 lb head,about 75 lb assembled
Belt-driven stepper motors
SynScan 42,900 objects
Pros
- Sub-arcsecond guiding in many reports
- 44 lb payload
- Whisper-quiet belt-driven slewing
- PPEC and encoders
- Works with ASCOM and NINA
Cons
- About 75 lb assembled
- Thick factory grease causes stiction until cleaned
- Alt-az screws awkward to reach
- Cold-weather hand controller issues
The EQ6-R is the mount in this roundup that serious imagers actually argue about, and the argument is about the fact that it needs a fixed site. Forty-four pounds of rated payload on an all-metal body with belt-driven stepper motors is real mid-payload capacity, and the built-in illuminated polar finderscope plus a 42,000-plus object SynScan database means the mount can be operated without any computer at all.
Guiding results are where the reviews separate it from everything cheaper on this list. Owners report sub-arcsecond guided error with a guide camera and flat PHD2 graphs, and the combination of a built-in encoder with PPEC means a learned periodic error correction can be saved and reloaded. The 2-inch tripod legs and the integrated carry handle make the parts movable even if the whole thing is not.
Long-term owners report the EQ6-R running without issues across winter conditions around minus 15 degrees C and through summer, which is the kind of durability signal that no spec sheet provides. The mix is 13 percent one-star reviews, and those are largely about incomplete deliveries of the tripod box, not about the mount failing.
Why the EQ6-R handles long focal lengths
Payload and rigidity together. Forty-four pounds of rated capacity means an 8-inch class optical tube, guidescope, and camera can sit on it without the mount working near its limit, and the 2-inch steel tripod is heavy enough that vibration is rarely the limiting factor.
Guiding stability is the other half. Sub-arcsecond reported results mean faint, small galaxies at long focal length stay round, and PPEC plus encoder support means the same error correction is repeatable night after night. Compatibility with EQMOD, ASCOM, NINA, PHD2, and ASIAIR means it fits into whatever workflow you already have rather than forcing a change.
The two problems with the EQ6-R
Weight is unavoidable. The head is 44 pounds and the assembled rig is commonly quoted around 75 pounds including the two 11-pound counterweights, so a rooftop or remote setup is a two-person job. The alt-az adjustment screws at the base are also reported as awkward to reach once the head is loaded.
Expect some setup work. Factory grease is thick and adds stiction that shows up as poor tracking until the mount is cleaned and re-lubricated, and the SynScan hand controller LCD can fail in very cold conditions, which is a specific concern for winter imagers. If you tolerate a maintenance step and have a permanent site, this is the strongest long-focal-length option here.
7. Celestron CGX: the heaviest payload and the longest subframes
Celestron CGX Computerized German Equatorial Mount & Tripod, 55lb Payload
Payload: 55 lb
Item weight: 108 lb
High-torque servo belt drive
NexStar+ 40,000 objects
Pros
- Largest payload in this roundup
- Solid metal build stays smooth when loaded
- Internal cable management
- Pointing models and All-Star Polar Align
Cons
- 108 lb item weight
- Polar scope can restrict Dec axis range
- Intermittent RA drive and controller reports
- Supplied tripod less rigid than L-series
The CGX is the only mount here rated for 55 pounds, and owners put that number to work with 8-inch to 10-inch optical tubes. High-torque servo motors driving through a belt give it the ability to track long subframes: owners report 30-minute exposures with flat PHD2 and Prism graphs, which is the longest subframe figure any mount in this roundup produces.
Construction is the other strength. The metal body stays solid under load, smooth alt-az positioning holds up when the head is fully loaded, and internal cable routing keeps the astrophotography rig clean, which is more than most mounts at this class bother with. Pointing models plus All-Star Polar Align give accurate GoTo without manual polar scope alignment, and the NexStar+ controller adds guided tours and custom object filters to a 40,000-object database.
Twenty reviews is a small sample, but they are detailed ones. About 71 percent are five-star and 15 percent are one-star, and the complaints are specific: the optional polar scope can obstruct declination axis range and physically collide with the mount, some units report intermittent RA drive or hand controller failures needing repair, and the supplied tripod is not as rigid as the L-series variant.
What the CGX is built for
Long focal lengths on long subframes. If your target list is small galaxies and planetary nebulae, and you have the counterweighting to balance a big tube, the 55-pound rating and the reported 30-minute subs are the most capable combination in this roundup. The pointing model support means you re-solve quickly and lose less time between targets.
Observatory-style installation suits it. Internal cabling and included control software for remote astroimaging mean the head can stay outside under a cover with a single cable run, and long-term owners report the mount tracking well in continuous multi-night use.
Why the CGX is not our first recommendation
Portability is effectively zero. The item weight is listed at 108 pounds, and that is before you add a large optical tube, so this mount lives on a pier or a permanent tripod at a fixed site. If you do not have one, this is not a starting point.
Buy carefully and plan the polar scope. The scope is optional, and when fitted it can restrict declination axis travel and physically collide with the head, which is a real problem during long imaging sessions that need the full axis range. Intermittent electronics failures appear in the reviews, belts and gears can wear after a few years, and vibration on hard surfaces is better handled with damping feet or a stiffer pier than with the supplied tripod.
Equatorial vs. Alt-Az vs. Star Tracker
An equatorial mount has two axes: a polar axis, also called the right ascension axis, which you tilt to your latitude and point at the celestial pole, and a declination axis mounted perpendicular to it. The polar axis turns at the sidereal rate, which is the rate the sky appears to move, and that single rotating axis is what keeps stars fixed during a long exposure.
An alt-az mount points with a horizontal axis and a vertical axis instead. It tracks fine, but the field rotates around the target during an exposure, so stars smear into trails at the frame edges unless you use an expensive field rotator. That is why alt-az is a visual mount and a planetary-imaging mount rather than a deep-sky one.
A star tracker is a small equatorial mount. The name refers to the format rather than the mount type, because a tracker like the Star Adventurer 2i or the SkyGuider Pro uses exactly the same single-polar-axis tracking principle, just with a small payload and a camera plate instead of a dovetail saddle. When someone says a star tracker is simpler than an equatorial mount, they usually mean simpler to carry, not simpler in principle.
You need an equatorial mount for any deep-sky exposure longer than a few seconds. Once you are past that point, the Earth’s rotation becomes visible as star trailing, and a tracking equatorial base is the cheapest way to remove it. The practical question is not whether you need one, but which class of equatorial mount your payload and your site can support.
How to Choose an Equatorial Mount for Deep Sky Imaging
Start with your real payload, not the rated payload. Add your optical tube, camera, guide scope, guide camera, filter wheel, adapters, and cables, then multiply by 1.5 for imaging headroom. Then stay at 50 to 70 percent of the rated capacity, because rated numbers assume perfect balance and calm conditions, and running at the limit is where tracking errors and vibration show up first.
A worked example helps. A small refractor, a cooled camera, a guide scope, a guide camera, and adapters can reach roughly 20 pounds assembled, which means you want at least a 30-pound rated mount. A 10-inch Newtonian with a heavy camera can pass 50 pounds, which puts it in a different class entirely. If you want a sensible starting telescope rather than a mount decision first, our guide to the best telescopes for deep space viewing covers the optical tubes that pair well with each mount class here.
Focal length decides how much guiding you need, because guiding tolerance scales with image scale. At a short focal length, unguided subframes of a few minutes can look acceptable. At long focal lengths on small galaxies, autoguiding stops being optional, and a mount that guides well matters more than one that tracks perfectly unguided. This is also why the sub-arcsecond guiding results reported for the EQ6-R and the 30-minute subframes reported for the CGX matter more than any raw tracking number.
Understand the difference between periodic error and guided RMS error. Periodic error is the mount’s uncorrected tracking wobble, and manufacturers rarely publish a meaningful figure for it any more, so treat any headline number with suspicion. Guided RMS error is what your guiding software actually achieves after corrections, and that is the number that determines whether stars are round or oval. Two mounts with similar paper specifications can end up far apart once they are guiding on a real tripod with a real payload.
Give the head and the tripod equal weight in your decision. A lightweight tracking head on a flimsy support vibrates, and no amount of guiding fixes a shaking platform. Two mounts in this roundup ship with no rigid support at all, so factor the tripod into the real weight and the real cost rather than treating it as an accessory.
Check the software ecosystem before you buy. Mounts that support ASCOM, EQMOD, PHD2, NINA, and ASIAIR drop into an existing stacking workflow, while a few rely on a single phone app that reviewers do not rate highly. The iEXOS-100-2 is the clearest example in this list: its hardware is well liked and its stock app is the reason it sits below a 4.0 rating, which is exactly why controller compatibility belongs in the buying decision.
Finally, think about where you will actually shoot. A 7-pound tracker and a 108-pound mount serve the same night sky, but only one of them survives being moved to a dark site. If you will shoot from home with a permanent setup, weight stops being a factor and payload stops being negotiable. If you will travel, the reverse is true, and the light camera trackers at the top of this list are the right tools.
Frequently Asked Questions
Is an equatorial mount the same as a star tracker?
A star tracker is a small equatorial mount. It uses the same single polar axis to track the sky at the sidereal rate, but it carries a camera on a small plate rather than a telescope on a dovetail saddle. Star trackers are simpler to carry, while full equatorial mounts for telescopes have far higher payload ratings and accept counterweights.
Do I need an equatorial mount for astrophotography?
Yes, for any deep-sky exposure longer than a few seconds. Without tracking, the Earth’s rotation smears stars into trails during a long exposure. An equatorial mount cancels that rotation with one motor axis, which is why it is the standard base for deep-sky imaging. Alt-az mounts can track but rotate the field, causing star trailing at the frame edges.
What are the differences between an equatorial mount and an azimuth mount?
An equatorial mount has one axis aligned with the celestial pole and a second declination axis perpendicular to it, so a single motor tracks the sky without rotating the field. An alt-az mount uses a horizontal and a vertical axis. It slews and tracks well enough for visual observing and planetary imaging, but field rotation smears stars at the frame edges during long exposures without a field rotator.
What is a good equatorial mount for a telescope?
Match the mount class to the total weight of your imaging train. A small refractor with a camera and guide scope needs a 30 lb rated mount, a 7-inch Newtonian needs roughly 44 lb, and a 10-inch tube needs a 55 lb class mount. Stay at 50 to 70 percent of rated capacity, and pair the mount with a rigid tripod or a pier.
How accurate are equatorial mounts?
Raw accuracy depends heavily on load, balance, alignment, and the support underneath, so published numbers rarely transfer to your setup. What matters in practice is guided RMS error, and mounts like the Sky-Watcher EQ6-R report sub-arcsecond results while the Celestron CGX is reported to hold 30-minute subframes. A rigid tripod and clean polar alignment matter more than any spec.
Do I need autoguiding with an equatorial mount?
Not always. At short focal lengths, unguided subframes of a few minutes can look acceptable on a well-tuned mount. At long focal lengths on small galaxies, autoguiding becomes the difference between round and oval stars, and it is what lets you push subframes to 10 minutes or longer. Belt-driven and worm-gear mounts with encoders and PPEC benefit from guiding most.
The Verdict on Equatorial Mounts for Deep Sky Imaging
For most people, the Sky-Watcher Star Adventurer 2i Pro is the right first answer among the best equatorial mounts for deep sky imaging: it is light, proven across 609 reviews, and accurate enough once you master alignment. The iOptron SkyGuider Pro is the better-made tracker if you want to grow into a refractor, and the Celestron Advanced VX is where telescope ownership starts to make sense.
Once you are committed to a fixed site and long focal lengths, move up to the Sky-Watcher EQ6-R for 44 pounds of payload and reported sub-arcsecond guiding, or the Celestron CGX if you need 55 pounds and very long subframes. Whatever you pick, buy the tripod at the same time, stay near 50 to 70 percent of rated capacity, and give yourself a clear evening to get polar alignment right before the first real target.
