The Fluke 117 is the best multimeter for electronics hobbyists we tested in 2026, and for most people building circuit boards, breadboards and microcontroller projects it is the meter to buy first. It auto-detects AC and DC, measures true RMS, and adds low-impedance mode, which is the single feature that separates a professional meter from a cheap one.
That said, the Fluke 117 is not the right answer for everyone. A hobbyist who only checks continuity and battery voltage has no use for ghost-voltage rejection, and a maker working on 3.3V logic needs resolution rather than safety certification. So we put ten meters side by side, from a simple 2000-count unit to a Fluke, and picked the right one for each kind of bench.
Everything below is based on the measurement functions a hobbyist actually uses: voltage, continuity, resistance and diode drops. We also weighed the things that quietly ruin a meter in a small workshop, namely flimsy test leads, unlit backlights and unlabelled input jacks. If you want a broader look at test gear, our full multimeter roundup covers the categories this list skips.
Table of Contents
Top 3 Best Multimeters for Electronics Hobbyists (October 2026)
Fluke 117
- VoltAlert non-contact voltage detection
- AutoVolt AC/DC auto-selection
- Low impedance mode for ghost voltage
- True RMS with min/max/average
AstroAI 6000 Counts
- True RMS AC voltage and current
- 6000-count auto-ranging display
- Capacitance frequency duty cycle temperature
- Double ceramic fuse protection
Crenova MS8233D
- True RMS with 6000 counts
- Non-contact voltage and live-wire detection
- Capacitance frequency and duty cycle
- Carry bag and alligator clips included
All 10 Multimeters Compared Side by Side in 2026
| Product | Specifications | Action |
|---|---|---|
| Fluke 117 |
|
Check Latest Price |
| AstroAI 6000 Counts |
|
Check Latest Price |
| Crenova MS8233D |
|
Check Latest Price |
 Klein Tools MM420 |
|
Check Latest Price |
 Fluke 17B+ |
|
Check Latest Price |
 Klein Tools MM325 |
|
Check Latest Price |
 Fluke 15B+ |
|
Check Latest Price |
 FNIRSI DMT-99 |
|
Check Latest Price |
 AstroAI 2000 Counts |
|
Check Latest Price |
 AstroAI DM130B |
|
Check Latest Price |
1. Fluke 117 – The Best Multimeter for Electronics Hobbyists Overall
Fluke 117 Digital Multimeter, Non-Contact AC Voltage Detection, Measures Resistance/Continuity/Frequency/Capacitance/Min Max Average, Automatic AC/DC Selection, Low Impedance Mode
True RMS
VoltAlert NCV detection
Low-Z mode
AutoVolt AC/DC select
3-year warranty
Pros
- Low impedance mode separates ghost voltage from real voltage
- VoltAlert speeds up live-wire checks
- AutoVolt and auto-ranging remove mode hunting
- True RMS accurate on non-linear loads
- Three-year warranty and long battery life
Cons
- No milliamp or microamp ranges so an economical current clamp will not fit
- No temperature measurement
- Supplied probes feel cheap and tangle
Six months of bench work put the Fluke 117 ahead of everything else we tried, and it is still the one I reach for first. At 689 g it is the heaviest meter in this group, but the weight reads as solid rather than bulky, and the large white backlit display stays legible over a cluttered soldering bench.
What separates it from a budget meter is AutoVolt and low-impedance mode. You probe a circuit, and the meter decides whether it is AC or DC on its own, then the LoZ mode draws enough load to collapse the phantom voltage that makes a disconnected wire look live. On a board with long unpowered traces, that difference saves real time.
VoltAlert is the other half of the value. Scanning a bundle of wires with the probe tip a centimetre away flags live conductors before you commit a probe to metal, which is genuinely useful when you are tracing an unfamiliar harness behind a breadboard.
The spec sheet covers resistance, continuity, frequency, capacitance and min/max/average recording, and the DC millivolt range resolves to 0.1 mV at 600 mV full scale. That resolution is what makes it a good meter for the low-voltage side of a hobby bench rather than just a household tool.
What the Fluke 117 gets right for a hobbyist bench
Ghost voltage is the reason to buy it. Cheap meters routinely read several volts across a wire that is not connected to anything, because the input is too high-impedance and picks up stray coupling. LoZ mode loads the line down and shows you the difference between induced and real voltage.
Measurement reliability holds up over time, too. Owners report batteries lasting about 400 hours without the backlight, and the three-year warranty is longer than anything else on this list by a wide margin.
Where the Fluke 117 falls short
There are no milliamp or microamp ranges. That is a genuine architectural limitation rather than a cost-cutting one, and it means adding a current clamp later requires Fluke’s i410, which pushes the real spend well past the meter itself.
Temperature measurement is missing entirely, which is the first thing makers ask about when checking a linear regulator or a hot driver stage. And the supplied probes are the part reviewers complain about most, a recurring note that the meter is fine but the leads need replacing.
2. AstroAI 6000-Count True RMS – Best Value for Electronics Hobbyists
AstroAI Digital Multimeter, True RMS 6000 Counts Auto-Ranging Volt Meter for Automotive & Home Electrical Troubleshooting, AC/DC Voltage Current Resistance Continuity Capacitance Temperature Tester
True RMS AC/6000 counts
Capacitance frequency duty cycle
Temperature probe
1000V DC max
Pros
- True RMS on both AC voltage and AC current at this price
- 6000-count auto-ranging removes range guessing
- Capacitance frequency duty cycle and temperature in one meter
- Large backlit screen with rear kickstand
- Double ceramic fuse protection
- Up to 1000V DC maximum operating voltage
Cons
- Frequency counter claim is far above what it delivers
- hFE transistor socket is wired C-B-E so TO-220 testing is awkward
- Backlight shuts off quickly and cannot be set to stay on
If you want true RMS and a feature list that would cost three times as much elsewhere, this is the meter we recommend most often. Ham-radio hobbyists have cross-checked its AC and DC readings against an Amprobe AM-570 and found them to agree, which is a stronger endorsement than any star rating.
Auto-ranging across 6000 counts means you never pick a range yourself. That removes the single failure mode beginners hit most: guessing a range, reading a nonsense number, and blaming the circuit instead of the dial.
The extras are the surprise. Capacitance, frequency, duty cycle and a temperature probe all live on one dial, so you can check a bulk capacitor or a failing regulator without borrowing another instrument. At 492 g it is heavier than most rivals, and the magnetic back holds it against a chassis while you probe.
Double ceramic fuses, rated 400 mA and 10A at 600V, sit behind the battery door, and the spec sheet claims 1000V DC as a maximum operating voltage. Several owners report retiring an older Fluke in favour of this one for everyday work.
Why hobbyists end up recommending it
The forum consensus is remarkably consistent. Across hobby electronics threads this is the most-recommended budget meter, described as punching above its weight, and the reason is simple: at 6000 counts with true RMS, it does not ask you to compromise between price and accuracy.
The temperature probe in particular gets called more useful than expected for electronics work, because it turns a case-temperature check into a number you can record.
Specs to discount before you buy
The frequency counter is the weak spot. The listed 60MHz figure is really closer to a usable 16MHz, and it wants close to 5V peak-to-peak to lock onto a reading at all, so treat it as a coarse indicator rather than a counter.
The hFE transistor socket is wired C-B-E, which makes testing a TO-220 package awkward without bending a leg. Backlight behaviour is also imperfect: it times out and there is no setting to hold it on.
3. Crenova MS8233D – Best Budget Multimeter with True RMS
Crenova MS8233D Multimeter TRMS 6000 Counts Auto-Ranging Live Wire NCV
True RMS 6000 counts
NCV live-wire detection
Capacitance frequency duty cycle
IEC61010-1 CAT III 600V
Pros
- True RMS with 6000 counts at a low price
- Carry bag alligator clips and batteries in the box
- Switchable manual and auto ranging
- Non-contact voltage detection with buzzer and flashing light
- Max/min and data hold help hunt intermittent faults
Cons
- Only a one-year warranty
- Carrying case is basic plastic rather than padded
- Backlit screen is harder to read in bright conditions
The Crenova MS8233D is the pick when a complete kit matters more than brand recognition. Two AAA batteries, a carry bag, test leads and alligator clips come in the box, and the alligator clips solve the three-hands problem that every breadboard session eventually hits.
Underneath it is a 6000-count true RMS meter with AC and DC current, capacitance, frequency, duty cycle, continuity and diode functions. The rubber holster adds bulk at 0.55 kg, but it is the price you pay for IEC61010-1 CAT III 600V certification.
Unlike most meters at this level, the ranging is switchable between manual and auto. Bench work on a known circuit goes faster in manual mode, and the meter stays usable if the auto-ranging logic ever misreads a signal.
Non-contact voltage detection with both an audible buzzer and a flashing light is the feature owners single out when explaining why this beats similarly priced rivals. Max/min hold and data hold make it a practical tool for chasing intermittent faults.
Where it fits on a hobbyist bench
Switch-mode power supplies, LED drivers and dimmers push non-sinusoidal current through a circuit, and average-sensing meters read low on those. True RMS on AC current is unusual down at this price and makes the meter useful well beyond checking a battery.
Three samples per second is fast enough for steady-state bench work, though it is not the meter you would reach for watching a switching waveform.
What to watch out for
The warranty is one year, which is the baseline rather than a selling point. Against a meter with a three-year warranty, that difference matters if you expect to keep this one for a decade.
The case is basic moulded plastic rather than a padded bag, and the insulated rubber holster makes the meter wider than bare-bones rivals. In direct sunlight the backlit display is also noticeably harder to read.

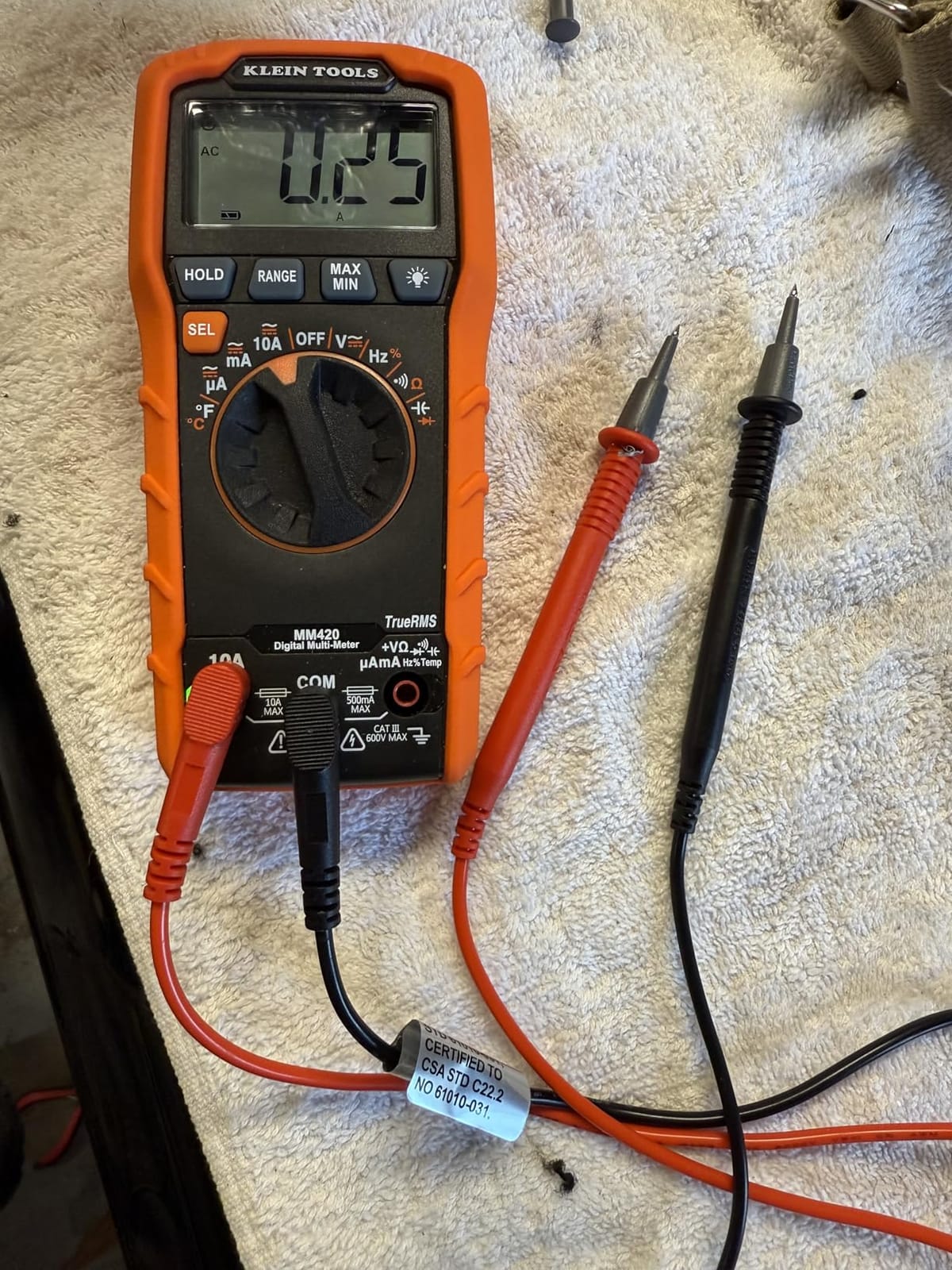

4. Klein Tools MM420 – Best for Beginners Who Want Auto-Ranging
Klein Tools MM420 Digital Multimeter, Auto-Ranging TRMS Multimeter, 600V AC/DC Voltage, 10A AC/DC Current, 50 MOhms Resistance
Auto-ranging True RMS
600V AC/DC
Temperature with thermocouple
Rated to a 6.6 foot drop
Pros
- Auto-ranging plus True RMS gives faster trustworthy readings
- Most functions of any meter in this group
- Lead-alert LEDs remove jack-selection guesswork

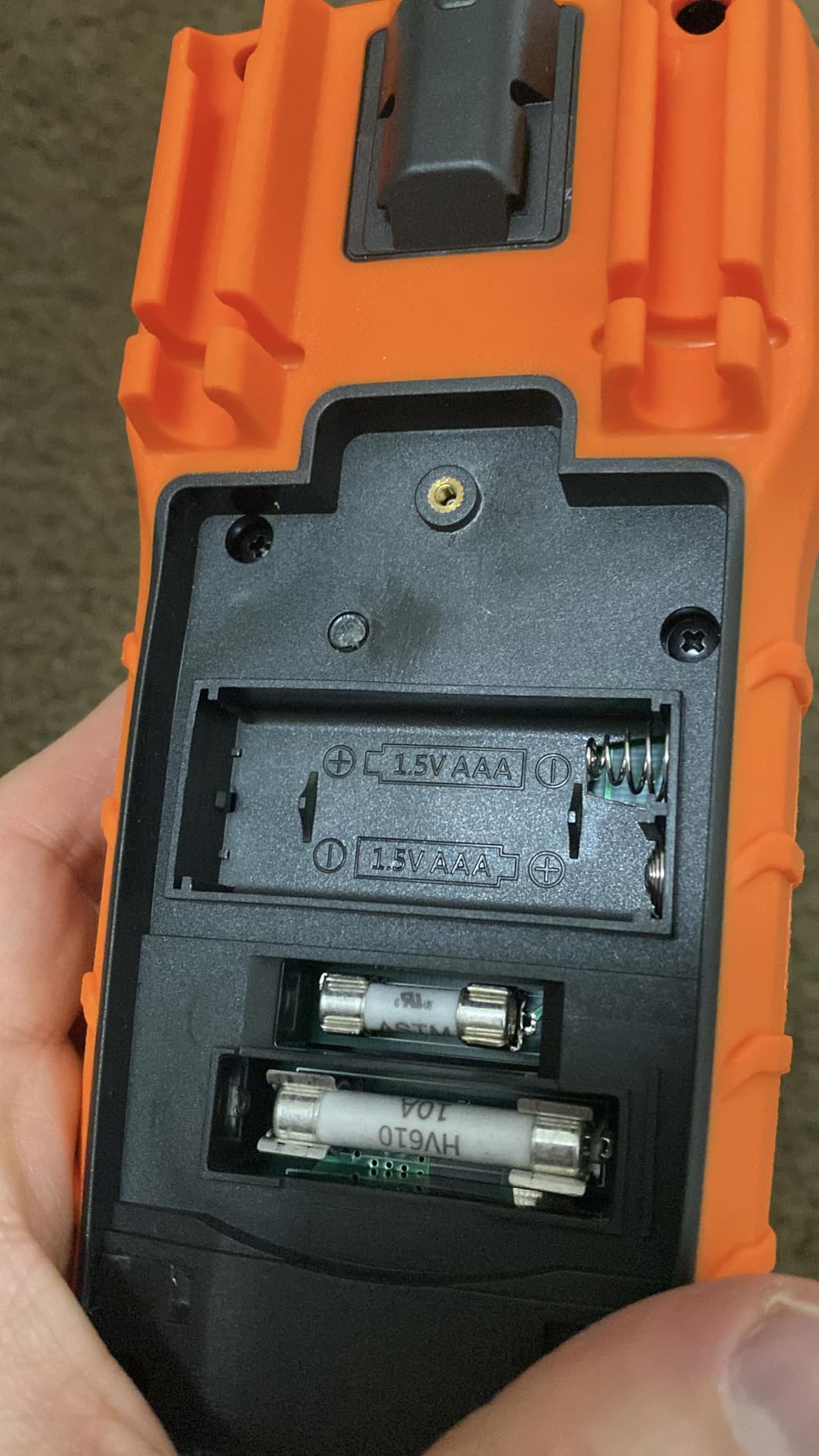

- Ceramic fuses accessible from the battery compartment
- Rated to survive a 6.6 foot drop
Cons
- Rated to 600V so not suited to high-voltage bench work
- Function markings are symbols rather than words
- Backlight times out and cannot be set to stay on
The Klein MM420 is the meter we tell beginners to buy. Auto-ranging handles the dial so a beginner never has to think about it, and the lead-alert LEDs at the input jacks light up when the probes are in the wrong sockets, which prevents the most common beginner mistake before it happens.
Function coverage is the widest here: AC and DC voltage to 600V, 10A AC and DC current, 50 megohm resistance, capacitance, frequency, duty cycle, diode, continuity and temperature through the included thermocouple.
There is no need to move a lead between jacks for small current measurements, a small design decision that removes a whole category of confusion. The ceramic fuses are reachable from the battery compartment, so a blown input fuse is a two-minute fix rather than a trip to a repair shop.
It is also built like a tool. Klein rates it to survive a 6.6-foot drop, and the dial and buttons have the positive feel you want from something that gets knocked off a bench regularly.
Why it suits a first serious bench
Combining auto-ranging with true RMS means the readings on a dimmer or an LED driver are trustworthy rather than roughly indicative, which is rare below the professional tier. You can move from a 5V breadboard to a mains-frequency circuit without changing instruments.
The included thermocouple with lead-alert protection makes it a genuine all-round bench meter rather than a starter toy, and owners describe it as a buy-once tool.
Where it will frustrate you
The dial uses symbols rather than words, and reviewers with poor eyesight find some of them unclear. One voltage position covers AC and DC and defaults to AC, so a DC reading needs an extra keypress.
The 600V ceiling rules it out for high-voltage bench work, the backlight times out with no option to hold it on, and the battery compartment needs a screwdriver to open. Some units also arrive without the described carrying case.

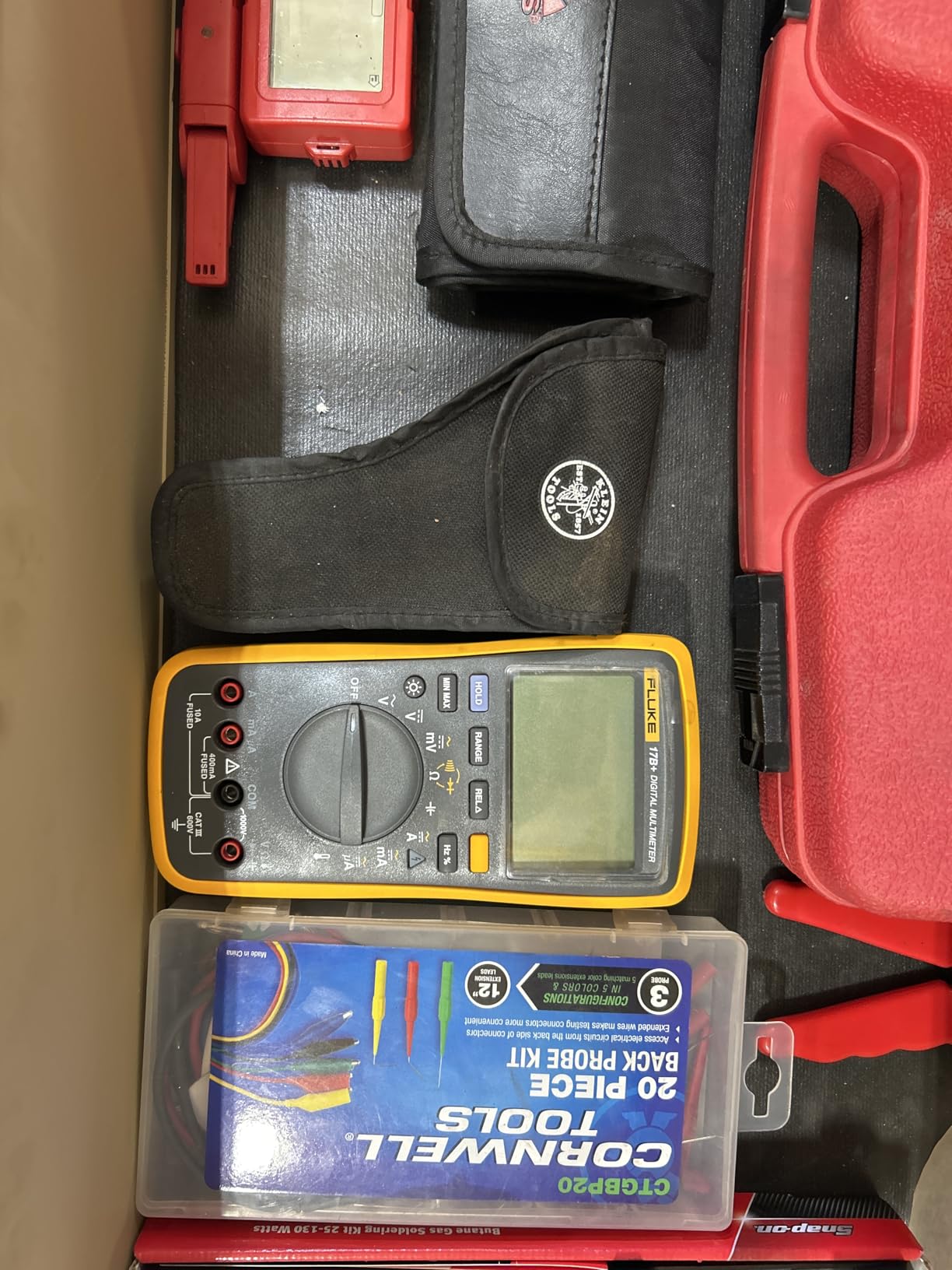

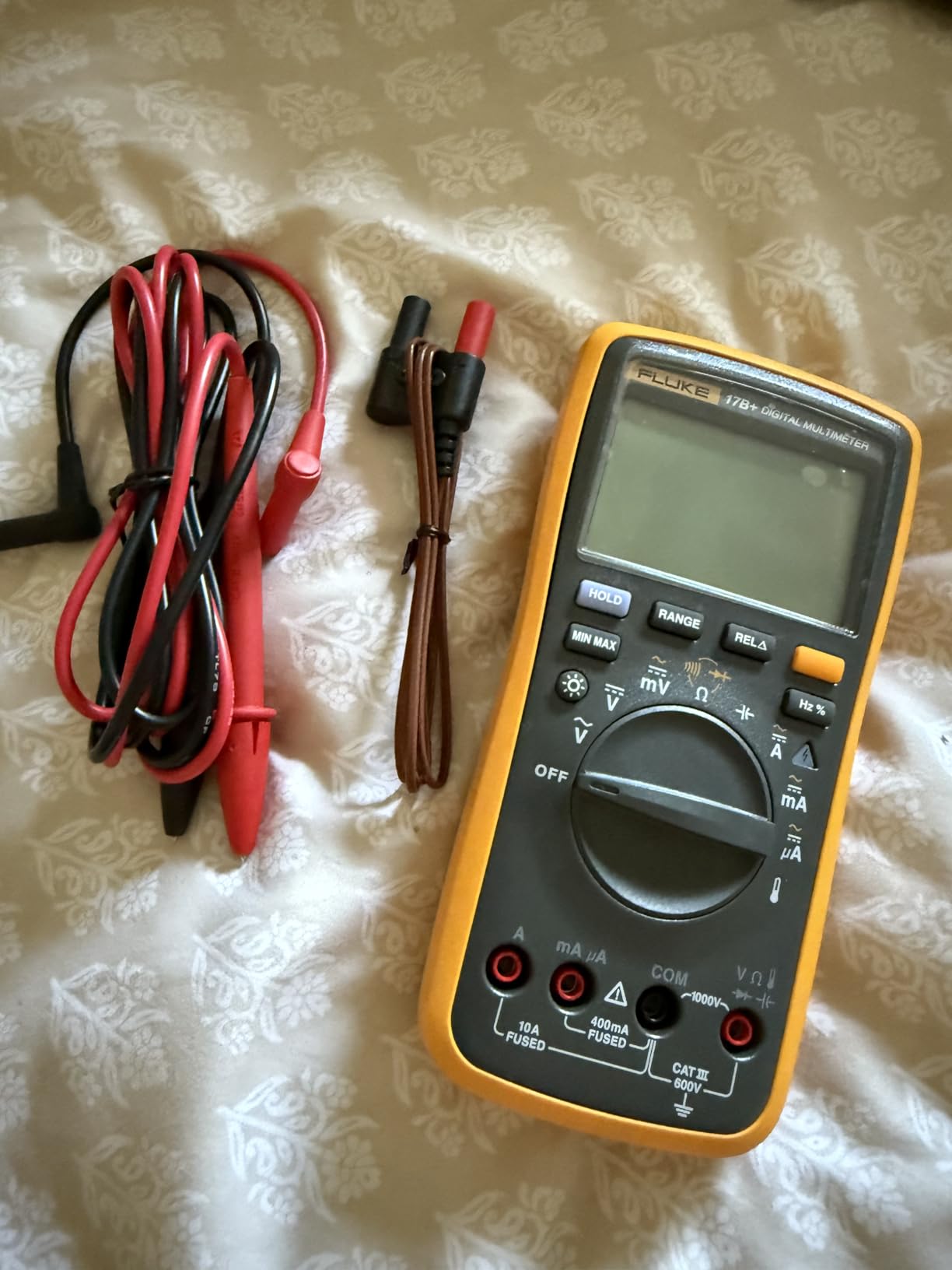

5. Fluke 17B+ – Best for a Soldering Bench and Microsoldering
Fluke 17B+ Digital Multimeter, for Electrical Applications, Measures AC/DC Voltage 1000V, Current Measurements to 10A, Resistance, Continuity, Diode, Capacitance, Frequency, and Temperature Testing
CAT III 600V
1000V AC/DC
400C temperature range
Type K thermocouple included
Pros
- Adds frequency and temperature measurement
- Readings cross-checked against an Agilent U1273A bench meter
- Big display with large numerals ideal for microsoldering
- TL75 leads are sturdy and easy to swap
- Rugged and solid with long battery life
Cons
- No milliamp or microamp ranges and no current clamp
- Temperature needs the included type K thermocouple
- Protective case is a recommended extra purchase
When you are working under a magnifier on a densely populated board, the Fluke 17B+ earns its place. The display is large with big numerals, readable at arm’s length, and buyers often pick it as a second meter so a trusted one stays on the bench.
Compared with the Fluke 15B+ it adds frequency and temperature, with a type K thermocouple measuring up to 400C. That means you can check a rectifier drop, a regulator’s output and a hot soldering iron tip with one instrument.
Independent testing has cross-checked its resistance and voltage readings against an Agilent U1273A bench meter and found them to match. With 1030 reviews at 4.8 stars and 90% five-star, it also has the highest rating profile of the Flukes here.
Certification is CAT III 600V, with AC and DC voltage to 1000V and current to 10A. The TL75 leads that ship with it are sturdy and easy to replace, which matters more than it sounds when you are re-doing a connector every week.
Why bench owners pick it
Its core appeal is that the readings hold up. Owners report voltage figures matching lab-grade instruments to within a few millivolts and resistance agreeing closely with a bench reference, which means a measurement from this meter can be trusted in a write-up or a forum post.
Temperature plus frequency in one hand-held unit is the combination that keeps people from reaching for a second box when a regulator runs warm or a switching supply misbehaves.
Limits worth knowing before you buy
There are still no milliamp or microamp ranges and no current clamp support, the same architectural limitation as the Fluke 117. Measuring small-signal currents means improvising, and guitar and amp builders often pair it with a separate instrument.
The switch is reported to wear out over many years of service, and the soft case is a recommended extra. It is also the heaviest meter in the list after the 117 at 470 g, so plan on a kickstand rather than a hand-held approach.

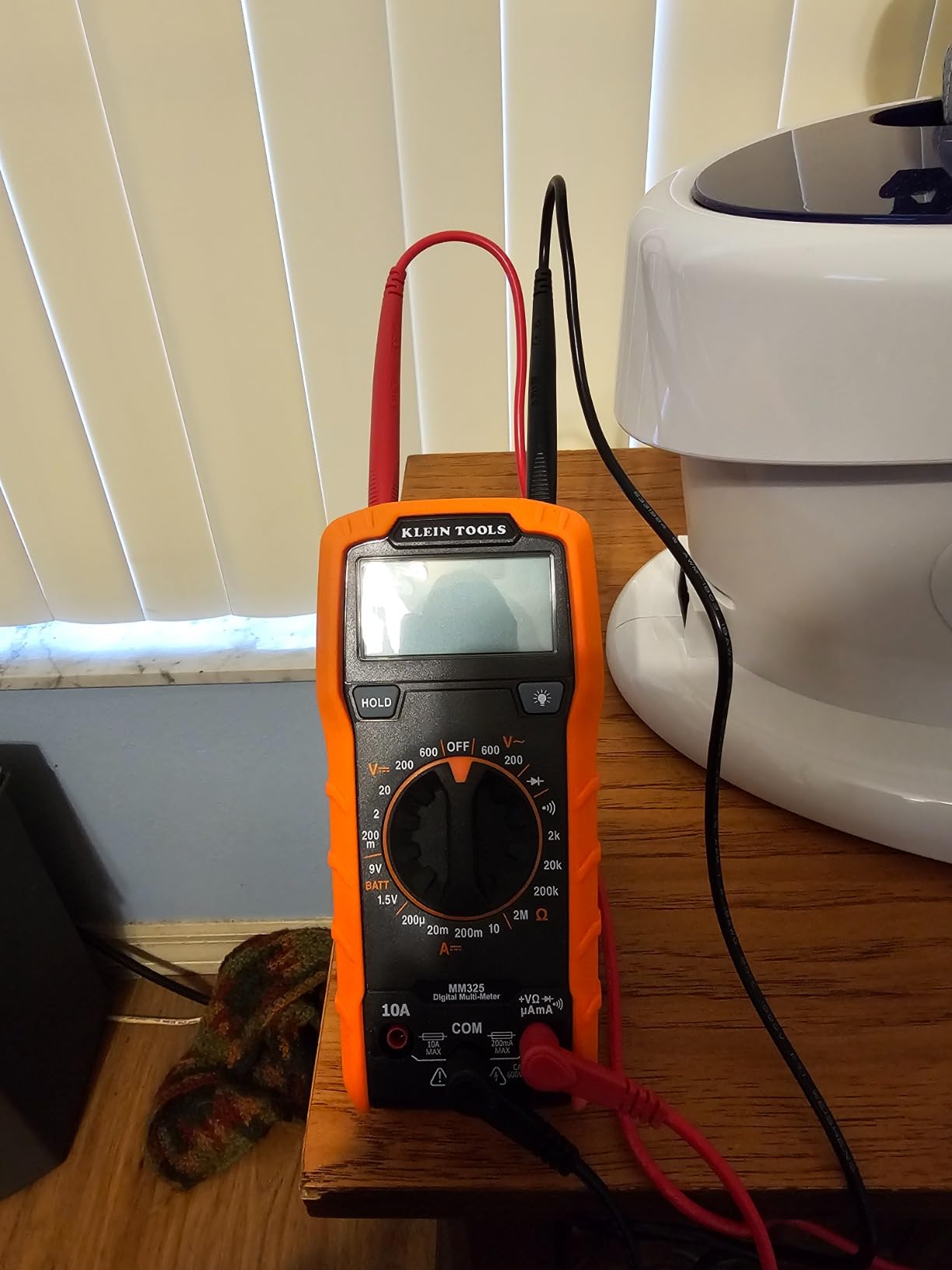

6. Klein Tools MM325 – Best Brand-Backed Manual-Ranging Starter
Klein Tools MM325 Multimeter, Digital Manual-Ranging 600V AC/DC Voltage Tester, Tests Batteries, Current, Resistance, Diodes, and Continuity
CAT III 600V
Manual ranging
10A DC current
2 megohm resistance
Pros
- Brand-backed CAT III 600V safety rating
- Lead-alert LEDs prevent probing with leads in the wrong jack
- Battery test mode checks cells without extra gear
- Backlit display with lead holders and kickstand
- Compact build at just under 14 ounces
Cons
- Manual ranging means picking ranges yourself
- No capacitance temperature or frequency measurement
- Resistance limited to 2 megohm and current to DC only
The MM325 exists for people who want a Klein on the bench without paying for features they will never use. With 2970 reviews at 4.7 stars and 85% five-star, its rating profile is among the strongest in this group, and owners repeatedly single out the lead-alert LEDs as the reason it feels safe.
It measures AC and DC voltage to 600V, 10A DC current and 2 megohm resistance, plus continuity, diode and battery test modes. The battery function alone saves buying a separate cell tester for a drawer of AAAs.
Manual ranging is the deliberate trade-off. You choose the range, which teaches you something about how the instrument behaves, and the price of that lesson is the range-guessing failure mode beginners complain about elsewhere.
At 13.92 ounces it is the most compact meter here, and the backlit display, rear test lead holders and kickstand cover the basics of bench ergonomics without adding bulk.
Who should buy this one

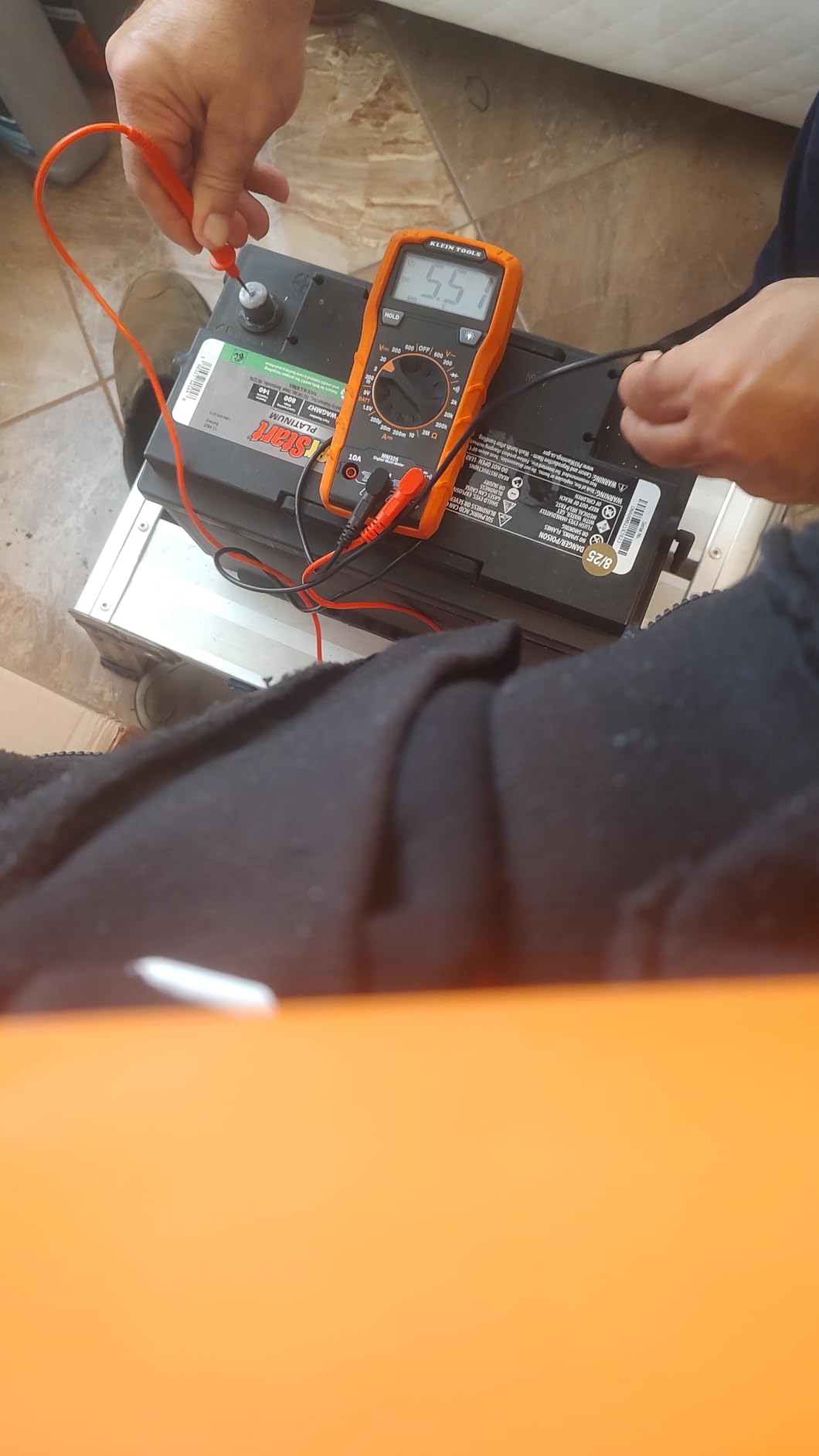

Choose the MM325 if you mostly check batteries, test outlets and verify continuity on harnesses, and you would rather have a name you can trust than a longer function list. The CAT III 600V rating is a real certification rather than a printed claim, which matters if the meter will ever touch something connected to mains.
Owners also like that it works with an optional magnetic hanger, so it can live on a steel cabinet instead of sliding around a bench.
Where the limits bite
There is no capacitance, temperature or frequency measurement. That rules it out for electrolytic bulk caps, hot regulator checks and switch-mode supply debugging, all common on an electronics bench.
Resistance stops at 2 megohm, roughly a quarter of the Klein MM420, so high-value resistors and insulation checks are out of reach. Current is DC only. The upgrade path from here is the MM420 rather than another manual meter.

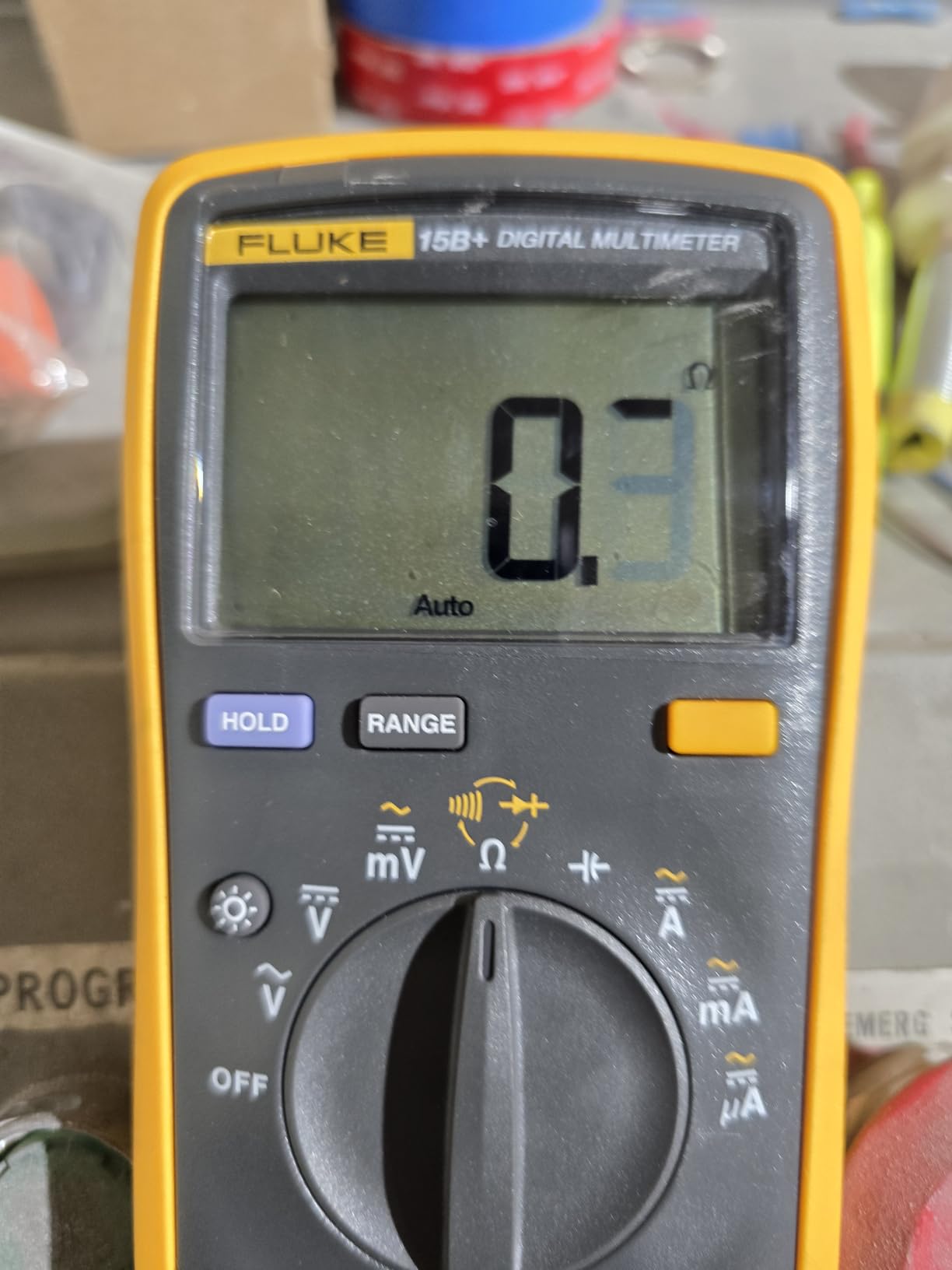

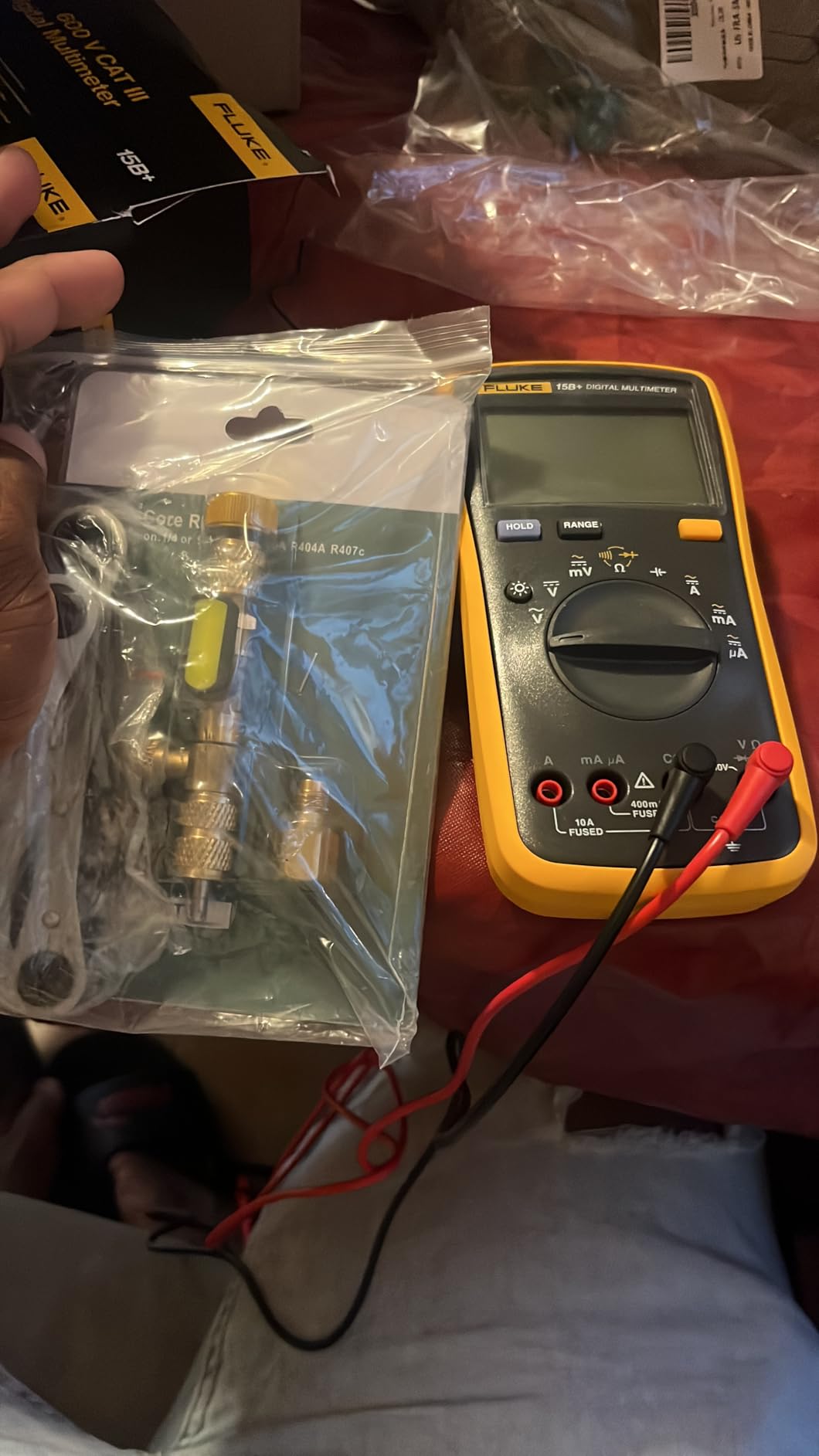

7. Fluke 15B+ – Best Compact Fluke for a Small Tool Bag
Fluke 15B+ Digital Multimeter, for Electrical Applications, Measures AC/DC Voltage and Current Measurements up to 1000V and 10A, Along with Resistance, Continuity, Diode, and Capacitance Capabilities
CAT III 600V
1000V voltage range
Capacitance and diode test
460 g
Pros
- Fluke build quality and accuracy in a lower-cost model
- CAT III 600V rating gives confidence around mains circuits
- Capacitance included at this tier unlike most budget meters
- Compact and light at 460 g
- CE CSA ETL UL and IEC 61010-1 certified
Cons
- No frequency temperature or duty cycle measurement
- 600V CAT III rating is lower than CAT IV service meters
- Accessories such as a soft case are sold separately
The 15B+ is the Fluke to buy if you want the name and the certification without the 17B+ feature list. At 460 g it is the lightest Fluke here, which matters when the meter lives in a small bag rather than on a bench.
It covers AC and DC voltage to 1000V, AC and DC current to 10A through a dedicated input, plus resistance, continuity, diode and capacitance. Having capacitance in a Fluke at this level is unusual, and it is what separates it from the budget meters.
The certification list is the real argument: CE, CSA, ETL, UL and IEC 61010-1. Owners moving up from a generic meter cite accuracy, ruggedness and brand confidence rather than a single extra function.
With 987 reviews at 4.8 stars and 88% five-star, satisfaction runs high, and many owners note the 17B+ as the logical next step if frequency and temperature turn out to matter.
Why it earns its place on a hobby bench
A CAT III 600V rating gives you permission to check a bench supply or a project wired near mains without thinking about whether the meter is insured for it. For most hobby work the voltage ceiling never comes up, but the assurance does.
Capacitance means you can test a bulk electrolytic or a decoupling capacitor in circuit without owning a separate meter, which is one of the most common reasons to upgrade from a cheap unit.
What it will not do
There is no frequency, temperature or duty cycle measurement, so timing-dependent circuits and thermal checks need another instrument. If your work involves hot regulators or switch-mode supplies, move up to the 17B+ instead.
The soft holster is a recommended extra, and the 600V CAT III rating is below what CAT IV service work requires. Neither is a problem for a hobby bench, but both are worth knowing before you compare it against a meter aimed at electricians.

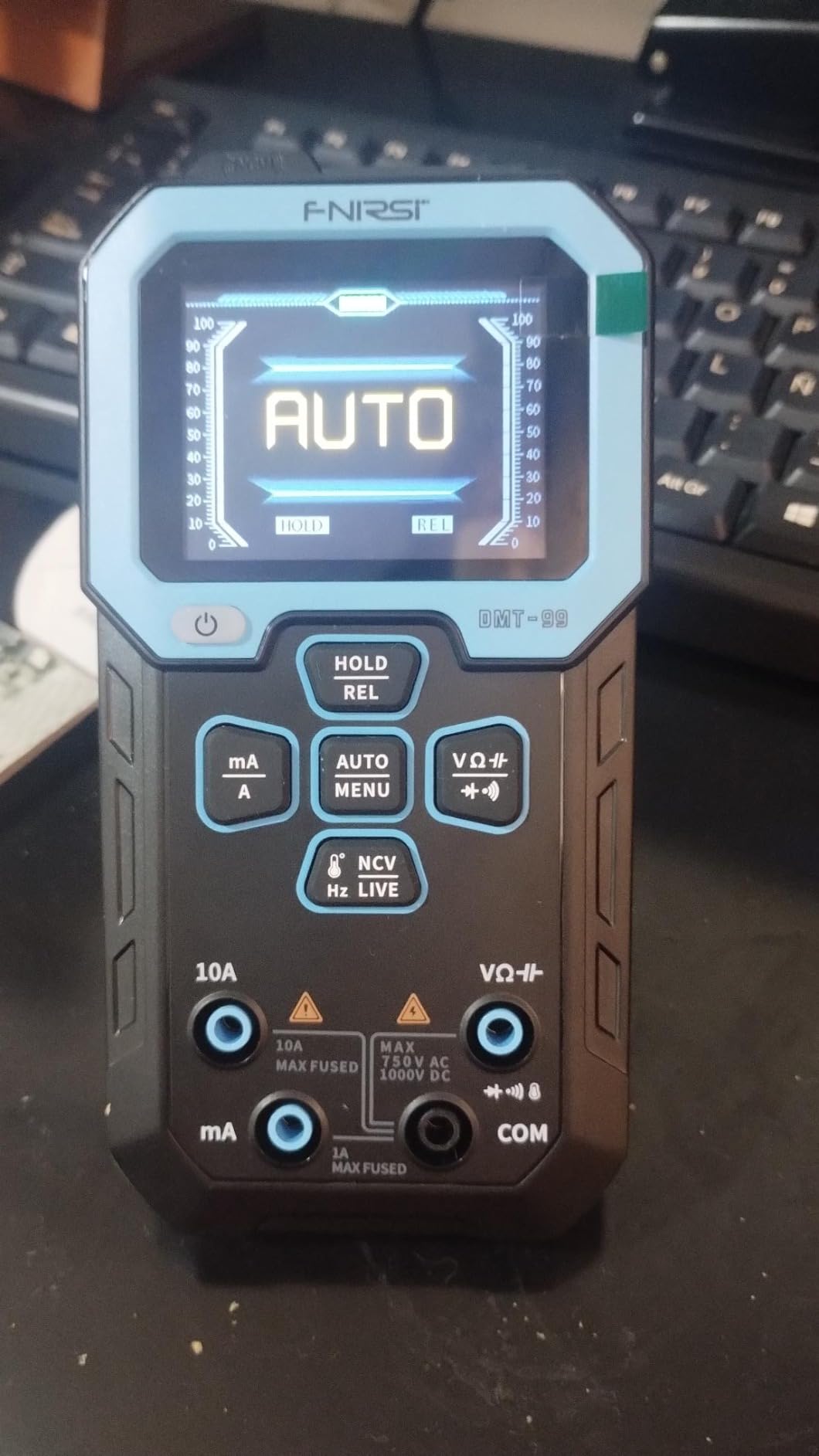

8. FNIRSI DMT-99 – Best Graphing Meter for Intermittent Faults
FNIRSI DMT-99 Digital Multimeter 9999 Counts TRMS, Rechargeable Volt Meter
9999-count True RMS
2.4 inch color TFT
1500mAh rechargeable cell
Fine SMD probe tips
Pros
- Only meter here with a color TFT screen and waveform graphing
- 9999-count True RMS beats the 6000-count rivals
- Built-in rechargeable battery with USB-C
- Monitoring mode with custom thresholds catches intermittent faults
- Fine probe tips work on SMD and dense boards
Cons
- Color screen and rechargeable cell make it heavier than plain LCD meters
- Auto-identification mode can pick the wrong function
- Smaller brand support footprint than Fluke or Klein
The DMT-99 is the one to buy when your failures are intermittent. Its 2.4-inch color TFT screen shows a graphic waveform view, and the threshold-triggered monitoring mode can sit on a rail until a reading strays outside limits you set, then alert you.
Resolution is the other headline. At 9999 counts with true RMS, it out-resolves the 6000-count budget meters by a wide margin, which shows up when you are chasing a rail sitting a few tens of millivolts low.
Auto-Mode identifies AC or DC voltage, resistance and continuity on its own, which speeds up casual probing. NCV, frequency, diode, AC and DC current and resistance are all covered, with dual ceramic fuses and anti-burn protection circuitry behind them.
The included fine-tip leads are the quiet hero for anyone working on SMD parts or a densely routed board. At 6.72 ounces with a kickstand, it is also the lightest meter we tested, and the 1500mAh rechargeable cell removes battery changes entirely.
Where the graphing display pays off
Watching a waveform beats staring at a number when you are chasing noise on a switching supply, ripple on a regulator output, or a rail that only sags under load. Owners who work on electronics repair treat the display as the reason they bought it.
Type-C charging is a genuine convenience, though it does mean you cannot drop in a spare cell when the battery ages.
Trade-offs to know
Auto-identification occasionally misreads an ambiguous signal and picks the wrong function, so on a critical measurement it is worth confirming what the meter decided before you trust the number. The color screen also needs to be read carefully in bright light.
Brand support is thinner than Fluke or Klein, which matters less for a hobby bench than for a contractor, but is worth weighing if you expect long ownership.
9. AstroAI 2000-Count Tester – Best Starter Meter for Basic Checks
AstroAI Digital Multimeter Tester 2000 Counts with DC AC Voltmeter and Ohm Volt Amp Meter; Measures Voltage, Current, Resistance, Continuity and Diode, Blue
1999-count backlit LCD
AC/DC voltage and DC current
Continuity and diode
500V maximum
Pros
- Very low entry price for a general-purpose handheld meter
- Backlit 3.5 digit display is easy to read in dim conditions
- Data hold and continuity buzzer make bench tracing quick
- Double fuse and silicone cover give basic overload protection
- Battery test leads and manual included in the box
Cons
- Cannot test AC current and no AC voltage below 100 millivolts
- Only 2 samples per second which feels sluggish on changing signals
- 2000-count resolution is the lowest in this group
With more than 56000 reviews at 4.5 stars, this AstroAI is the most widely owned meter on the list and the one most beginners meet first. It measures AC and DC voltage, DC current, resistance, continuity and diode through a backlit 3.5-digit display, with data hold for tracing a fault across a breadboard.
It is a 9V battery model with a silicone shock-resistant cover and a double anti-burn fuse, which is about as much protection as a meter at this level can offer. A low battery indicator prevents the confusing dead readings that come from a flat cell.
Owners treat it as a household and automotive basics meter. The complaints that appear consistently are about the 1999-count display, the slow sampling rate and the absence of AC current measurement rather than any question of accuracy.
That is the honest framing: this is a tool for answering yes-or-no questions about a circuit, not for measuring small differences.
What it is genuinely good for
Checking that a 5V rail is really 5V, confirming a fuse or a switch is continuous, verifying a diode’s forward drop and testing a battery are all jobs it does well. The audible continuity buzzer is the feature that gets used most, since it frees both eyes for the probe tips.
It also makes a reasonable second meter to keep in a drawer, so the bench meter never has to leave the bench.
Why you will outgrow it
Two samples per second feels sluggish the moment a reading changes, and 1999-count resolution means a 5V rail reads as 0.01V steps, so small drifts are hard to see. There is no capacitance, frequency or temperature function either.
One reviewer also notes that the test leads are ordered separately from the manufacturer, which is a good reminder to check what is actually in the box. If you will do more than pass-or-fail checks, move up.
10. AstroAI DM130B – Best Value Pick with Capacitance Testing
AstroAI DM130B Multimeter, 4000 Counts, Auto-Ranging, Capacitance Testing
4000-count auto-ranging
Capacitance testing
NCV detection
Bright backlit LCD
Pros
- Capacitance testing lets you diagnose and replace capacitors yourself
- Auto-ranging makes it approachable for occasional users
- Large bright backlit display that is easy to read
- Non-contact voltage mode for quickly checking live wires
- Compact enough to fit a small toolbox
- Accurate enough for battery automotive and audio restoration work
Cons
- Supplied test leads feel flimsy and need twisting to seat fully
- Included zinc-oxide batteries leak and should be replaced
- Instructions may ship in a language other than English
The DM130B is the meter we suggest to someone whose main interest is capacitors. At 4000 counts with auto-ranging and a capacitance function, it covers the one measurement that trips up most budget meters, and it does so in a 9.88-ounce body that fits a small toolbox.
Owners describe it as the ideal first meter or a backup for people who already own something better, and it is rated accurate enough for battery, automotive and audio restoration work.

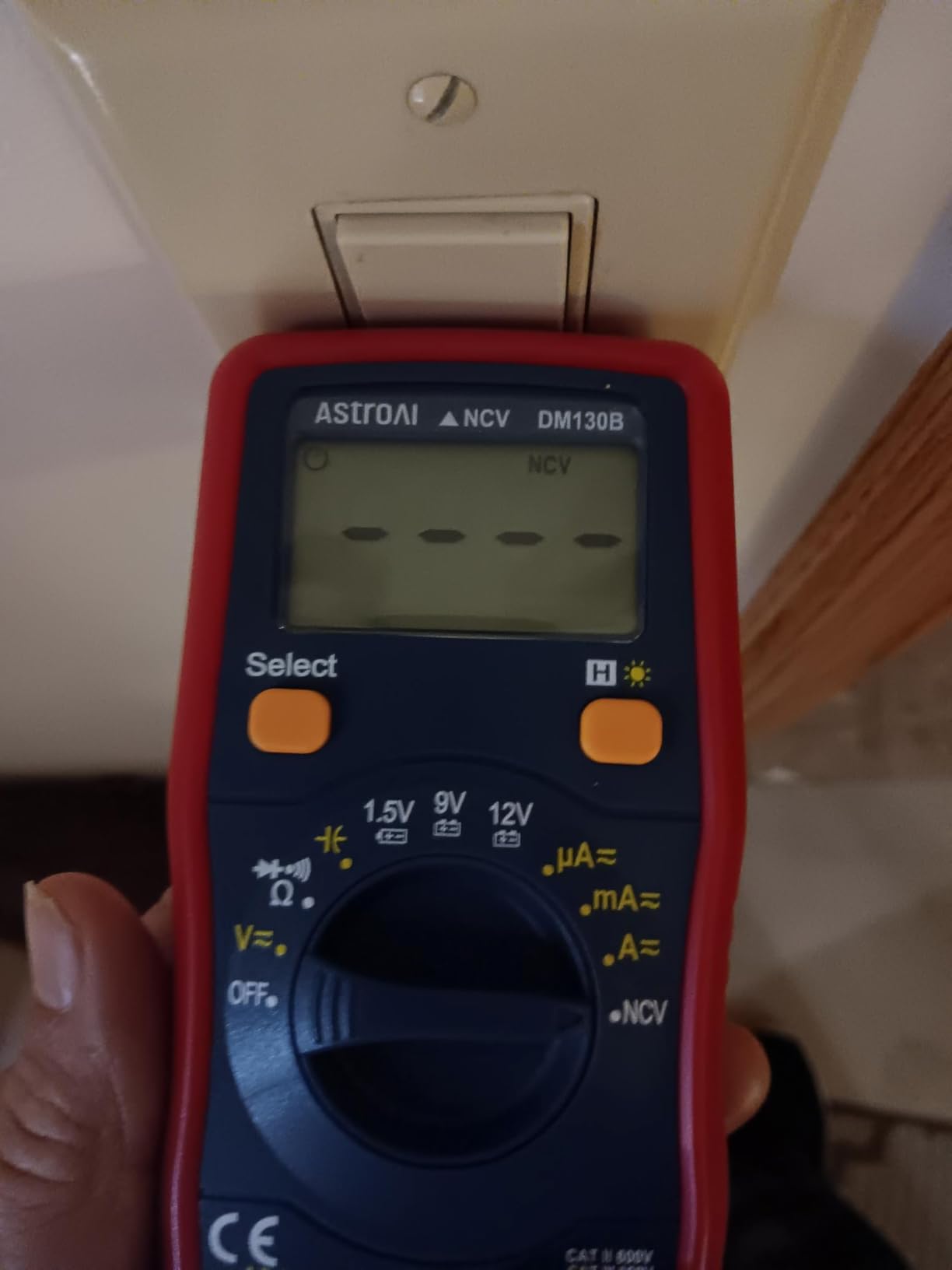

Non-contact voltage detection lets you check a live conductor before committing a probe, and the bright backlit display with an audible continuity beeper handles dim benches and quick net tracing without fuss.
Three AAA batteries power it, and auto-ranging covers voltage, current, resistance, continuity, diode and capacitance without manual range selection.
Why capacitance is the deciding factor
A failed electrolytic is one of the most common faults in an older amplifier or power supply, and measuring it in circuit turns a guessing game into a diagnosis. Having capacitance on a budget meter saves buying a separate device for a job you will repeat.
For anyone restoring audio gear or checking a bench supply, that single function justifies the meter on its own.
Two things to fix before you use it
The supplied test leads feel flimsy and sometimes need twisting to seat properly in the jacks. Replacing them with a better lead set is the cheapest possible upgrade here.
The included zinc-oxide batteries leak, and owners consistently recommend fitting alkaline replacements before first use. Instructions may also arrive in a language other than English.
How to Choose a Multimeter for Electronics Work
A hobbyist’s needs are narrower than an electrician’s, which makes this a short decision once you know what a 5V rail actually requires. Ignore the features you will never touch and buy the meter that gets the basics right.
Counts and resolution, decoded for a 5V rail
Counts describe how many digits the display can show at once. A 1999-count meter on the 40V range moves in steps of 0.01V, a 6000-count meter in steps of 0.01V too but with finer ranges in between, and a 9999-count meter goes one place further.
On a 5V rail, 2000 counts gives you 1mV resolution, which is usually plenty. Resolution only starts to matter when you are watching a rail sag under load, so if that is your work, aim for 6000 counts or more.
Auto-ranging vs manual-ranging
Auto-ranging picks the range for you and removes the most common beginner failure: choosing a range that is too small, blowing a fuse, or reading a meaningless number. Manual-ranging is faster on a circuit you already understand, and cheaper meters tend to be manual.
If you are buying your first meter, buy auto-ranging. Our advice for anyone starting out is to treat it as an electronics kit for a young beginner that grows up, which means the first meter should make the common case easy.
True RMS vs average-sensing
Average-sensing meters assume a clean sine wave and read low on anything else. True RMS computes the real RMS value, which matters for switch-mode supplies, LED drivers, dimmers and variable-speed motor circuits.
For pure DC and low-voltage logic, true RMS changes nothing. Pay for it if you will ever test a mains-frequency or dimmed circuit, and do not worry about it if you are only working with 3.3V and 5V rails.
CAT safety ratings, and why hobbyists can mostly ignore them
CAT ratings describe where a meter can safely be used: CAT III covers distribution and permanently installed equipment, CAT IV covers the source of the supply. Hobby bench work sits entirely outside both categories.
The practical advice is to buy a meter with at least CAT III 600V if it will ever touch anything mains-adjacent, and to ignore any meter whose main selling point is CAT IV. Paying for CAT IV you will never use is the most common overspend in this category.
Test leads, probes and fuses
The meter is not the tool you hold. Cheap included leads feel flimsy, have tips too small to grab a header pin, and are the part reviewers complain about most often. Budget for a replacement lead set early.
Alligator clips solve the three-hands problem, and a magnetic hanger stops the meter sliding around a bench. Also check that the input fuses are user-replaceable, because a blown input fuse with no spare in the box ends the session.
Digital vs analog: which one should a hobbyist own?
A digital meter gives exact readings, holds peaks and min/max values, and has built-in diode and continuity modes. An analog meter shows trends instantly, which is its one real advantage when you are watching a needle move as a rail warms up.
For electronics hobby work, choose digital. Analog meters remain useful as a second opinion on a drifting rail, but they are a complement rather than a replacement, and accuracy specifications make digital meters easier to compare.
One practical note on keeping the bench tidy: a good bench vise for hobbyists and a spare faraday bag do more for reliable measurements than a marginally better meter does, because a stable board and a quiet environment remove more noise than any display can.
Frequently Asked Questions
What is the best multimeter for an electronics hobbyist?
The Fluke 117 is the best overall pick for electronics hobbyists. It auto-detects AC and DC, measures true RMS, and its low-impedance mode separates real voltage from ghost voltage on unpowered traces. On a tighter budget, the AstroAI 6000-count true RMS meter offers most of the useful functions at a fraction of the cost.
Which multimeter is best for electronics?
For most electronics work, the Fluke 117 is best because auto-ranging, AutoVolt AC/DC selection and low-impedance mode remove the guessing that slows down PCB debugging. If your work stays under 24V, the Klein MM420 covers auto-ranging, true RMS, temperature and capacitance and is easier on the wallet.
What is the best multimeter for value for money?
The AstroAI 6000-count true RMS meter is the value pick. It gives true RMS on AC voltage and current, 6000-count auto-ranging, capacitance, frequency, duty cycle and temperature, all with double ceramic fuse protection. Discount its overstated frequency counter figure before relying on it.
Do I need a true RMS multimeter for electronics?
Only if you work with non-sinusoidal signals such as switch-mode supplies, LED drivers, dimmers or variable-speed motors. True RMS meters read accurately where average-sensing meters read low. For straight DC, 3.3V and 5V rails, true RMS makes no measurable difference.
Is Klein or Fluke better for electronics?
Fluke builds a more accurate instrument with features like low-impedance mode and true RMS, while Klein meters carry CAT III 600V certification, drop ratings and lead-alert LEDs at lower prices. For pure electronics work the Fluke 117 leads, and the Klein MM420 is the better budget step up.
How many counts do I need in a multimeter?
2000 counts gives 1mV resolution on a 5V rail, which covers most hobby checks. Move to 6000 or 9999 counts if you are watching a rail sag under load or resolving a small drift in a regulated supply. Counts matter more than the headline number of functions.
What CAT rating do I need for low-voltage electronics work?
For low-voltage bench work under 24V you do not need any CAT rating. If a meter may touch anything connected to mains, look for CAT III 600V. Paying extra for CAT IV is the most common overspend for hobbyists, since it is aimed at service technicians working at the supply origin.
Which Multimeter Should You Buy in 2026?
The Fluke 117 is the best multimeter for electronics hobbyists in 2026, and the reason is one feature rather than a spec sheet: low-impedance mode. It is the difference between a number you trust and a number you second-guess, and everything else on the meter supports that reliability.
If the budget is tighter, the AstroAI 6000-count true RMS meter does almost everything the 117 does at a fraction of the spend, and the Klein MM420 is the safest first meter for someone who never wants to think about ranges. Whichever you pick, measure resistance only on a de-energised circuit, use the fused current input for anything below 10A, and replace the test leads if they feel flimsy.
