There is a specific moment in every fishing day that a bad battery decides for you. You are two miles from the ramp, the last spot held for two hours, spot lock engaged, and the motor starts to stutter. The light on the console that said 60 percent is now telling a different story. That moment is why this guide exists, and it is why choosing among the best trolling motor batteries for all day fishing is less about brand loyalty and more about matching usable amp hours to the motor you actually run.
The short answer first: a 12V 100Ah lithium iron phosphate pack is the right default for motors up to about 55lb of thrust, and anything heavier deserves 140Ah or two batteries in parallel. Lead-acid still works, but the weight difference is brutal once you calculate how many hours of mixed-speed trolling a full day really takes.
How we picked: we compared eight packs across chemistry, nameplate capacity, physical dimensions, weight, cycle life claims, warranty length, low-temperature protection, Bluetooth monitoring, and the failure patterns owners actually report. Every runtime figure below comes from published capacity and discharge data rather than a marketing claim, and we flag where a real fishing day will differ from a spec sheet. We also weighed the hidden costs that roundups usually skip, like the LiFePO4 charger you have to buy separately.
If you have not settled on a motor yet, start with our picks for the best trolling motors first, then size the battery to whatever thrust class you land on. Coastal anglers should also read our saltwater trolling motor guide, since saltwater changes the durability requirements more than most buyers expect.
Table of Contents
Top 3 Picks for All-Day Trolling Motor Batteries
These three cover the widest range of setups. If you want one recommendation for a typical bass or multi-species boat, take the first one.
Best Trolling Motor Batteries for All Day Fishing (October 2026)
All eight packs below are deep cycle batteries, which is the only category that matters for a trolling motor. A starting battery can turn an engine over but will not survive a day of steady draw.
| Product | Specifications | Action |
|---|---|---|
 Litime 12V 100Ah LiFePO4 |
|
Check Latest Price |
 LiTime 12V 50Ah LiFePO4 |
|
Check Latest Price |
 VMAX MR127 12V 100Ah AGM |
|
Check Latest Price |
 SUPER EMPOWER 12V 100Ah LiFePO4 |
|
Check Latest Price |
 DC HOUSE 12V 100Ah LiFePO4 |
|
Check Latest Price |
 Renogy 12V 100Ah AGM |
|
Check Latest Price |
 Power Queen 12V 50Ah LiFePO4 |
|
Check Latest Price |
 Weize Group 24M 12V 90Ah AGM |
|
Check Latest Price |
1. Litime 12V 100Ah LiFePO4 Battery – Best Overall All-Day Pack
Litime 12V 100Ah Trolling Motor LiFePO4 Battery for Marine, Boat, Yacht
100Ah / 1280Wh
22.2 lb
12.8V
4000+ cycles
5-year warranty
Pros
- Half the weight of the AGM it replaces
- Nearly full rated capacity is usable
- Bluetooth app shows live amp draw and state of charge
- Fast recharge over a lunch break
- Terminal layout matched the OEM AGM for easy install
Cons
- Cannot crank an engine
- Some packs arrive unable to accept a charge
- App login flow is repetitive
This is the pack we keep coming back to because the numbers line up with how people actually fish. It carries 1280Wh of energy at 12.8V, weighs 22.2 pounds, and is rated for 4000 deep cycles at full depth of discharge, 6000 at 80 percent, and up to 15000 at 60 percent. That last figure matters more than the headline number, because nobody runs a battery to absolute zero.
Owners converting from lead-acid consistently report the same two surprises. The first is weight: at 22.2 pounds it is roughly a third of what a 100Ah AGM weighs, and reviewers note the terminal arrangement matched the battery they removed, so the install was painless. The second is capacity, since a lithium pack can be discharged far deeper without the voltage sag that makes motors stutter near the end of a day.
The Bluetooth app is the feature that changes behaviour rather than just specs. Reviewers call out accurate state of charge and live amp draw, which means you can watch the draw spike when spot lock holds you in current and back off to a trolling speed before the pack is stressed. Charging is fast enough that a lunch-break top-up is realistic, and the enclosure carries an IP65 rating with salt resistance for coastal use.
Low-temperature protection is real here: charging stops below 32F and discharging stops below -4F, so winter anglers on ice and cold-water lakes will not damage cells by charging them in a truck bed. The pack also supports expansion to 4P4S, which means the same platform scales to a 24V or 36V bank later without changing chemistry.
What to check before you buy
Measure your battery tray first. The case measures 13 by 6.77 by 8.5 inches, which is close to a Group 31 footprint, and boats built for a Group 27 case can be tight at the lid. Also confirm your charger is lithium rated, because a lead-acid charger set to 14.4V will not properly manage a LiFePO4 pack and you will never see the stated cycle life.
If your boat runs a single battery that also starts the outboard, this is the wrong pack. There is no cranking capability here, and pairing a lithium storage battery with a starting bank is a wiring project worth planning before you buy.
Who should skip it
Skip this if weight is not your problem and you want the lowest purchase outlay with the longest proven service history, or if your boat has no space for a separate charger and you are not willing to add one. The 5-year warranty is solid but not the longest available in this category, so buyers who plan to keep a battery ten-plus seasons may prefer a pack with a longer written service commitment.
Watch one failure pattern in the reviews: a small share of buyers report packs arriving dead or refusing a charge, which means a return. That is worth factoring into where you buy from, since a battery shipped to a local tackle shop is easier to sort out than one handled entirely through international warranty shipping, where owners report refunds taking weeks.

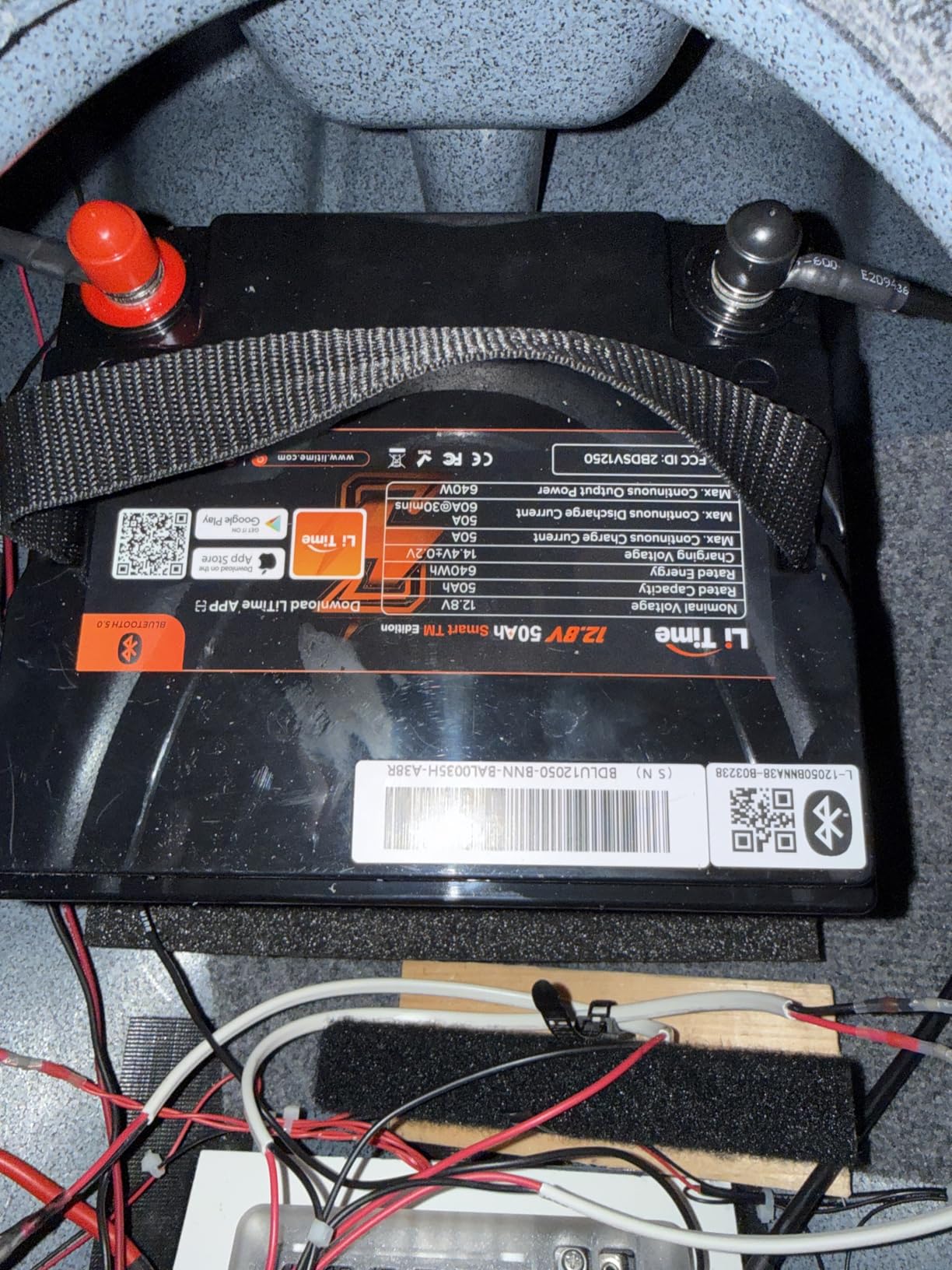

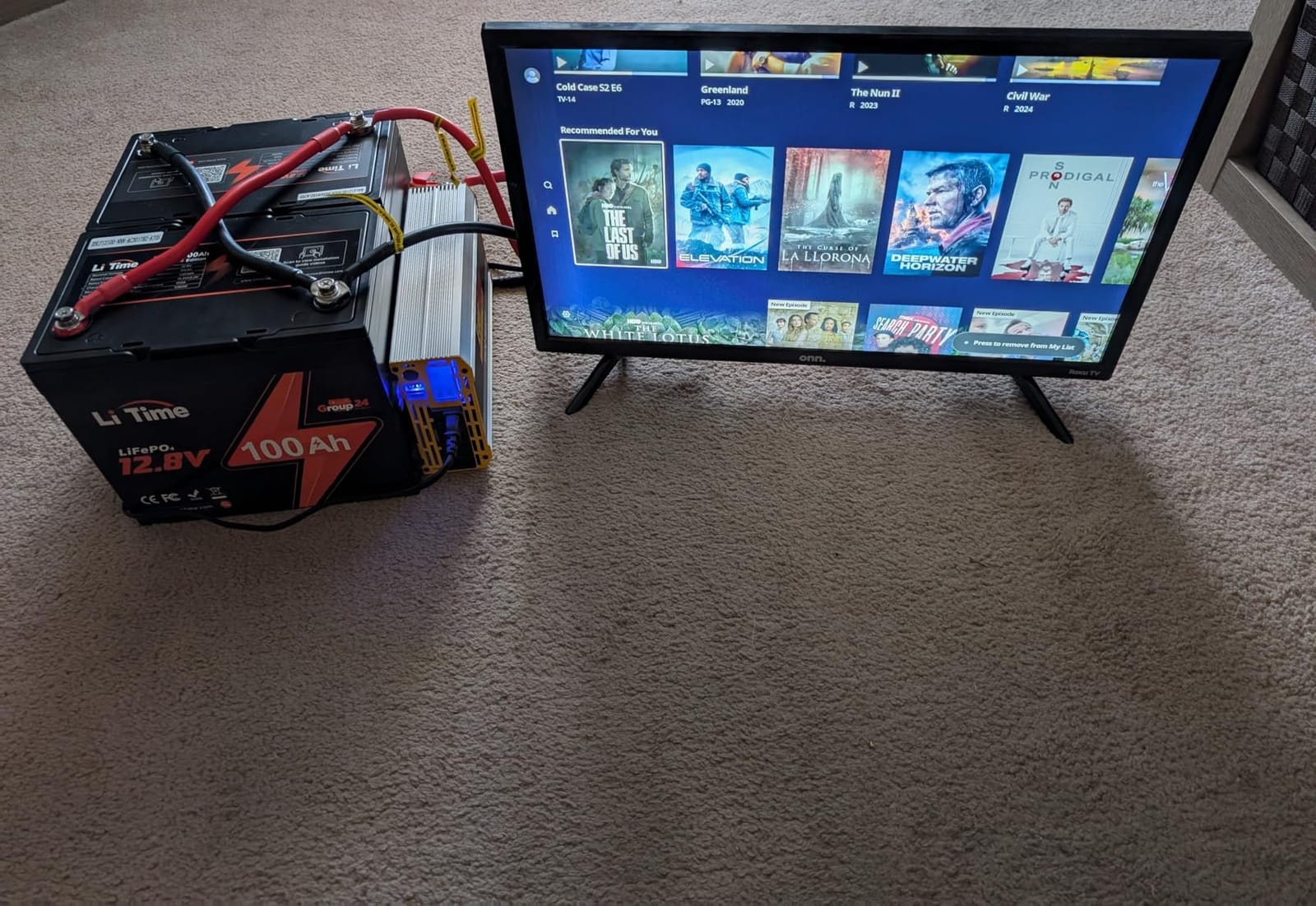

2. LiTime 12V 50Ah LiFePO4 Battery – Best for Kayaks and Small Boats
LiTime 12V 50Ah Trolling Motors LiFePO4 Lithium Battery for Fish Finder
50Ah / 640Wh
11.3 lb
12.8V
50A BMS
5-year service
Pros
- Lightest usable capacity in this group at 11.3 lb
- Two full days of trolling reported with charge remaining
- Bluetooth 5.0 pairing through a QR code
- Handles rough water and being bounced around
- Hold charge well through winter storage
Cons
- Not a cranking battery
- App percentage is unreliable below about 0.5A draw
- Some packs arrive unable to accept a charge
Half the capacity of the number one pick, less than half the weight. At 11.3 pounds and 640Wh, this is the pack for a kayak, a jon boat, or a small skiff where every pound counts and the motor is rated 45lb thrust or less.
The continuous discharge rating is the detail that matters here: 1.2C, which works out to 60A for 30 minutes. That headroom above the 50A BMS ceiling is what lets a small pack absorb the surge when you break loose from a spot and the motor pushes hard before settling into cruise.
Owners on kayaks and small boats report two full days of trolling with charge remaining, which lines up with the maths once you look at how little current a trolling motor draws at cruise. A 45lb motor running at speed two might pull 8 to 10 amps, and 50Ah divided by 9 amps is more than five hours. Bluetooth monitoring is described as a genuine improvement over guessing, with QR code pairing instead of a fiddly manual connection.
Warranty service runs five years from the date of purchase, and internal resistance is listed at 40 milliohms, which keeps voltage drop under load modest. The case measures 7.68 by 6.54 by 6.77 inches, small enough for most battery boxes and easy to secure in a kayak hull where shifting weight matters.
What to check before you buy
Do the runtime maths honestly for your longest day. If you fish heavy current, work thick grass, or hold spots with spot lock for long stretches, your average draw will be much higher than cruise, and 50Ah will feel tight. In that case, two of these in parallel give you 100Ah at 22.6 pounds total, still far below a single AGM.
One more check: if you plan to run a low-draw device such as a dash camera off this pack, do not trust the app percentage. Reviewers specifically call out that the state-of-charge reading becomes unreliable below roughly 0.5 amps of draw, which is a firmware limitation rather than a battery fault.
Who should skip it
Skip it if you run a 55lb or larger motor and expect full-speed runs, or if you need one battery to both start an engine and troll. The 50Ah class simply does not have the reserve for sustained high draw, and a depleted pack recovers poorly when you need a motor to get home.
Also consider the warranty logistics. Buyers report that warranty refunds on this model can take weeks and require shipping the battery back, so if you fish far from home, buying through a domestic retailer is the safer route than relying on direct manufacturer service.
3. VMAX MR127 12V 100Ah AGM – Best Proven Lead-Acid Workhorse
VMAX MR127 12 Volt 100Ah AGM Deep Cycle Maintenance Free Battery compatible with boats and 40-100lb, minnkota, cobra, sevylor and other trolling motor (GROUP 27 Marine Deep Cycle AGM Battery)
100Ah AGM
Group 27 case
68 lb
sealed
1-year warranty
Pros
- Long service history in solar and marine duty
- Deep cycle performance verified with 40-100lb trolling motors
- Totally sealed and maintenance free
- Two in series power an 86lb motor cleanly
- Often still shows 90-95 percent after long days
Cons
- Extremely heavy at about 68-70 lb
- Hard to fully recharge after deep depletion
- Only 1-year warranty
If you want the option that has been doing this job for years without any chemistry surprises, this is the reference AGM. The MR127 is a 12V 100Ah sealed AGM in a Group 27 marine case, using an absorbed glass mat electrolyte suspension rather than silica gel, with heavy-duty lead tin alloy grids designed for cyclic service rather than float standby.
Long-term owners describe five-plus years of service in solar setups before replacement, and deep cycle performance is reported as holding up across 40lb to 100lb Minn Kota, MotorGuide, and Cobra trolling motors. The marine terminal design with carrying handles is a dated but practical choice, and the battery is completely sealed with no venting to worry about in a covered console.
The honest drawback is weight. At roughly 68 to 70 pounds, this is a two-person lift into most battery boxes, and it is the single biggest reason anglers migrate to lithium. If you are replacing a pair of these with one lithium pack, you will free up more than 40 pounds in your boat, which changes how the boat handles in rough water.
Because AGM only delivers about 50 to 70 percent of its nameplate rating usefully, a 100Ah AGM is really a 50 to 70Ah battery in practice. That is why a lithium pack of the same nameplate rating genuinely outlasts a fishing day. Owners also note the pack is often still showing 90 to 95 percent after long days on the water, which is what a healthy lead plate does.
What to check before you buy
Buy a charger that is happy with AGM and matches your bank size, and expect a slower charge than lithium. One recurring complaint is difficulty getting a fully depleted pack back up, because some smart chargers terminate early on deeply discharged lead acid. If you routinely run the battery to empty, this failure mode will show up sooner than the chemistry deserves.
Confirm your tray takes a Group 27 case and that your leads reach the marine terminals, which sit higher than standard automotive posts. Two of these in series will run a 24V system and owners report doing exactly that with an 86lb thrust motor with no loss of power.
Who should skip it
Skip it if weight is a factor in your boat, if you are on a budget that includes a charger, or if you want to install as few batteries as possible. A single 100Ah AGM weighs as much as three lithium packs that deliver more usable runtime, and the 1-year warranty is the shortest here.
Also skip it if you plan to run a lithium-compatible smart charger setup and expect fast turnaround between trips. Lead acid charges slowly by physics, and no charger changes that. If your boat sits for days between trips and you want a pack that holds its charge untouched, a lithium chemistry is a better match.
4. SUPER EMPOWER 12V 100Ah LiFePO4 Group 24 – Best Drop-In Fit
12V 100Ah LiFePO4 Battery, Group 24 Deep Cycle for RVs & Trolling Motors
100Ah / 1280Wh
Group 24
21.6 lb
100A BMS
5-year warranty
Pros
- True Group 24 footprint fits standard boxes
- Only 21.6 lb for a full 100Ah
- 100A BMS with low-temperature cut-off
- Expands to 4S4P for larger banks
- Five-year warranty with responsive support
Cons
- Needs a dedicated LiFePO4 charger
- Charging disabled below 32F
- Storage only
- not for cranking
The name on this listing says little, but the physical footprint says a lot. It is a BCI Group 24 case with M8 terminals, which means it drops into the same battery box as the lead-acid or AGM unit you are replacing, with no cutting, no spacer, no tray fabrication. For older boats with a cramped Group 24 compartment, that is worth more than any app feature.
Underneath it is 1280Wh of energy with Grade A LiFePO4 cells and an integrated 100A battery management system covering overcharge, over-discharge, overcurrent, short circuit, and temperature. Weight is 21.6 pounds, which is the lightest full 100Ah pack in this group, and it supports expansion up to 4 in series and 4 in parallel for 20.48kWh of total bank capacity.
Cold-weather behaviour is well specified: charging pauses below 32F, discharge stops below -4F, and charging resumes once the pack is back above 41F. That hysteresis is deliberate, and it protects the cells rather than letting them sit in a damaging charge state during a freezing night in the truck bed.
It also accepts DC-DC charging alongside LiFePO4 chargers and MPPT or PWM solar controllers, which makes it a reasonable choice if your boat doubles as an RV or off-grid setup. Five-year warranty coverage comes with what owners describe as responsive technical support, which is more than a few brands in this price bracket offer.
What to check before you buy
Bring a tape measure and check the case against your existing battery, at 6.49 by 10.24 by 8.98 inches. Group 24 cases vary slightly between manufacturers, and a battery that is a quarter inch too tall in a tight compartment will not go in, no matter how good the chemistry is.
Budget for the charger. This pack requires a LiFePO4 charger set to 14.4 to 14.6V constant current and constant voltage, or a controller in lithium mode, and non-lithium chargers are specifically not recommended. That charger is a required purchase, not an optional accessory, and it belongs in your total cost.
Who should skip it
Skip it if you fish in winter on a battery that stays in an unheated boat overnight and you need to top up charge in place, because charging is disabled below freezing. Skip it if you need one battery to start an outboard, since this is energy storage only, and skip it if you want Bluetooth monitoring, which this pack does not offer.
Review volume is also lower than the established lead-acid options here, which means less long-term field data on failure rates. That is not a dealbreaker for a chemistry that is inherently robust, but if you prefer buying into a heavily reviewed product, one of the picks with thousands of reviews may suit your risk tolerance better.
5. DC HOUSE 12V 100Ah Bluetooth LiFePO4 – Best App Telemetry
DC HOUSE 12V 100Ah Bluetooth LiFePO4 Trolling Motor Lithium Battery
100Ah / 1280Wh
23.8 lb
Bluetooth 5.1
Class A cells
Pros
- App reports per-cell voltage and current with fault alerts
- Up to 15000 cycle life claim
- Group 24 footprint fits standard boxes
- Low-temperature cut-off for cold conditions
- Works for trolling
- sonar
- ice fishing and alarms
Cons
- Roughly 0.32 in taller than standard Group 24
- Bluetooth range limited to 5-10 meters
- Only 3-year service commitment
Most Bluetooth batteries show you a percentage. This one shows you cell-level detail, which is a different level of information entirely. The app reports state of charge, pack voltage, current draw, and per-cell readings, and it sends fault alerts when something looks wrong, so you find out about a problem while the boat is still on the trailer rather than at the ramp at dawn.
It is a 12V 100Ah pack at 12.8V using Class A LiFePO4 cells with UL and UN38.3 certification, with a 100A BMS and Bluetooth 5.1 over a 5 to 10 meter range. The stated cycle life is up to 15000 cycles with a 10-year service life claim, which is at the aggressive end of what manufacturers in this class publish.
Cold cut-offs are specified in detail: charging stops below 19.4F, discharging stops below -4F, and it recovers at 32F. That charging threshold is lower than most competitors here, which makes it a reasonable pick for northern anglers who want to top up charge on a cold morning without waiting for the pack to warm up.
Versatility is the other selling point. Owners use these packs for trolling motors, fish finders, ice fishing, solar storage, and home alarm systems, and the near Group 24 dimensions with M8 terminals mean it lands in a standard battery box. Expansion is limited to four in series or four in parallel, eight packs total, rather than a full 4P4S arrangement, which is a real constraint for larger builds.
What to check before you buy
Measure the compartment height carefully. At 6.6 by 10.2 by 9.2 inches, the case is about 0.32 inches taller than a standard Group 24, and owners with tight lids report having to check the box before ordering. The extra height buys the cable routing space but it is not universal.
Think about the Bluetooth range realistically. Five to ten meters covers a boat with a phone in the console, which is where the app is most useful. It does not cover a large boat where you want to check state of charge from the transom while the battery sits under a forward hatch.
Who should skip it
Skip it if you need a long service commitment, because the 3-year service term is the second shortest here and the shortest among the lithium packs. Skip it if you plan to build a large bank beyond eight batteries, since 4P4S configurations are not supported.
Also weigh the height issue against alternatives. If your compartment is a standard Group 24 with no clearance, one of the true Group 24 lithium packs fits where this one will not, and you lose the per-cell telemetry. Decide whether the app detail is worth a trip to the battery shop with a tape measure.
6. Renogy 12V 100Ah AGM – Best Value With the Deepest Review Base
Renogy 12 Volt 100Ah Deep Cycle AGM Battery, Lead Acid Solar Battery
100Ah AGM
63.9 lb
-4F to 140F
2-year prorated warranty
Pros
- Deepest review base with over 3500 ratings
- Capacity tests confirm the rated 100Ah
- Discharge performance from -4F to 140F
- Self-discharge under 3 percent per month
- Series and parallel banks up to 4P supported
Cons
- Very heavy at about 64 lb
- Only 2-year prorated warranty
- About 50 percent usable depth of discharge
With more than 3500 reviews, this is the most thoroughly documented battery in the group, and for a purchase you are strapping into a boat and trusting with a return trip home, that volume of field data is worth something. Reviewers who ran their own discharge tests confirm it actually delivers its rated 100Ah rather than the inflated numbers some budget packs print.
It is a sealed 12V 100Ah AGM with M8 screw terminals and removable insulating caps, measured at 13.1 by 6.9 by 8.6 inches and weighing 63.9 pounds. Maximum discharge current is listed at 1100A for 5 seconds, self-discharge stays under 3 percent per month at 77F, and the operating range runs from -4F to 140F, which is the widest temperature specification on this list.
Series banks and parallel configurations up to 4P are supported, so you can build a 200Ah bank from two of these in parallel if you want more runtime, or run 24V with two in series. Removable terminal caps keep parallel installations tidy and reduce the chance of a short across exposed posts in a wet console.
Customer service is a genuine strength here, offering technical data such as Peukert’s constant and charge efficiency figures that most brands in this category will not. That matters when you are trying to predict runtime, because Peukert’s constant is the correction between the 20-hour rate rating on the label and what you actually get at trolling-motor draw rates.
What to check before you buy
Budget for the physics of lead-acid. With roughly 50 percent usable depth of discharge, treat 100Ah as about 50Ah of real trolling capacity, and remember that usable capacity drops further as discharge current rises. If you need genuine all-day runtime, plan on two of these rather than one.
Plan the lift too. At 63.9 pounds this is a two-person install in most boats, and if your battery box is above a deck level where you cannot get a second pair of hands, factor in whether that weight is a recurring annoyance you will accept every season.
Who should skip it
Skip it if weight, warranty length, or recharge time matters to you. A 2-year prorated warranty is short against lithium packs offering five years, and the charge time is materially slower, which is awkward when you want to turn the boat around the same evening.
There is one more quirk worth knowing. Some smart chargers flag the battery as faulty when a load is attached during charging, so disconnect your trolling motor harness or other significant draw before you put it on charge. A small number of buyers also report packs that would not hold a charge after arrival, which is worth considering against a retailer with a straightforward return policy.

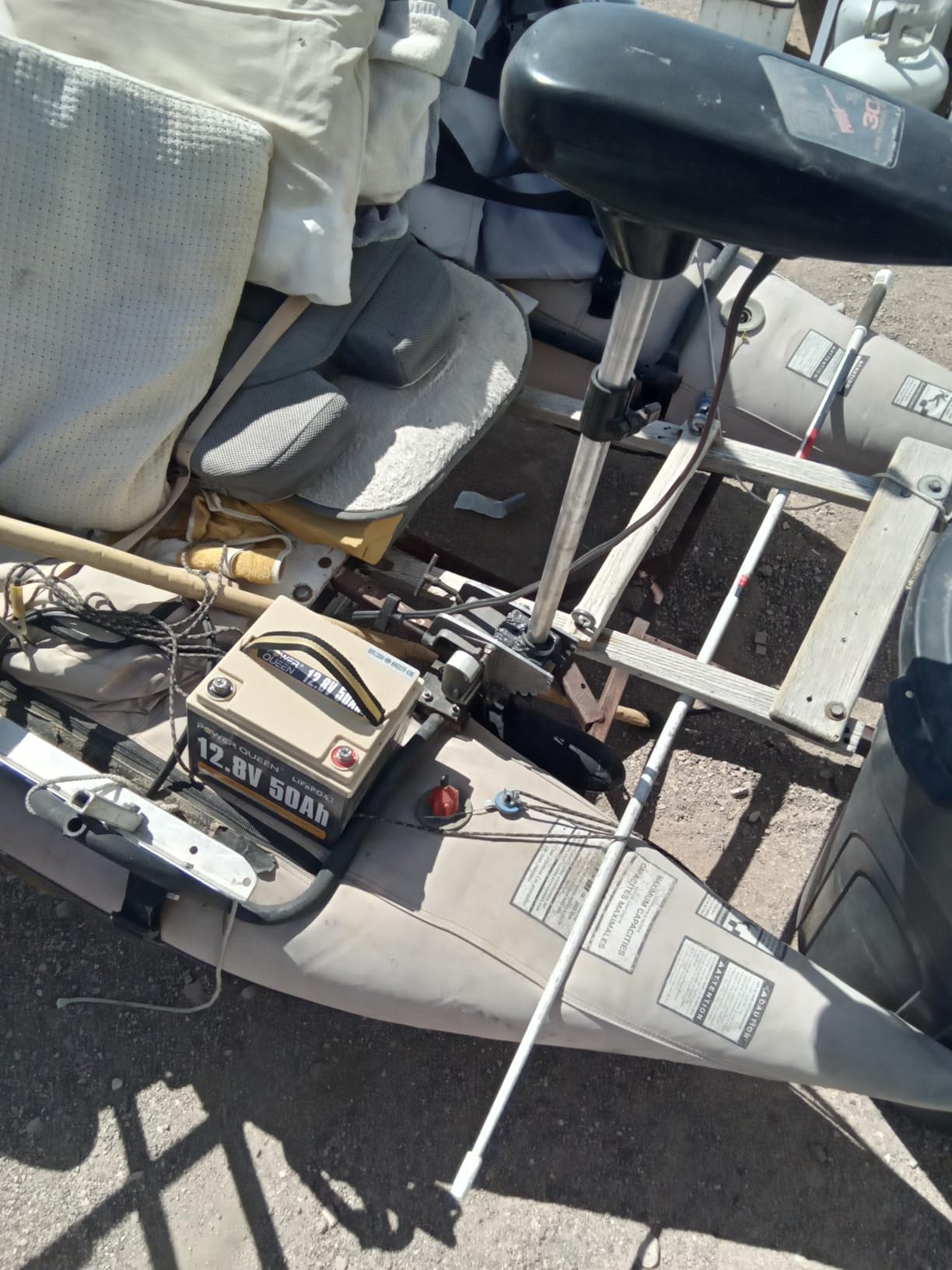

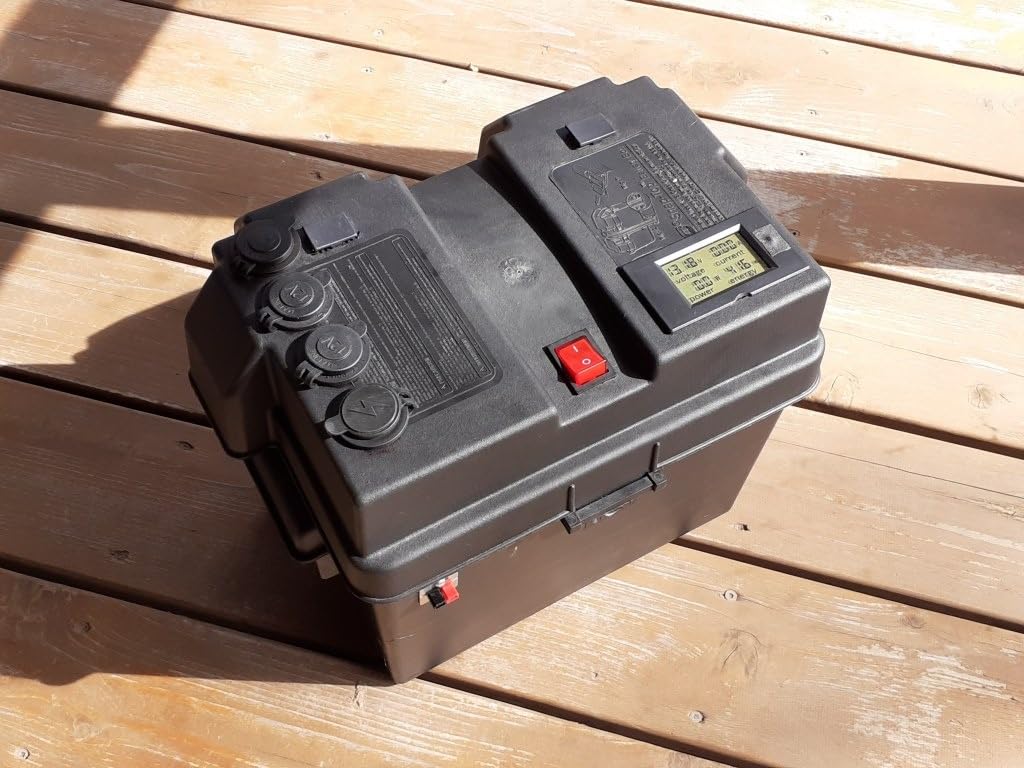

7. Power Queen 12V 50Ah LiFePO4 – Best Lightweight Pack for Motors Under 45lb
Power Queen 12V 50Ah Trolling Motor LiFePO4 Battery for RV Camper Marine
50Ah LiFePO4
11 lb
IP65
50A BMS
5-year warranty
Pros
- Light at 11.6 lb for full 50Ah capacity
- 100 percent usable depth of discharge
- 4000+ cycles at full depth
- Compact case fits most battery boxes
- Expands to 4P4S as needs grow
Cons
- 50Ah suits motors up to 45lb thrust only
- Not a starting battery
- Needs a LiFePO4-compatible charger
Power Queen states this pack plainly for motors up to 45lb of thrust, and that honesty makes it easier to buy than a 50Ah pack marketed for everything. At 11 pounds, it is the joint-lightest option here and roughly one-sixth the weight of a 100Ah lead-acid unit, which is the number that matters when you are lifting a battery into a kayak hatch.
The electrical spec is 12.8V, 50Ah, 640Wh class capacity with a 50A BMS covering overcharge, over-discharge, and overheat. Cycle life is rated at 4000+ deep cycles at 100 percent depth of discharge, with up to 15000 cycles claimed and a 10-year design life. The IP65 rating is a genuine benefit for a boat where spray and rain are constants.
Voltage holds above 12.8V at full capacity, which is exactly the flat voltage curve that keeps a trolling motor from bogging down on the way back to the ramp. That flat discharge curve, combined with 100 percent usable depth of discharge, is why a 50Ah lithium pack can outperform a much larger lead-acid battery in real use rather than just on a spec sheet.
Expansion to 4P4S means you can grow the bank later without changing chemistry, and the case at 6.54 by 7.68 by 6.77 inches fits most standard battery boxes. The included hardware is sensible too: insulating caps for the bolts and M8 terminal bolts, plus a manual, so you are not hunting for connectors on install day.
What to check before you buy
Do the thrust-class check first. If your motor is rated above 45lb, one of these will not carry an all-day push, and the fix is two packs in parallel rather than trying to stretch one. Confirm the parallel cables and fuses are sized for the combined current, not just one battery.
Also confirm your charger. A LiFePO4-compatible charger is required, and using a lead-acid profile reduces both charging efficiency and the service life you paid for. This is the single most common installation mistake with this chemistry and it is entirely avoidable.
Who should skip it
Skip it if you fish long days in heavy current, work thick grass constantly, or run a motor heavier than 45lb. Under sustained high draw a 50Ah pack empties faster than the maths on paper suggests, and a depleted lithium pack recovers more slowly than lead acid, so being conservative here is worth the extra battery.
Review volume is lower than the mainstream lead-acid options, which means less long-term data on how these packs age after several seasons. That is a reasonable trade for the weight saving, but buyers who prefer maximum evidence before switching should consider a heavily reviewed 100Ah lithium pack instead.

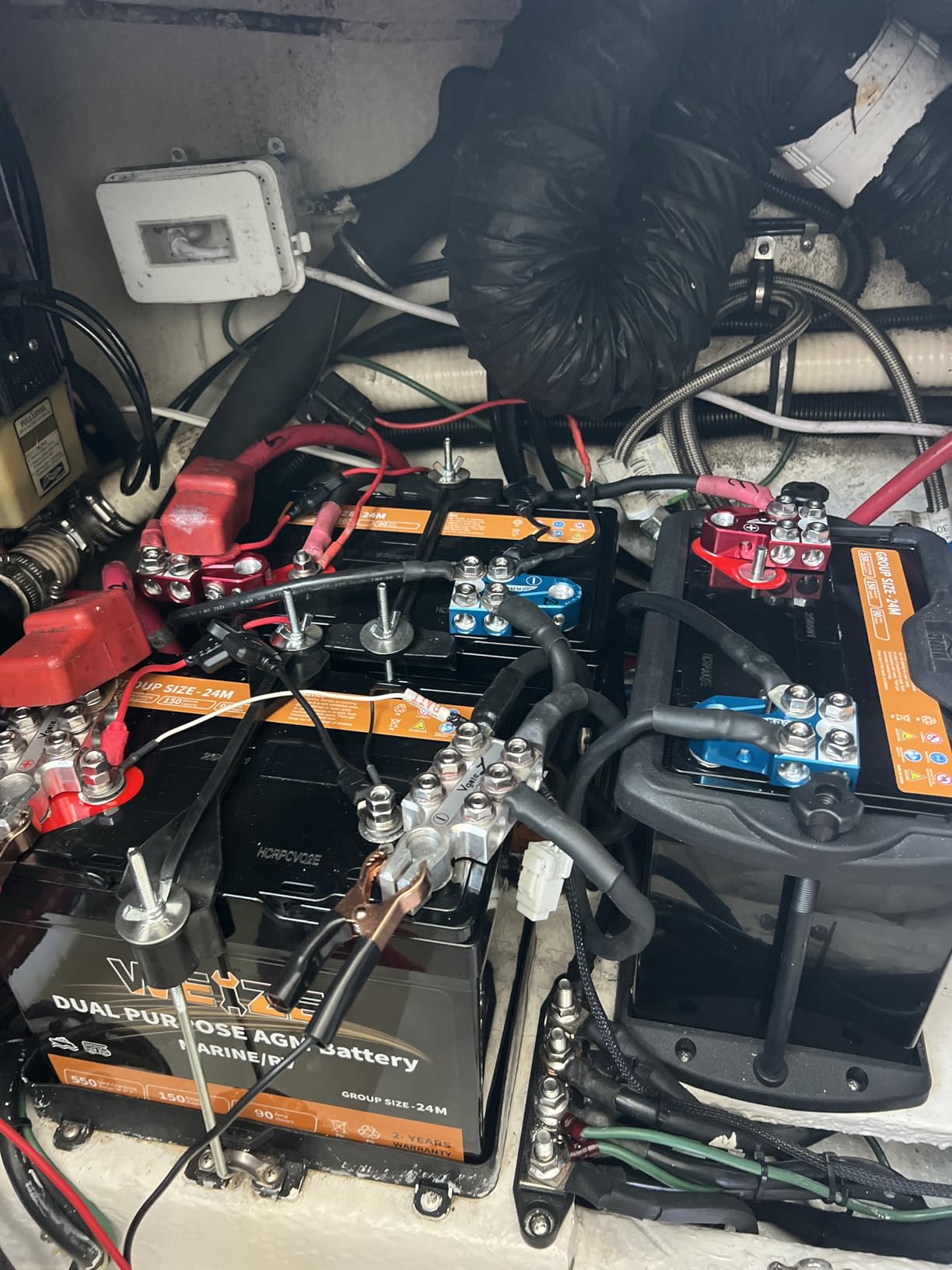

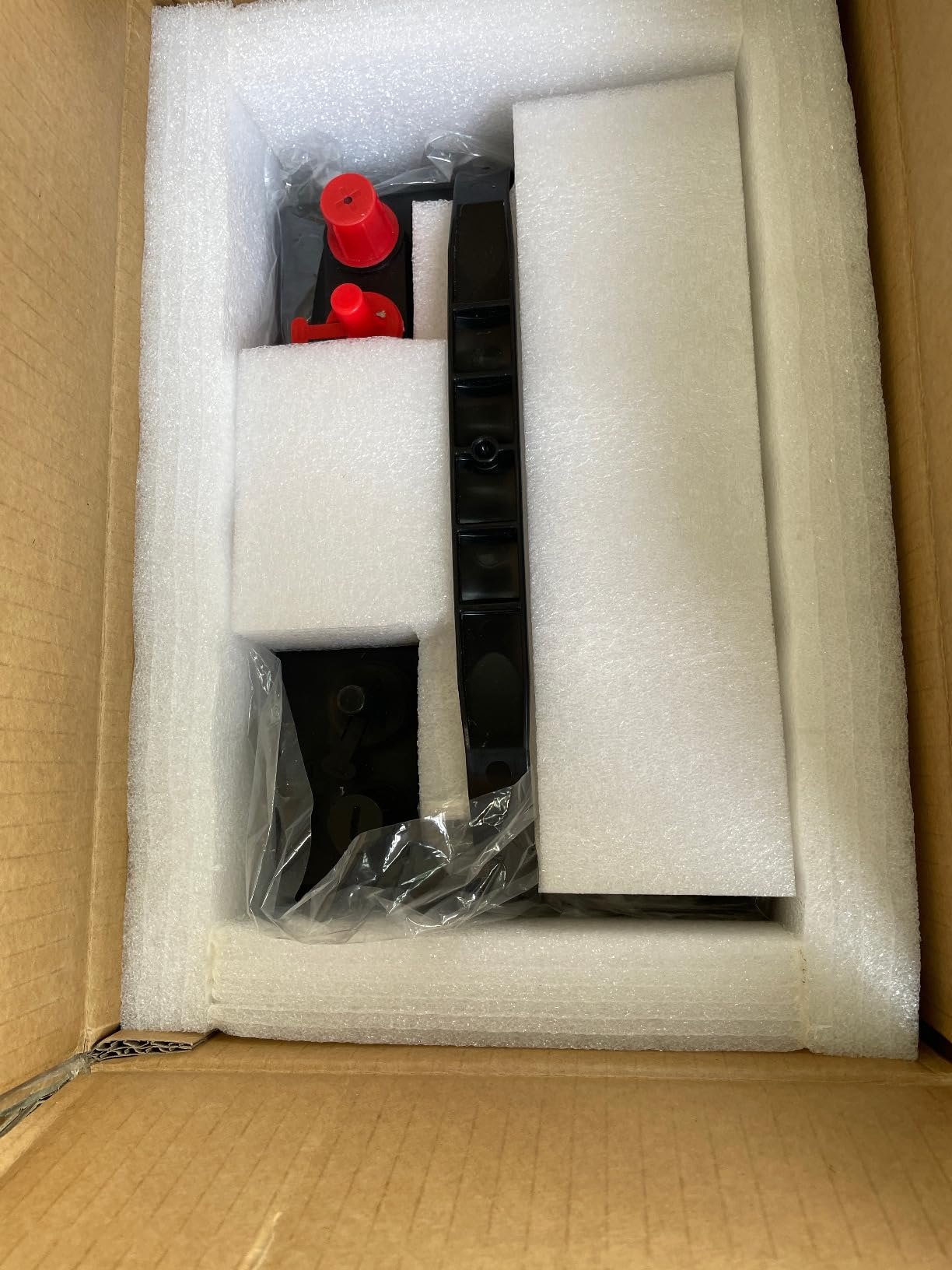

8. Weize Group 24M 12V 90Ah Dual Purpose AGM – Best for Single-Battery Boats
Weize Dual Purpose AGM Battery BCI Group 24M, Starter & Deep Cycle 150RC 550CCA 12V 90AH Sealed Marine & RV Battery
12V 90Ah AGM
550 CCA
150 RC
Group 24M
50.7 lb
Pros
- Starts an engine and cycles as deep cycle from one unit
- 550 CCA and 150 RC give real starting power
- Lighter at 50.7 lb than typical 100Ah AGM marine units
- 20x the vibration resistance of flooded batteries
- Leak-proof valve-regulated design
Cons
- 90Ah is below the 100Ah category norm
- Only 2-year warranty
- Charging must stay under 15.8A
Some boats have room for exactly one battery, and on those hulls the dual-purpose answer is the practical one. This Group 24M unit is rated 550 CCA and 150 reserve capacity alongside 12V 90Ah, so it can turn over an outboard and still serve as a deep cycle bank for the trolling motor, without a separate starting battery taking up a second compartment.
AGM construction with low internal resistance is claimed to deliver twice the cycle life of flooded marine batteries and 20 times the vibration resistance, which matters in a hull that is constantly flexing. It is a BCI Group 24M case at 6.61 by 10.24 by 8.19 inches and 50.7 pounds, which is lighter than most 100Ah AGM marine batteries of similar capacity.
Terminal options are unusually broad, covering DT, SAE or M8 stud, SAE or M8 threaded post, and other configurations, which makes it far easier to match whatever your wiring uses. Polarity is left positive and right negative, so double-check against your existing leads before connecting anything.
Charging spec is explicit: 14.4V plus or minus 0.1V, maximum 15.8 amps, maximum 24 hours per cycle. Following those limits protects the plate structure, and staying inside them is easier when you pick a charger that is designed for AGM rather than one you adapt.
What to check before you buy
Check that 90Ah is enough for your day. It is below the 100Ah norm in this category, and with lead-acid usable depth around 50 percent, the real-world trolling capacity is closer to 45Ah. For a half-day trip that is fine, but for all-day fishing in current, a bigger pack or a second battery is the honest answer.
Verify your charging setup stays inside the 15.8 amp and 24 hour limits, because a charger that pushes harder will cook the battery over time. If your plan is a fast onboard charger, size it to the battery rather than the other way around.
Who should skip it
Skip it if you can physically fit two batteries, because a dedicated starting battery plus a proper deep cycle pack will outlast this arrangement and let each battery do one job well. Skip it if you want the low weight of lithium, since 50.7 pounds is still a substantial lift.
It also carries the lowest average rating in this group at 4.3, with 12 percent one-star reviews reflecting a more mixed owner experience, and the warranty is two years. Buyers who want a proven, heavily reviewed pack with a long service history have better documented options in the 100Ah category.
How Much Capacity Do You Actually Need for All-Day Fishing?
This is the question anglers ask most and answer least. The formula is simple enough that you can do it in your head on the dock: runtime in hours equals usable amp hours divided by your average amp draw. Everything else is estimating those two numbers honestly for your boat.
Worked example for the most common setup: a 100Ah lithium pack is roughly 100Ah usable because the chemistry holds a flat voltage curve and tolerates deep discharge. A 55lb thrust motor drawing about 50 amps at full speed would empty that pack in about two hours. A 100Ah AGM is only about 50 to 70Ah usable, so the same motor gives you roughly 1.4 hours. Neither number describes a fishing day.
Here is why: nobody trolls at full speed for six hours. At half throttle a 55lb motor typically draws somewhere in the region of 15 to 20 amps, and a 100Ah lithium pack then runs eight or more hours. A 50Ah pack on the same motor gives you about three hours. That gap is the whole decision, and it is why the sizing guidance below is keyed to realistic mixed-speed use rather than the headline number on the label.
Sizing by thrust class, for typical all-day use of six to eight hours of mixed cruising and spot lock:
30 to 45lb thrust: one 50Ah lithium pack covers a normal day comfortably on a small boat, and a 100Ah pack gives you a full weekend on one charge.
55lb thrust: 100Ah lithium is the minimum for all-day fishing, and 140Ah or two 100Ah packs in parallel is the comfortable choice if you fish in current or work heavy cover.
80 to 100lb thrust: 140Ah or more, or two 100Ah packs in parallel. A single 100Ah will technically work but leaves no margin for a long run home.
Tournament and multi-day use: 200Ah or more, built from parallel packs, because you are not recharging overnight.
Two rules of thumb that hold across the category: nameplate amp hours are not usable amp hours, and usable capacity falls as your discharge current rises. This second effect, described by Peukert’s constant, is why a lead-acid pack rated at 100Ah behaves more like a 50 to 70Ah pack at trolling motor draw rates, and why lithium wins more than the label comparison suggests.
If you already own batteries and are wondering whether to upsize, our earlier roundup on trolling motor battery picks covers the fit questions in more depth, including the Group size mismatches that trip people up at install time.
Lithium or AGM: Which Chemistry Fits Your Fishing Day?
Lithium wins on almost every measurable axis once you own one, so the honest question is not which is better but whether your boat and your budget suit the change. Here is the comparison we use when a reader asks us to choose.
Weight. The 100Ah lithium packs here run 21.6 to 23.8 pounds. The 100Ah AGMs run 63.9 to 68 pounds. On a bass boat replacing two AGMs with a pair of lithiums, you are looking at roughly 90 pounds removed from the hull, and that is before you account for the improved handling and the easier launch.
Usable capacity. Lithium delivers close to 100 percent of its rating usably. AGM realistically delivers 50 to 70 percent. This is the single biggest reason a lithium pack lasts an all-day trip when an equally rated lead-acid pack does not.
Cycle life and service. The lithium packs here are rated from 4000 cycles at full depth of discharge up to 15000 at shallower depths, with warranties of three to five years. The AGMs carry one to two years. Over a decade of seasonal use, the lithium math wins even at a higher purchase price, and the two AGMs in this list will likely be replaced during that window.
Charging. Lithium accepts charge far faster and tolerates partial charges without damage, which suits anglers who top up over lunch. Lead acid wants a long, slow charge to full, and deeply depleting one repeatedly shortens its life.
Where AGM still makes sense. A single-battery boat that also starts the outboard, a buyer whose total budget is fixed, or an angler who fishes two hours from the ramp on a small budget. In those cases the Weize dual-purpose unit or the Renogy 100Ah is a defensible purchase. Everywhere else, lithium is the better tool for all-day work.
Voltage, Wiring and Battery Group Size
Voltage matching is the part people get wrong most often, and it is unforgiving. A 12V trolling motor needs a 12V bank, a 24V motor needs 24V, and a 36V motor needs 36V. Series wiring adds voltage, parallel wiring adds capacity. Those are the only two rules, and mixing them up is how batteries get cooked.
For a 24V system, two 12V batteries in series give you 24V. For 36V, three 12V batteries in series. Series connections need to be as close to identical as possible, because a weaker battery in a series bank drags the whole string down and you get imbalance that ends in a damaged pack.
Modern builds increasingly skip series wiring entirely. A single 24V or 36V lithium pack delivers the same voltage in one box, which removes imbalance risk and cuts weight dramatically compared with three lead-acid batteries in series. Several packs in this list expand up to 4P4S, which covers 24V, 36V, and 48V configurations from one battery platform.
Group size tells you the physical case, not the capacity. Group 24, 27, and 31 are case dimensions in inches, and they correspond loosely to 24, 27, and 31Ah in flooded lead-acid chemistry, which is exactly where lithium breaks the link. A 100Ah lithium pack is frequently a Group 24 or Group 31 case, so group size tells you what fits, not what it delivers. Always match the case to your tray and read the amp hour label separately.
Two practical checks before ordering: confirm your terminal type, since marine, L, and M8 post terminals are not interchangeable without an adapter, and confirm the case height, since a battery that is a fraction of an inch too tall will not seat under a locking lid. Both mistakes are discovered after the battery has shipped.
Charging: The Charger Is Part of the Purchase
Budget for a charger when you buy a lithium pack. A lead-acid smart charger is not a substitute, because LiFePO4 needs a lithium profile charging at 14.4 to 14.6V in constant current and constant voltage stages. Charging a lithium pack with the wrong profile reduces usable capacity and shortens service life, and the damage is not always obvious at first.
For the marine packs here, look for a charger that handles lithium chemistry explicitly, and size it to your bank. If you run two packs in parallel, the charger needs to deliver the combined current at the right stage voltages. Onboard chargers are worth considering for tournament setups where you are recharging between days rather than at the trailer.
Two cold-weather notes that matter in northern waters: charging is disabled below freezing by design on most of these packs, and that cutoff is a protection, not a fault. Several models here specify charging cut-offs at 32F, 19.4F, and below, with discharge cut-offs around -4F, and charging resuming once the pack warms. In practice that means you cannot top up charge in an unheated boat at dawn in January, so plan to charge on shore power or from your vehicle instead.
Saltwater, Corrosion and Cold Weather
Saltwater is a genuine filter rather than a preference. Salt spray and humidity attack terminals, bus bars, and mounting hardware, and lead-acid chemistry suffers more over time because of the venting and acid involved. Every lithium pack in this group is sealed and maintenance free, which removes that failure mode entirely.
Look for an IP rating. The LiTime 100Ah, LiTime 50Ah, and Power Queen 50Ah all carry IP65 waterproofing, and the LiTime 100Ah is additionally described as salt resistant. For exposed decks and open cockpits, an IP rating matters more than any app feature.
Two more coastal considerations. First, corrosion on the terminals and cables is your responsibility, not the battery manufacturer’s, so clean and protect them seasonally regardless of chemistry. Second, cold water drains batteries faster than warm water does, because a lithium pack at 40F delivers noticeably less usable capacity than the same pack at 70F, so size up if you are fishing northern saltwater in shoulder seasons.
How to Tell a Failing Battery From an Undersized One
If your runtime has dropped, the cause is one of three things and the diagnosis takes a few minutes. Start by checking voltage under load: a healthy 12V lithium pack idles near 13V and holds above 12V under motor load, while a tired lead-acid pack sags noticeably the moment the motor is switched on. A pack that reads fine at rest and collapses under load is failing, not undersized.
Next, compare charge in to charge out. If you put in a full night of charging and come back with a pack that is meaningfully below full, the pack or the charger is at fault. If it reaches full every time and still delivers less fishing time than it used to, the pack has lost capacity and needs replacing.
Finally, check the pattern of your draw. If runtime collapsed suddenly, suspect a cell or a connection. If it declined gradually over a season or two on a lead-acid pack, that is normal capacity fade and the answer is a replacement, not a bigger bank. Only after ruling out failure should you conclude the battery was simply too small for how you fish.
Frequently Asked Questions
What is the best battery to run a trolling motor?
A 12V 100Ah LiFePO4 deep-cycle battery is the best all-round choice for motors up to 55lb of thrust. Step up to 140Ah or two batteries wired in parallel for 80-100lb motors, and choose AGM only when upfront cost dominates your budget or a single battery must also start the engine.
How long will a 100Ah battery run a 55lb trolling motor?
About two hours at a full 50 to 55 amp draw on lithium, and roughly 1.4 hours on AGM using its 50 to 70 percent usable capacity. In practice you rarely run full speed. At half throttle a 100Ah lithium pack runs eight or more hours, which is what covers a normal fishing day.
What is the longest-lasting trolling motor battery?
LiFePO4 packs rated at 4,000 to 15,000 cycles outlast AGM at roughly 500 to 1,000 cycles by four to five times. Among the packs reviewed here, the LiTime 12V 100Ah and the Power Queen 12V 50Ah combine 4,000+ cycle ratings with five-year warranties, delivering the longest service life per dollar.
How many batteries do you need to run a 24 volt trolling motor?
Two 12V batteries wired in series for 24V, and three for 36V. A single 24V or 36V lithium pack achieves the same voltage in one box with far less weight, removes the cell imbalance risk of series strings, and is increasingly common on modern builds.
Is 100Ah enough for a trolling motor?
For motors up to 55lb thrust, 100Ah is enough for a full day of mixed-speed use provided it is a lithium pack. On AGM the same label gives you only about 50 to 70Ah of usable capacity, so a 100Ah AGM behaves more like a 50Ah lithium pack and falls short for all-day fishing.
Do trolling motor batteries need a special charger?
Lithium iron phosphate batteries need a charger with a LiFePO4 profile charging at 14.4 to 14.6V in constant current and constant voltage stages. A lead-acid charger is not a safe substitute and reduces usable capacity and service life. AGM batteries use standard marine smart chargers, so budget for a lithium charger as part of the purchase.
Conclusion
The best trolling motor batteries for all day fishing come down to one decision and two measurements. If your motor is 55lb thrust or lighter and you can fit a lithium charger, the LiTime 12V 100Ah LiFePO4 pack is the pick, because 100Ah is genuinely usable, it weighs 22.2 pounds, and the Bluetooth app tells you what you have left before it matters. For smaller boats and kayaks, the LiTime 50Ah or Power Queen 50Ah cover a full day at roughly a third of the weight.
Measure your tray, confirm your terminal type, and total the charger into your budget before you order. Those three checks prevent nearly every battery problem anglers run into, and they take five minutes with a tape measure. If your boat genuinely only has room for one battery, the Weize Group 24M dual-purpose unit is a reasonable compromise, and the Renogy 100Ah AGM remains the best-documented lead-acid option for buyers working to a fixed budget.
