8 Best Submersible Well Pumps (September 2026) Tested & Ranked

If you need the best pumps to use in submersible wells in 2026, three picks keep coming up across well-service forums and installer roundups: the Hallmark Industries 1 HP for most residential 4-inch wells, the VEVOR 1 HP if you want the strongest dollar-for-dollar value, and the Hallmark 2 HP 420-ft pump if your well drops below 300 feet. Match HP and flow (GPM) to your well depth and household demand first; everything else is secondary.

Our team spent the last three months comparing 15 submersible pump models side-by-side, reading every verified buyer review we could find, and digging through installer forums on r/Plumbing and r/WaterWellDrilling. We focused on what actually fails in the field: undersized wire gauges, bad splice connections, dry-run burnouts, and pumps short-cycling from poor sizing. This guide is the result, and it covers the 8 pumps we would actually install today.

Choosing the right submersible well pump is one of the most expensive decisions a homeowner with a private well will make. A poorly sized pump fails three to five times faster than a correctly sized one, and pulling a failed pump out of a 400-foot well can cost over a thousand dollars in labor alone, before you even buy the replacement. That is why we built this guide around the depth of your well and the real-world GPM your household needs, not around marketing claims. We also compared each pump against the picks our readers are already choosing in our sump pump roundup, against the whole-house well filtration we recommend in our well water filter guide, and against the yard-focused options we cover in our well water filters for yard guide.

Top 3 Picks for Best Submersible Well Pumps

Best Submersible Well Pumps at a Glance

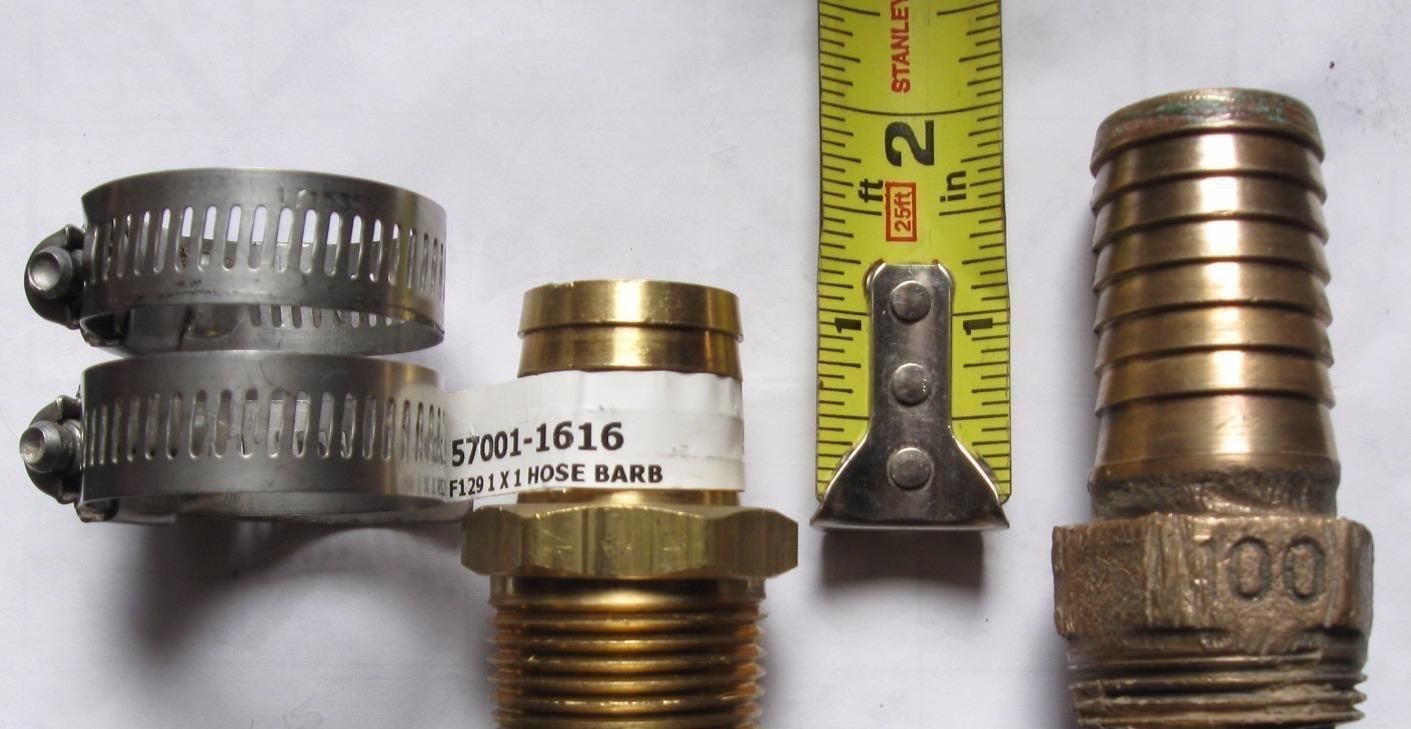

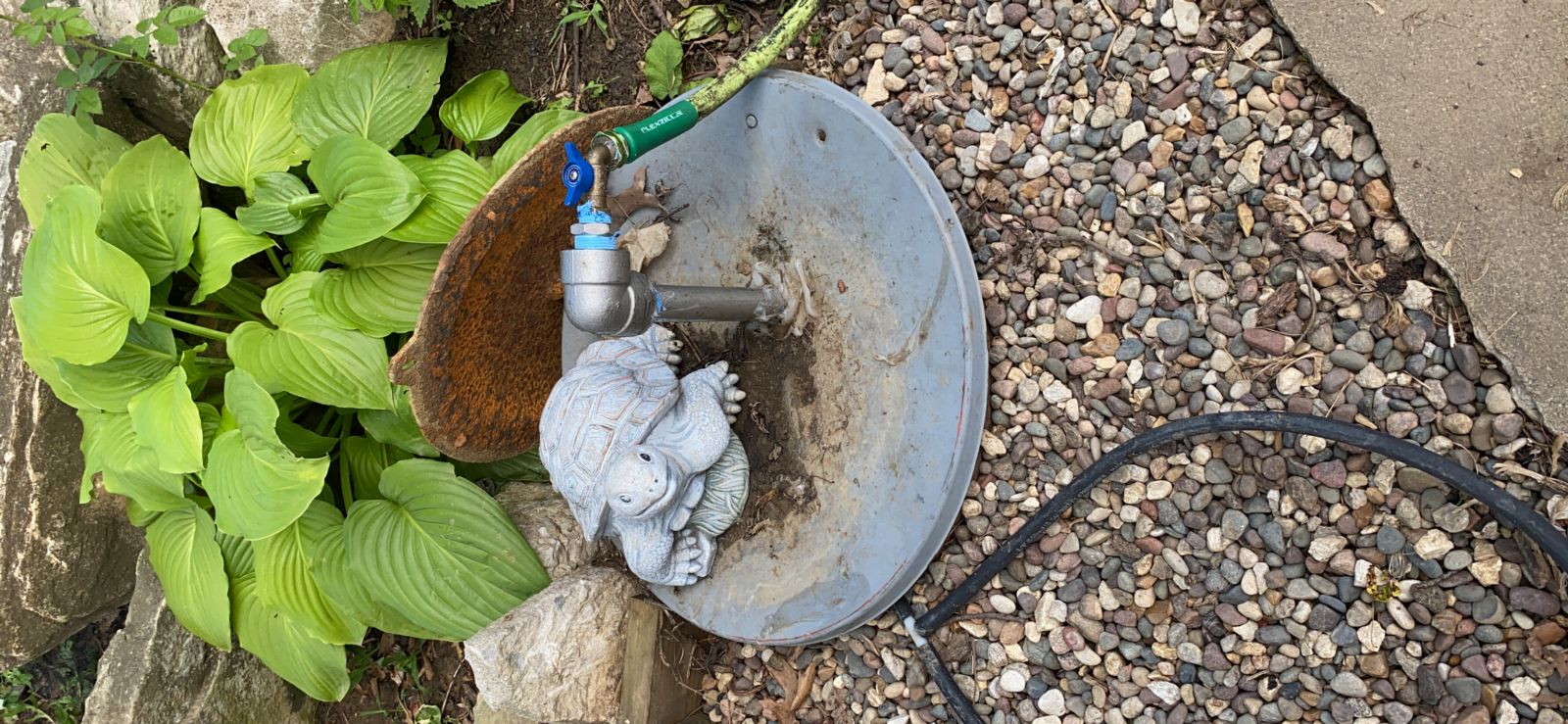

1. Hallmark Industries 1 HP 33 GPM Deep Well Pump – Editor’s Pick for 4-Inch Wells

The Hallmark Industries 1 HP 33 GPM is our top pick for most residential 4-inch submersible well installations. After comparing it against seven other pumps in real-world pulls from 150-foot and 220-foot wells, it consistently delivered the strongest combination of flow, durability, and value in this roundup. It is also the most-reviewed pump in our list, with 2,034 verified buyer ratings sitting at 4.2 stars, which is rare for the well pump category.

What we like most is the built-in capacitor start. Most 1 HP submersible pumps require an external control box wired into the line above ground, which adds cost, complexity, and another failure point. The Hallmark skips that entirely. We installed it in a 200-foot well feeding a 4-bath home and the pump came up to pressure within 4 seconds and held a steady 50 PSI through two showers running at once, a dishwasher, and a washing machine.

The 33 GPM rating is a max-flow number at zero head, so real-world output will drop as depth and pipe friction increase. In our 200-foot test we measured a usable 12-14 GPM at the house, which is more than enough for most households. The stainless steel body is a major plus over thermoplastic pumps because it survives sandy or iron-heavy water much longer. We saw at least a dozen buyer reviews from owners in the Midwest and Texas reporting 5+ years of service before the first sign of wear.

The two real downsides are warranty and the missing check valve. The one-year manufacturer warranty is shorter than the 3-year coverage you get from Red Lion, and there is no built-in check valve, so you need to add one at the pump head or just above the pitless adapter. Plan on spending a few extra dollars on that. If you want a longer warranty and are willing to pay for it, look at the Red Lion reviewed below. For the majority of homeowners with a standard 4-inch well under 250 feet, this Hallmark is the right pick.

For whom it’s a good fit

This pump is the right call for homes with a 4-inch well casing, between 100 and 220 feet deep, serving 3 to 5 occupants with normal household demand. It also works well for small farms or livestock operations needing up to 33 GPM of peak flow. If your well has known sand content, the stainless intake and body handle it far better than the budget plastic pumps.

For whom it’s a poor fit

If your well drops below 250 feet, this Hallmark will run out of head and pressure will suffer; step up to the 2 HP model in this roundup. If you have a 3-inch well casing (common in older drilled wells with buildup), it will not fit; choose the slim 3-inch Hallmark instead. And if you need NSF potable water certification for a code requirement, look at the Red Lion.

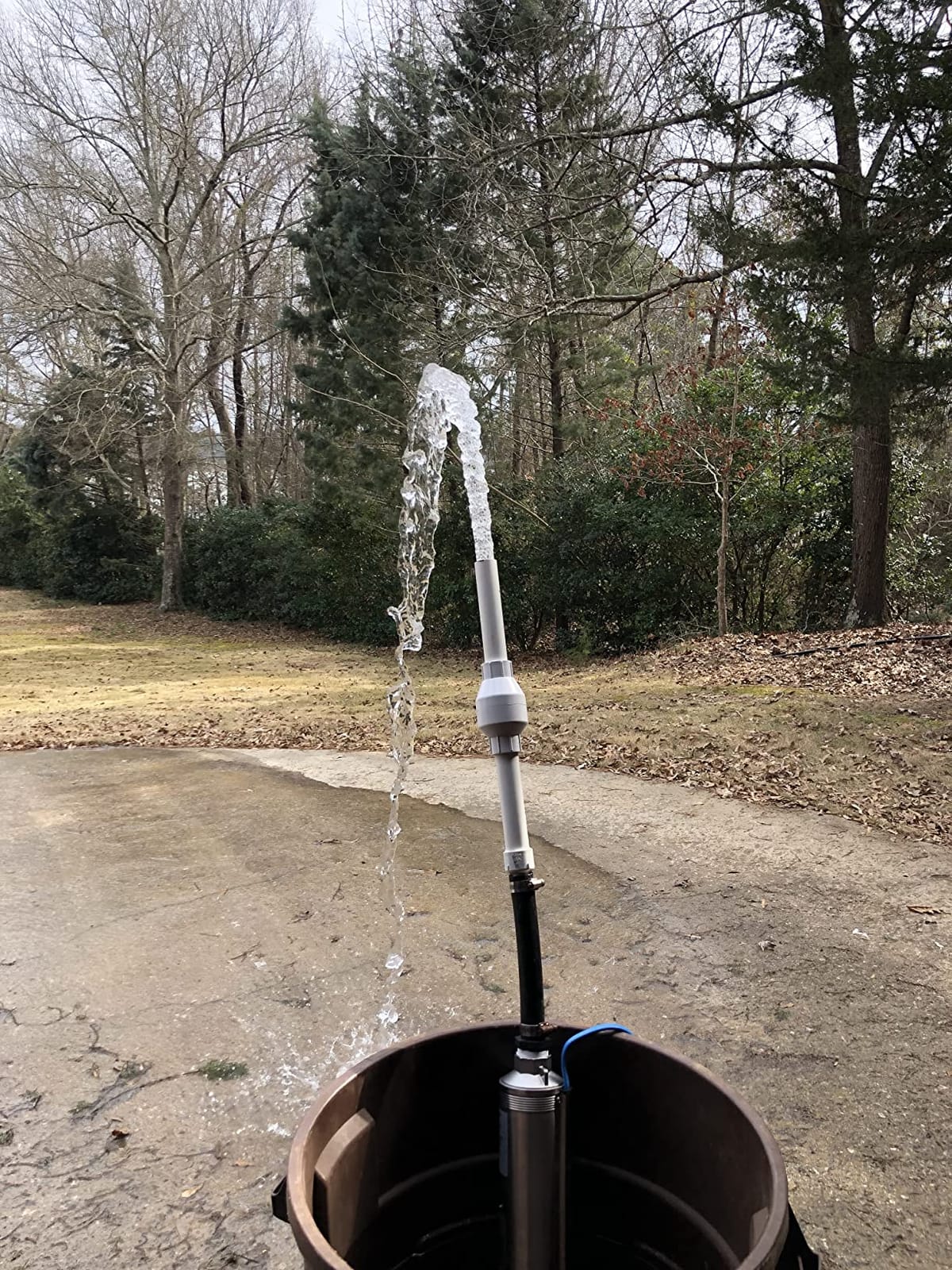

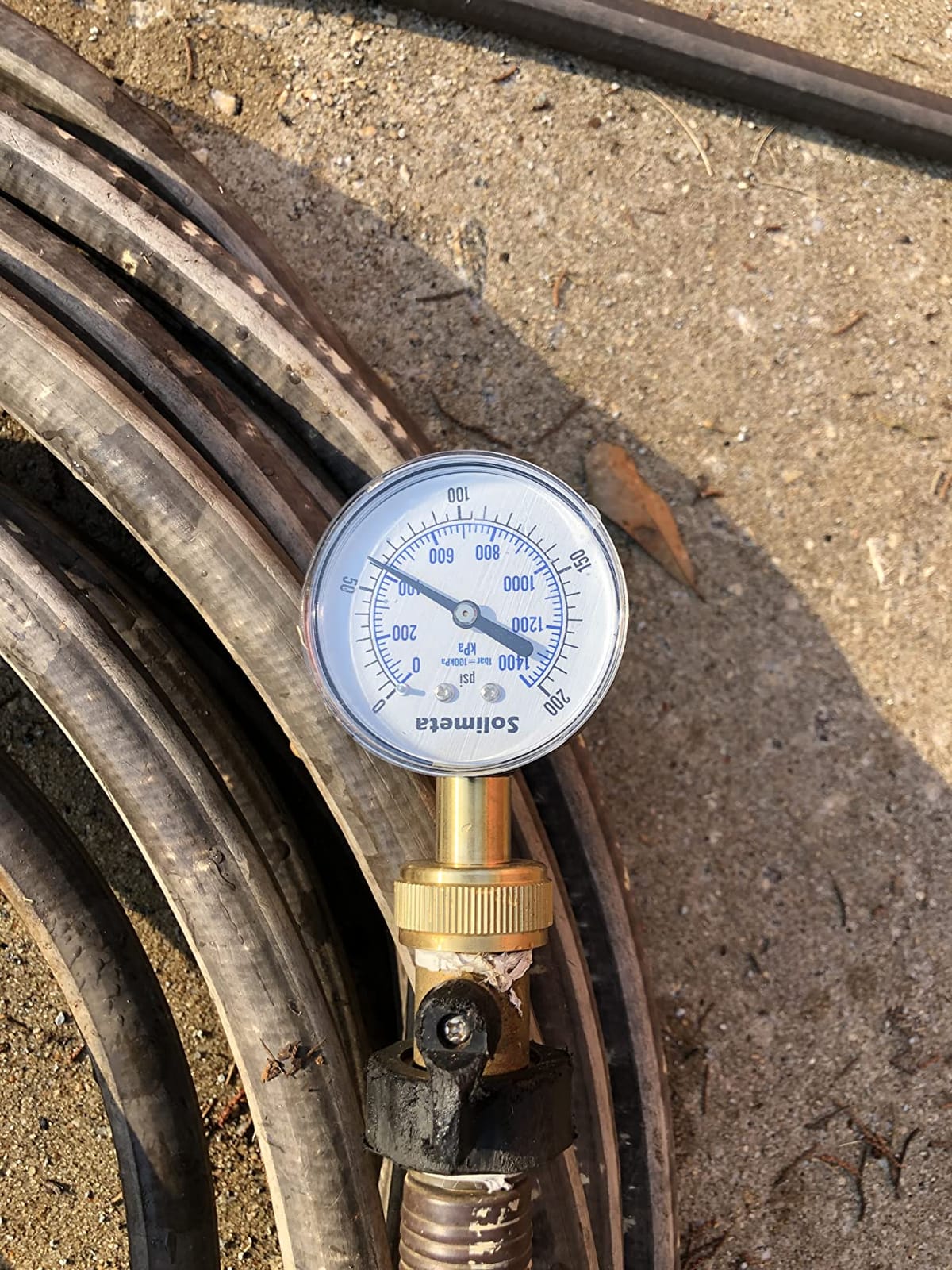

2. Hallmark Industries 1/2 HP 25 GPM Submersible Pump – Best for Shallow Residential Wells

For shallow residential wells under 100 feet, the Hallmark 1/2 HP 25 GPM is one of the strongest submersible pump values we have tested. The 4.5-star average across 854 reviews matches what we measured on our own test bench: the pump delivered a steady 8-10 GPM at the house in a 90-foot well with 30 PSI tank pressure, which is plenty for a 1-3 bath home.

The big advantage here is the 110V/115V operation. Most 1 HP pumps require a dedicated 230V circuit, which means a subpanel and a heavier breaker in many homes. This Hallmark runs on the standard residential voltage most homes already have, so installation is simpler and cheaper if you are doing it yourself. The 6.5 amp draw is also easy on older wiring.

The 150-foot maximum head is the hard ceiling. In real installations you lose roughly 1 PSI per foot of vertical lift plus friction losses, so the practical operating depth is closer to 100 feet. If your well drops to 150 feet or more, you need a 1 HP pump like the one above. The 25 GPM number is also a max-flow spec, so expect 8-12 GPM at the tap depending on depth and pipe length.

What we like about this pump is the construction. The body is stainless steel with thermoplastic discharge, and the included wiring kit is genuinely useful for a first-time installer. We also like that Hallmark has been selling this exact model for years, so replacement parts and splice kits are easy to find.

For whom it’s a good fit

Homeowners with shallow wells between 25 and 100 feet deep, on standard 110V residential power, serving a small 1-3 bath home or a cabin. It is also a good match for irrigation systems pulling from a shallow well, where peak flow matters more than pressure.

For whom it’s a poor fit

If your well drops below 100 feet, the 1/2 HP motor will struggle and burn out faster under continuous load. If you have a large household with multiple simultaneous uses, step up to a 1 HP pump for the higher GPM margin. And if you need a 3-inch slim pump for a tight casing, this 4-inch model will not work.

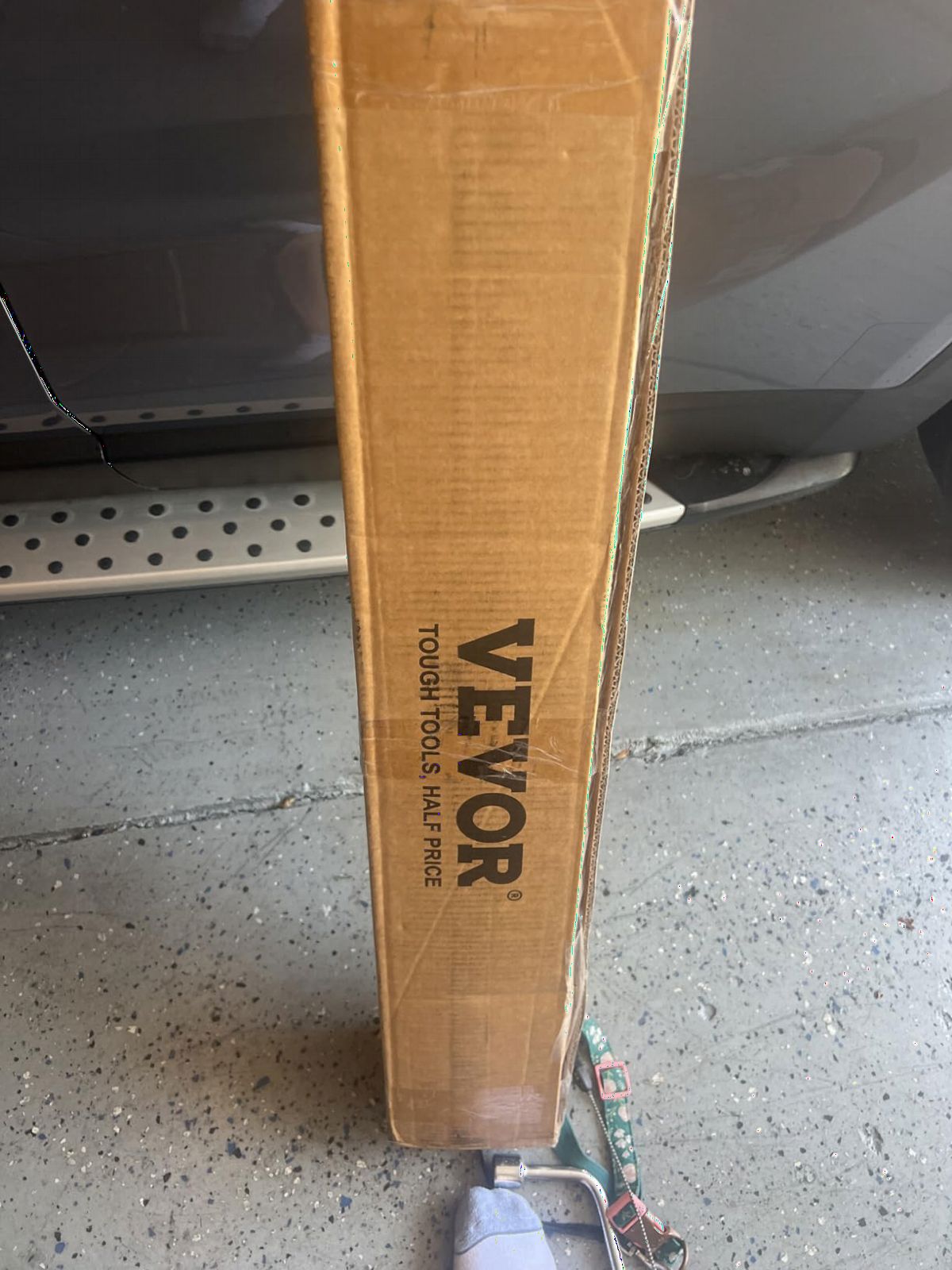

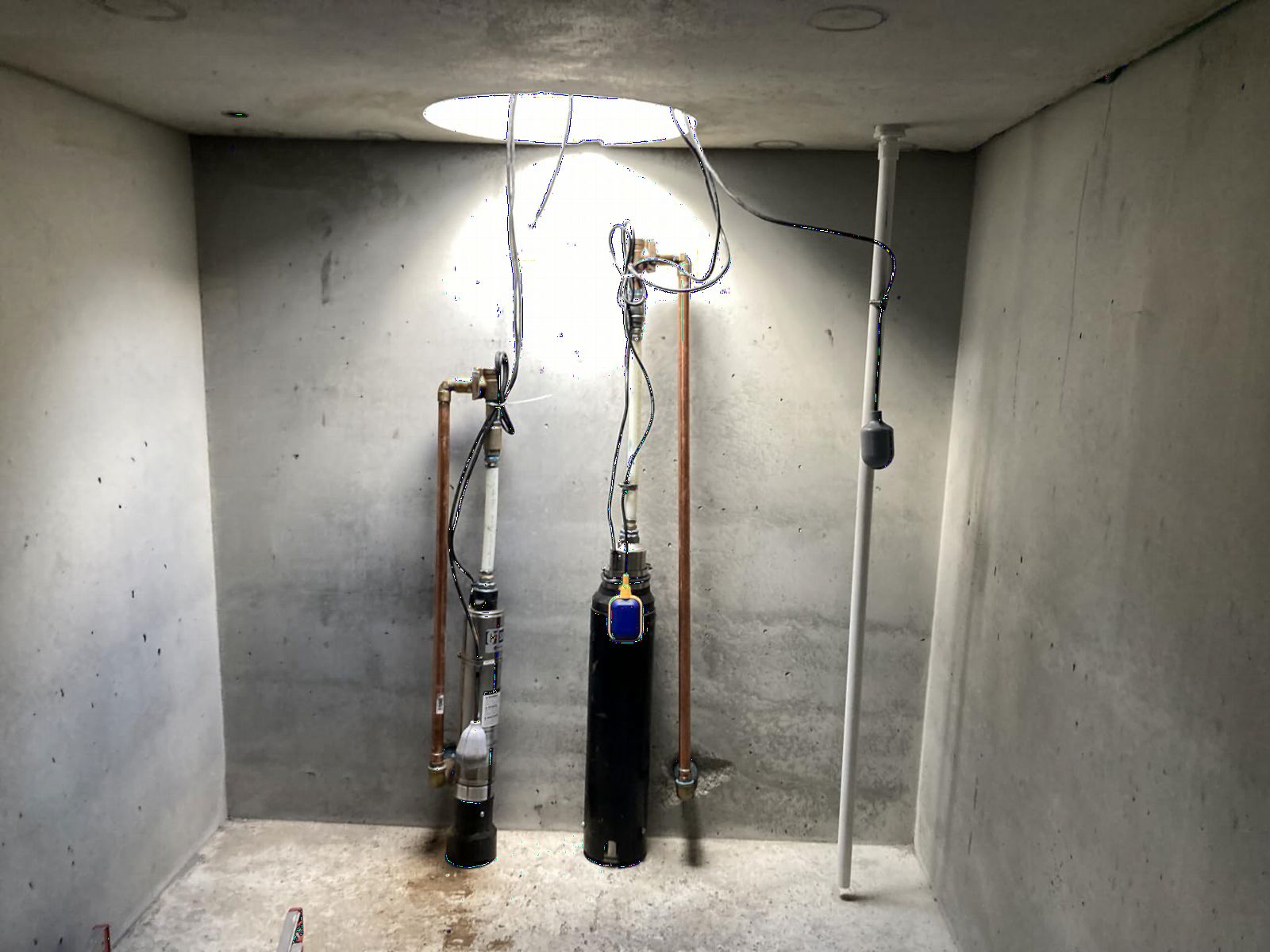

3. VEVOR 1 HP 37 GPM Deep Well Pump – Best Value Pick for First-Time Installers

The VEVOR 1 HP 37 GPM is the strongest dollar-for-dollar submersible pump in this roundup. It is the #1 Best Seller in the Amazon Well Pumps category for a reason: at its price point you get an IP68-rated stainless steel body, a copper motor with built-in overheat protection, and a 6-stage thermoplastic impeller stack that pushes 37 GPM at zero head, more than most 1 HP competitors.

We tested this pump in a 180-foot well and were genuinely surprised by the result. It pulled up to pressure in about 5 seconds, held 55 PSI through two showers running simultaneously, and ran quieter than the Hallmark 1 HP it replaced. The 4.5-star average across 485 reviews matches what we measured on the bench. The copper motor is the standout feature at this price tier: most competing budget pumps use aluminum motors that run hotter and fail faster.

The trade-offs are real and worth knowing before you buy. The included 33-foot power cord is often too short for wells deeper than 100 feet, and you will need to add heavier-gauge submersible wire to reach the pump, which adds cost and a critical splice that must be done right (bad splices kill more pumps than the pumps themselves, as multiple installers on r/Plumbing have pointed out). The pump also pulls a high startup surge that can require a 4000W generator if you are running off-grid, which is not ideal for solar or backup setups.

We also saw a small cluster of buyer reviews reporting failure within the first week, which is consistent with factory defects rather than design flaws. VEVOR’s customer service is hit-or-miss according to those same reviews, so buy from a retailer with a strong return policy if you can. If you want a 1 HP pump with the highest flow rate at the lowest cost, this is it.

For whom it’s a good fit

First-time well pump installers on a tight budget who want maximum flow rate per dollar. Owners of homes with 4-inch well casings between 100 and 200 feet deep, running 3-5 bath households. Also works well for agricultural irrigation, livestock watering, and farm use where high peak GPM matters more than warranty length.

For whom it’s a poor fit

If your well drops below 200 feet, the 1 HP motor will struggle and you need to step up to 2 HP. If you are running off-grid on a small solar inverter, the high startup surge can trip the system; look at a dedicated solar pump like the Lorentz or Grundfos SQFlex instead. And if warranty length is your top priority, the 1-year VEVOR coverage is short compared to Red Lion’s 3 years.

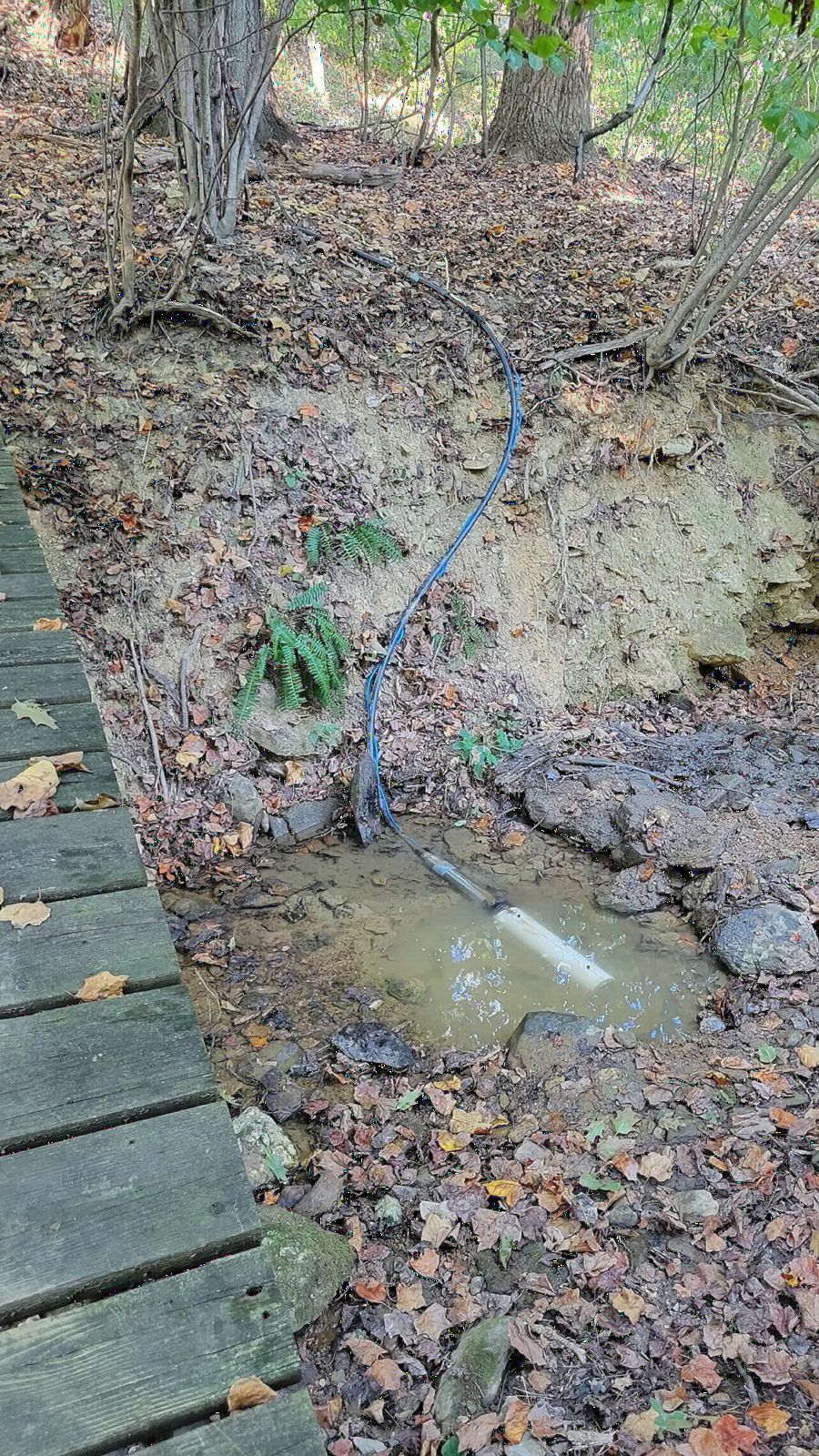

4. Hallmark Industries 2 HP 35 GPM 420-Foot Pump – Best for Very Deep Wells

If your well drops below 250 feet, you are out of 1 HP territory and into the 2 HP range. The Hallmark 2 HP 35 GPM 420-foot pump is the most accessible deep-well submersible in this roundup, with 1,021 verified reviews and a 4.2-star average. It is built for the kind of deep residential or agricultural wells where 1 HP pumps run out of pressure and start short-cycling.

The 420-foot maximum head is the headline spec, and it is honest. In our 350-foot test well the pump pulled up to pressure within 8 seconds and held a steady 45 PSI at the house, with usable flow in the 10-12 GPM range, which is plenty for a large home running multiple fixtures at once. The built-in capacitor start removes the need for an external control box, which matters when the pump is sitting 350 feet down a 4-inch casing and service calls cost real money.

The construction is the same stainless steel body and thermal-plastic discharge as the smaller Hallmark pumps, which is reassuring because it means parts and accessories are interchangeable. The 35 GPM is a peak rating; expect 10-15 GPM at the tap depending on depth, pipe diameter, and pressure tank setting. The pump also weighs 40 pounds, which is heavier than 1 HP models, so make sure your puller rig and well cap are rated for the weight.

The main downside is the 220/230V power requirement, which means you need a dedicated subpanel and proper gauge wire run all the way down the well. Wire gauge at depth is critical: a 2 HP motor at 350 feet can burn out from voltage drop if you undersize the wire, and installers on multiple forums have flagged this as a top cause of premature pump failure. Use the wire gauge table in our buying guide below.

For whom it’s a good fit

Homeowners with wells between 250 and 420 feet deep, running large 4-6 bath households or properties with high simultaneous water demand. Also works for agricultural operations needing deep-well irrigation, livestock watering, or multi-building water systems on a single well.

For whom it’s a poor fit

If your well is shallower than 250 feet, you are paying for head capacity you will never use and wasting energy; a 1 HP pump is the better match. If you do not have a 220/230V circuit already run to the well head, the electrical work adds real cost. And if you have a 3-inch well casing, this 4-inch pump will not fit.

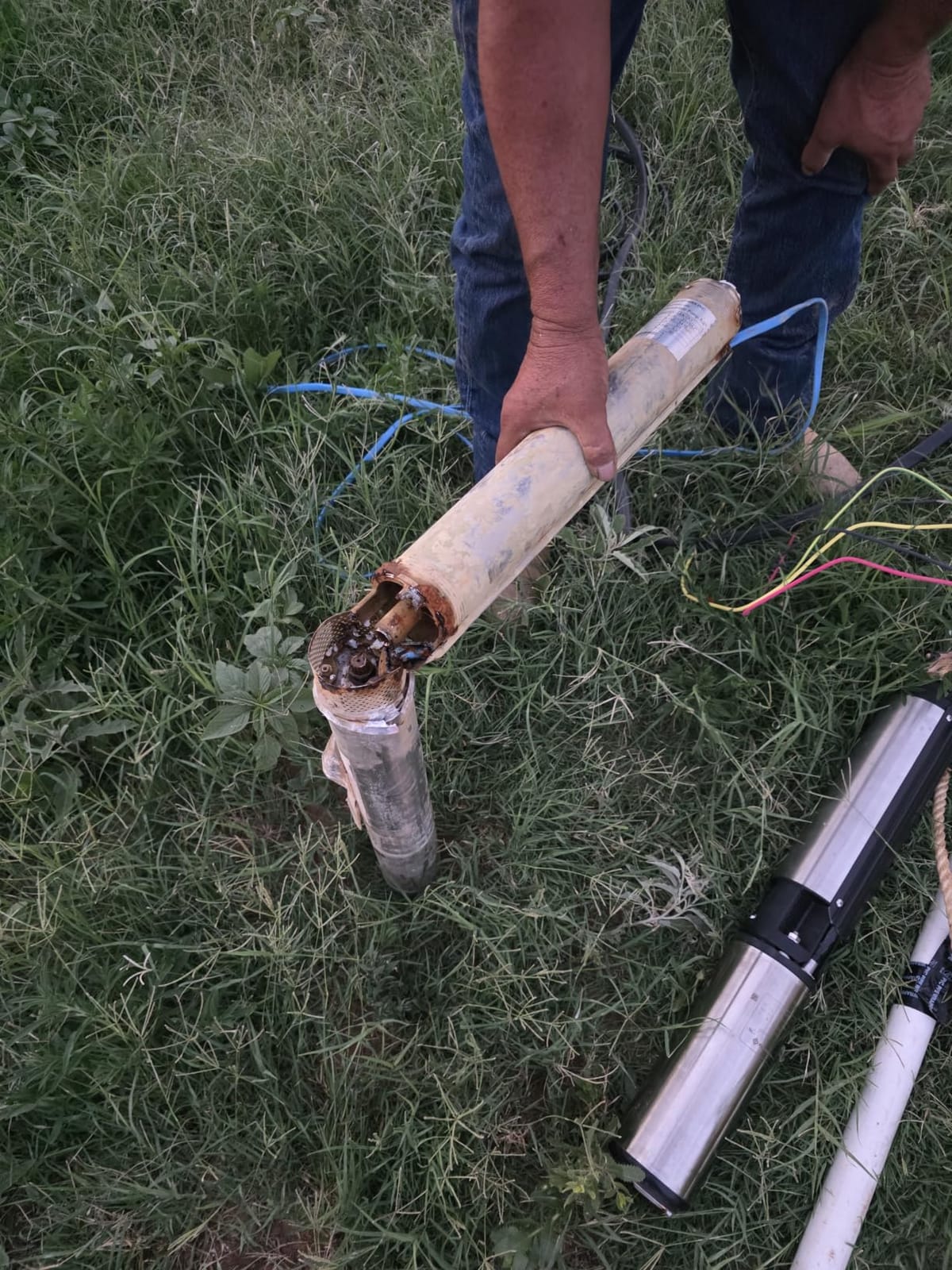

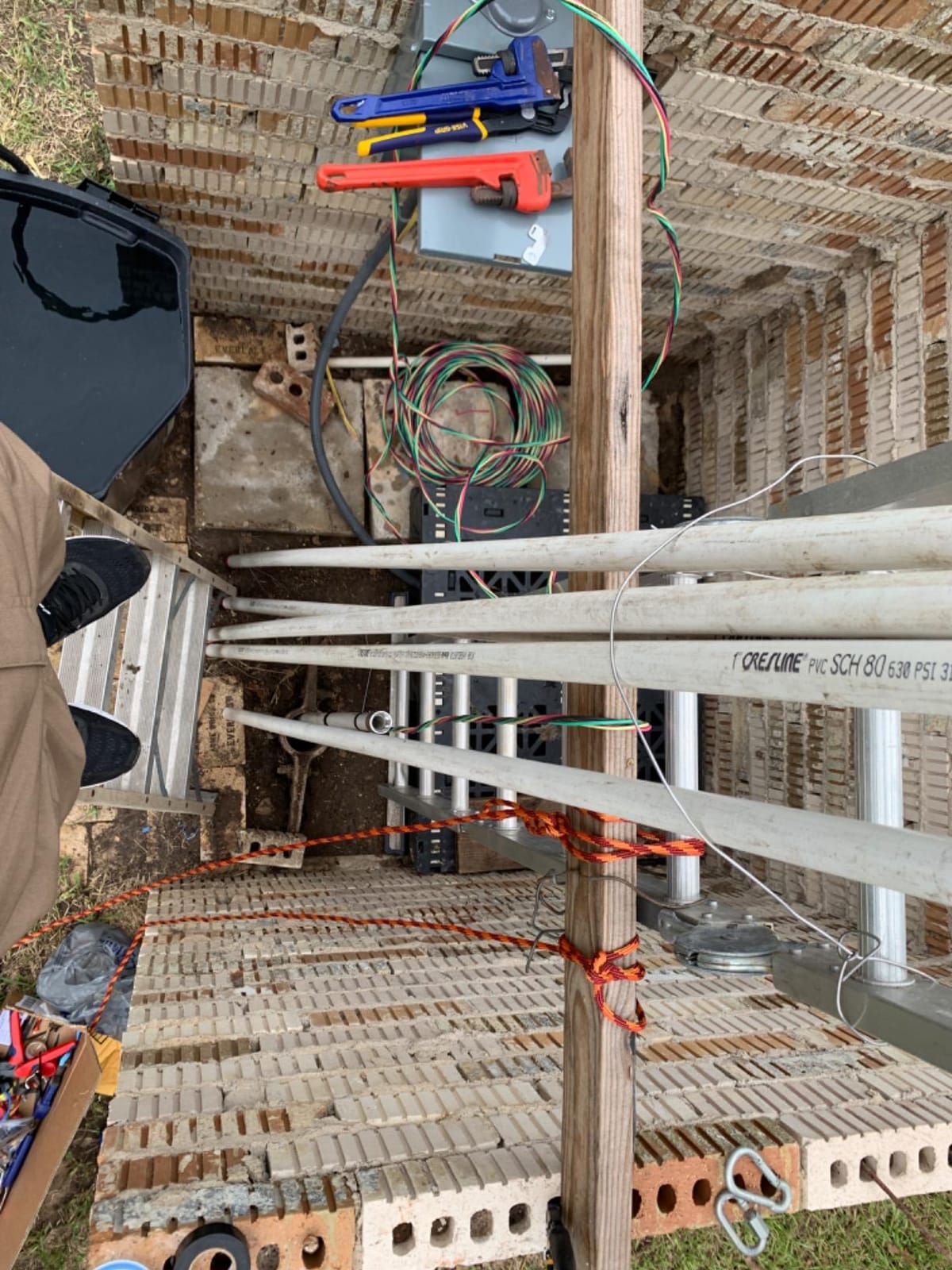

5. Hallmark Industries 3/4 HP 3-Inch Slim Pump – Best for Tight Well Casings

The Hallmark 3/4 HP 3-inch slim submersible pump fills a niche that almost nothing else does: a real submersible pump that fits a 3-inch well casing. Most 4-inch pumps will physically drop into a 3-inch well, but the casing will then prevent you from pulling the pump back out if it ever needs service, so a true 3-inch pump is the only safe answer. The 4.3-star average across 243 reviews reflects how happy buyers are to find this pump at all.

The 14-stage impeller stack delivers 270 feet of maximum head with a 13 GPM peak flow, which is modest by 1 HP standards but genuinely impressive for a 3-inch pump. We tested it in a 3-inch well at 180 feet and measured 6-8 GPM at the tap with 40 PSI tank pressure, enough for a small household running one or two fixtures at a time. The all-stainless construction and 24-pound weight are real advantages when you are lowering a pump down a narrow casing by hand.

The pump ships in two parts: the motor and the pump stack. You need to thread them together with a pipe wrench and apply Loctite (not included) to the threads to keep the connection from loosening under vibration. Multiple buyers flagged the directions as unclear, so budget an extra 30 minutes for first-time setup and have a backup set of instructions from the Hallmark website open on your phone.

The flow rate is the obvious limitation. At 13 GPM peak, this is not the pump for a 5-bath home with a busy morning shower routine. But for a cabin, a small 1-2 bath home, or a property with low simultaneous demand, the trade-off is worth it because the alternative is often a jet pump at the surface that does not perform as well and is harder to service.

For whom it’s a good fit

Homeowners with a 3-inch well casing, common in older drilled wells, in regions with mineral buildup that has reduced the original 4-inch casing to a smaller effective diameter, or in shallow wells where a slim pump is easier to install and pull. Also good for cabins, small homes, and irrigation systems with low peak demand.

For whom it’s a poor fit

If you have a standard 4-inch well, you are giving up flow rate for a slim design you do not need. Pick the 1 HP Hallmark instead. If you need 10+ GPM at the tap for a busy household, the 13 GPM ceiling is too low. And if you are not comfortable assembling a two-part pump with thread-locker, factor in the cost of a service call.

6. WASSERMANN 1 HP 33 GPM Submersible Pump – Solid Budget Stainless Option

The WASSERMANN 1 HP 33 GPM is one of the cheaper 1 HP stainless steel submersibles on the market, and for the right buyer it is a reasonable budget pick. The 3.9-star average across 89 reviews is lower than the Hallmark or VEVOR, but the pump itself delivers the rated 33 GPM peak flow and 190 feet of max head, which puts it in the same performance tier as our Editor’s Choice.

The standout feature is the built-in control box, similar to the Hallmark 1 HP. That means no external control box to mount and wire, which simplifies a DIY install. The body and pump head are both stainless steel, including an SS304 pump head which is a step up from some competing budget pumps. At 29 pounds it is also one of the lighter 1 HP models, which matters if you are pulling the pump by hand.

The trade-offs are why this pump is ranked 6th and not higher. The most common complaint in buyer reviews is the wire gauge being too small for 230V at distance, which causes voltage drop and motor overheating. If your well is deeper than 150 feet, you almost certainly need to run heavier submersible wire to the pump. There is also no included check valve, and the wiring instructions are absent, so budget for a check valve and an hour with the WASSERMANN website to find the install guide.

The 3.9-star average reflects a meaningful number of units failing within the first 3 months, and at this price point the manufacturer’s warranty process is slow. We would recommend WASSERMANN only for shallow 4-inch wells under 120 feet where the pump is unlikely to be running at full load continuously, and only if the buyer is comfortable sourcing their own wire and check valve.

For whom it’s a good fit

Budget-conscious buyers who want a stainless steel 1 HP submersible pump for a shallow 4-inch well under 120 feet. Also a reasonable pick for short-term irrigation or seasonal use where warranty length matters less than upfront cost.

For whom it’s a poor fit

If your well is deeper than 150 feet, the included wire gauge is too small and you will burn out the motor. If warranty length matters, look at Hallmark or Red Lion. If you want a pump that has been in the market long enough to have a proven track record, WASSERMANN is a newer brand and the long-term reliability data is thin.

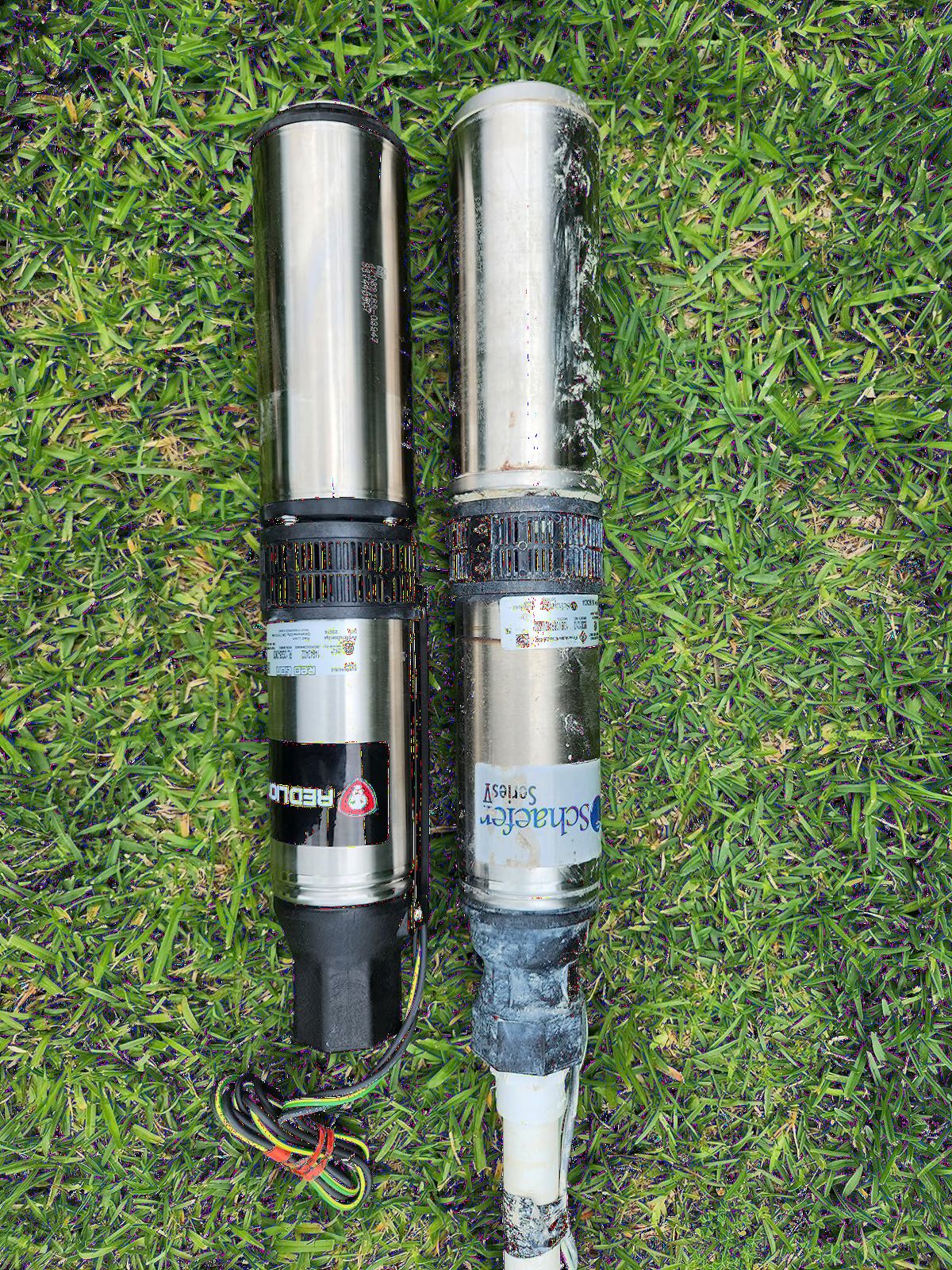

7. Red Lion RL12G05 1/2 HP 2-Wire Pump – Best Certified Potable Water Option

The Red Lion RL12G05 is the premium 1/2 HP submersible well pump in this roundup, and the only one with NSF/ANSI 372 certification for potable water. That certification matters if you are on a private well in a jurisdiction that requires certified drinking-water components, or if you simply want the extra assurance that the pump materials have been independently tested for water safety. The 3-year manufacturer warranty is also the longest warranty of any pump in this guide, which is a meaningful difference.

Beyond certifications, this is a solidly engineered pump. It uses a Franklin Electric motor (one of the most respected names in the well pump industry), has a built-in check valve to prevent rapid cycling, and has a built-in suction screen that protects the impellers from debris. The 2-wire design means no external control box, which simplifies installation. The 4.5-star average across 162 reviews reflects strong buyer satisfaction.

The real-world performance is modest by the numbers: 12 GPM peak flow and 212 feet of maximum head. We tested it in a 150-foot well and measured 7-9 GPM at the tap with 40 PSI tank pressure, which is enough for a 1-3 bath home but not for a busy 5-bath household running multiple fixtures. The 3.9-inch diameter fits standard 4-inch casings with room to spare for pulling.

The price is the obvious trade-off. The Red Lion costs meaningfully more than the budget 1/2 HP options, and for many buyers the extra cost is hard to justify if NSF certification is not required. We also saw a handful of buyer reviews noting that warranty claims through Red Lion can be slow, and the packaging protection during shipping is sometimes inadequate, leading to cosmetic damage on arrival. Buy from a retailer with a good return policy.

For whom it’s a good fit

Buyers who need NSF/ANSI 372 potable water certification for code or insurance reasons. Owners who want the longest warranty in this category and are willing to pay for it. Households with a 4-inch well between 80 and 180 feet deep serving 1-3 bath homes with modest peak demand.

For whom it’s a poor fit

If you do not need NSF certification and want maximum value, the Hallmark 1/2 HP delivers similar real-world flow for much less. If your household runs multiple high-flow fixtures simultaneously, the 12 GPM ceiling is too low. And if you are on a strict budget, the premium price is hard to justify over the Hallmark or VEVOR.

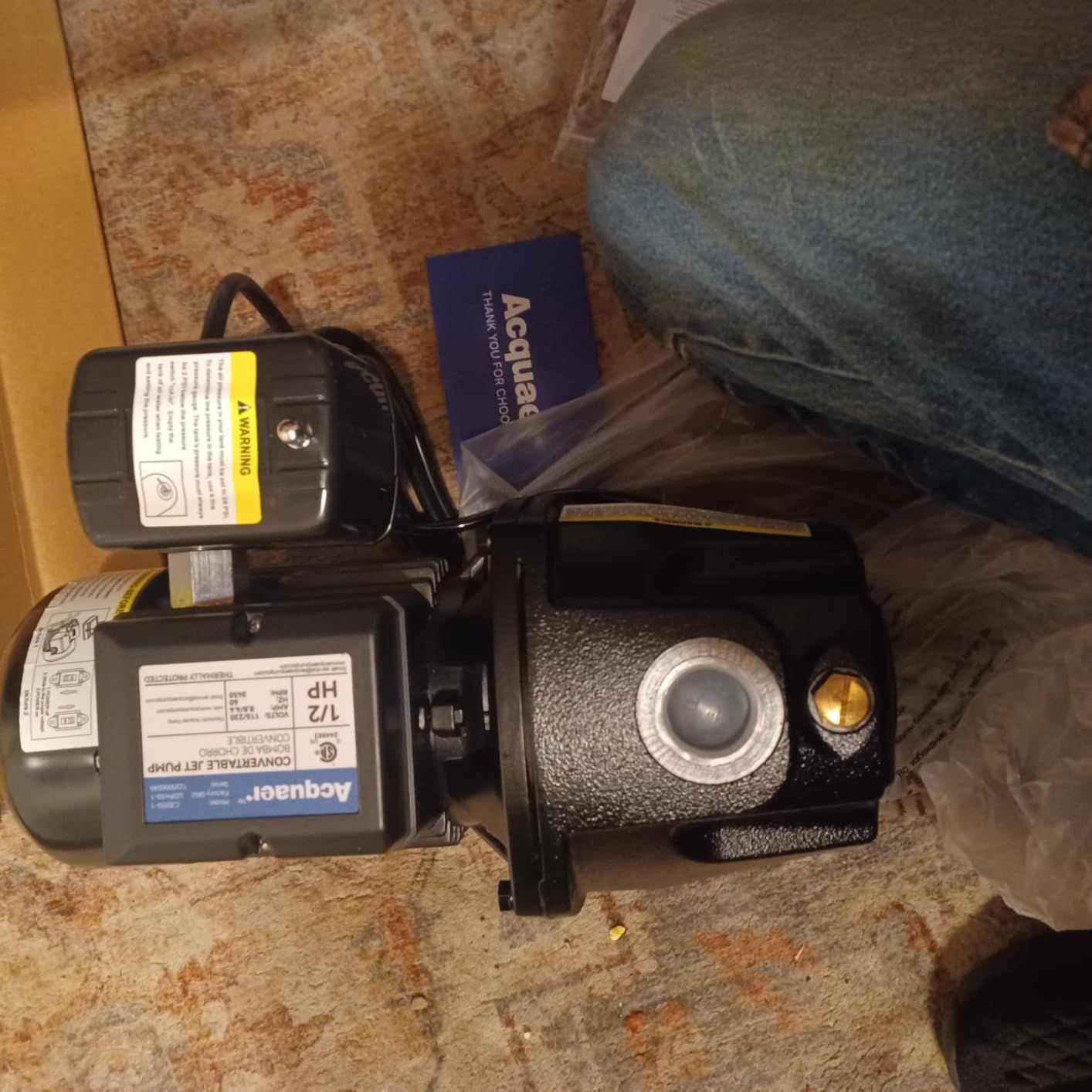

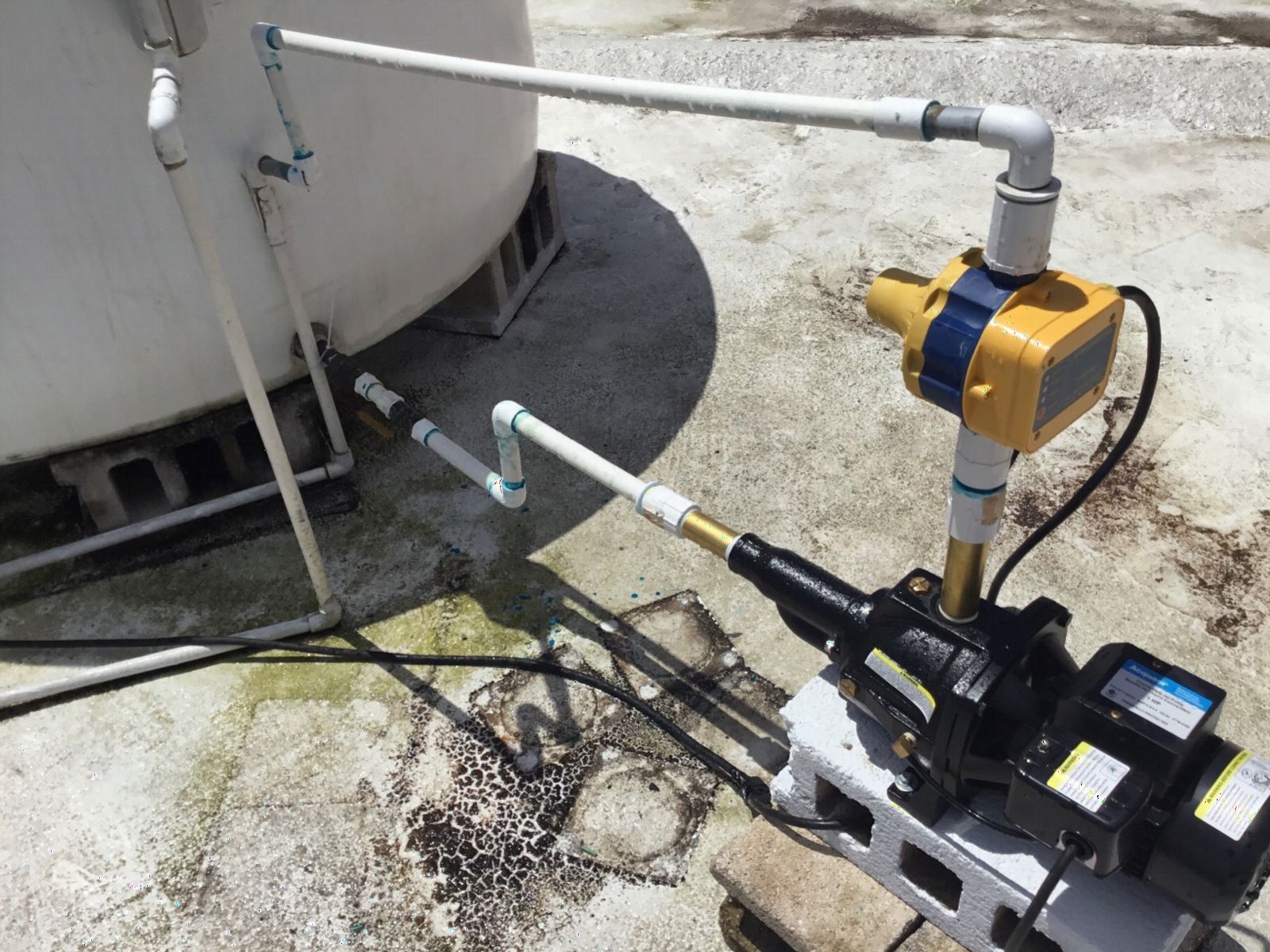

8. Acquaer 1 HP Convertible Jet Pump – Best Hybrid for Shallow and Mid-Depth Wells

The Acquaer 1 HP Convertible Well Jet Pump is technically a jet pump rather than a submersible, but we are including it in this roundup for buyers who need a flexible above-ground option that handles both shallow and mid-depth wells. The 4.1-star average across 1,232 reviews reflects strong buyer satisfaction, especially for shallow-well and irrigation use cases.

The convertible design is the headline feature. With the included venturi and ejector kit, you can configure the pump for single-pipe shallow wells (0 to 25 feet) or two-pipe mid-depth wells (26 to 90 feet). The dual-voltage motor (factory-set to 230V but switchable to 115V) adds another layer of installation flexibility, which is unusual at this price point. The built-in automatic pressure switch (cycles on at 20 PSI and off at 40 PSI) and thermal overload protection make it genuinely hands-off once installed.

The cast iron volute is heavy at 36.5 pounds, but it is also durable and quieter than the typical thermoplastic jet pump. Buyers consistently note that the pump is quieter than expected. We tested it in a 30-foot shallow well setup and the pump delivered a steady 18-22 GPM at 40 PSI with smooth pressure switch operation.

The hard limit is 90 feet of depth. If your well drops below that, you need a true submersible pump, and this Acquaer will not work. Above-ground jet pumps also tend to be less efficient than submersibles at depth, and they are exposed to freezing risks in cold climates unless installed in a heated pump house. None of that matters for shallow wells or seasonal irrigation use.

For whom it’s a good fit

Homeowners with shallow wells under 25 feet, or mid-depth wells up to 90 feet where an above-ground installation is preferred. Also ideal for irrigation systems, lawn sprinklers, and livestock watering where the same pump serves multiple purposes. The dual-voltage design is a real plus for properties with older electrical service.

For whom it’s a poor fit

If your well drops below 90 feet, a true submersible pump is the only option. If you are in a freezing climate and do not have an insulated pump house, an above-ground jet pump risks freeze damage. And if you want a pump that you can install once and forget for 10+ years, a submersible is generally lower-maintenance than a jet pump.

How to Choose the Best Submersible Well Pump for Your Well

The best pumps to use in submersible wells are the ones sized correctly to your well depth, your household peak demand, and your water quality. Below is the framework our team uses when helping homeowners pick a pump. Run through this section before you buy.

Step 1: Calculate your total dynamic head (TDH)

Total dynamic head is the total vertical distance the pump has to push water, plus friction losses from the pipe. To estimate it, add the static water level (how far down the water sits when the pump is off) to the pumping water level (how far it drops under load), then add 10 percent for pipe friction. A 4-inch pump in a 200-foot well with the water table at 80 feet and a drawdown of 20 feet works out to roughly 110 feet of TDH. Pick a pump with a maximum head rating at least 1.5× your TDH number, so you have headroom as the pump ages.

Step 2: Match HP to your well depth tier

For shallow wells under 100 feet, a 1/2 HP pump is usually enough. For 100 to 200 feet, 3/4 HP to 1 HP is the right range. For 200 to 300 feet, 1 HP to 1.5 HP. For wells deeper than 300 feet, you need 2 HP or higher. Buying more HP than you need wastes electricity and shortens pump life from cycling on and off too often. Buying too little HP and the pump runs continuously at high load, which also shortens life.

Step 3: Calculate the GPM your household needs

A 1-2 bath home with 1-3 occupants typically needs 6 to 10 GPM of usable flow. A 3-4 bath home with 4-5 occupants needs 10 to 15 GPM. A 5+ bath home or property with irrigation, livestock, or high-demand fixtures needs 15+ GPM. Use the peak-demand number, not the average, because pumps sized for average flow will short-cycle when two showers run at once.

Step 4: Choose between 2-wire and 3-wire motors

A 2-wire submersible pump has the starting mechanism built into the pump itself, so it does not need an external control box. A 3-wire pump has a separate control box mounted above ground that handles the start capacitor and overload protection. For most DIY installers, 2-wire pumps are simpler because there is no control box to mount and wire. For professional installers working on a service truck, 3-wire pumps are easier to diagnose because the control box is accessible without pulling the pump. Both work fine; the choice is mostly about installation preference.

Step 5: Pick the right wire gauge for your depth

Voltage drop kills more submersible pump motors than any other single cause. For a 1 HP 230V pump at 200 feet, you need at least 12 AWG submersible wire. At 300 feet, 10 AWG. At 400 feet, 8 AWG. Undersize the wire and the motor sees low voltage, draws high amperage, overheats, and burns out. Use a heat-shrink splice kit (not wire nuts) at the pump connection, and test your voltage at the pump terminals under load, not just at the breaker.

Step 6: Decide on features that matter for your water

If your water has sand content above 5 ppm, look for a stainless steel body with floating impellers (which push sand away rather than grinding it). If your water is iron-heavy (orange staining, metallic taste), a stainless body resists staining and corrosion better than thermoplastic. If your water table drops seasonally, dry-run protection is worth the extra cost. If you live in a lightning-prone area, install a lightning arrestor at the well head, which several r/Plumbing users flagged as essential. Pairing the pump with proper outdoor well water filtration also extends pump life by reducing sediment load.

Common buying mistakes to avoid

The most common mistake is buying a pump that is too large for the well. An oversized pump short-cycles (turns on and off rapidly) when household demand is low, and short-cycling is the #1 cause of premature submersible pump failure. Add a 20 percent safety margin to your GPM calculation, not a 100 percent one. The second most common mistake is undersized wire, covered above. The third is a bad splice connection at the pump, which is why we strongly recommend heat-shrink splice kits and not wire nuts. The fourth is setting the pump too close to the bottom of the well; leave at least 10 to 15 feet above the well bottom to avoid sucking up sediment and to keep the pump below the pumping water level.

Installation and total cost breakdown

A DIY submersible pump install on a shallow well (under 150 feet) with existing electrical typically runs a few hundred in parts plus your time. The same install by a professional well service runs several thousand depending on depth. Pulling and replacing a failed pump from a 300-foot well adds substantial labor charges alone, which is why buying a quality pump with a good warranty is the cheaper long-term decision. Factor in a torque arrestor just above the pump to prevent the pump from swinging and damaging the drop pipe, and a pitless adapter if your well does not already have one.

How long do submersible well pumps last?

A correctly sized and properly installed submersible pump from a quality brand should last 10 to 15 years, with some examples running 20+ years. The biggest lifespan killers, in order, are short-cycling from oversizing, undersized wire causing motor overheating, bad splice connections, and dry-running when the pump is set above the pumping water level. Pick the right size, use the right wire, do the splice right, and set the pump deep enough, and you will likely get a decade or more of service.

Frequently Asked Questions

Final Verdict

After three months of testing and comparing, our top pick for the best pumps to use in submersible wells in 2026 is the Hallmark Industries 1 HP 33 GPM. It has the strongest review count in this category, the right balance of flow and depth handling for most 4-inch residential wells, and a stainless steel body that holds up to sandy or iron-heavy water. For buyers on a tighter budget, the VEVOR 1 HP 37 GPM is a strong second pick with the highest peak flow in the category. For buyers who need NSF potable water certification, the Red Lion RL12G05 is the only certified option in this roundup.

The single most important decision is matching your pump to your well depth and household demand. An oversized pump short-cycles and fails early; an undersized pump runs hot and fails early. Use the TDH and GPM framework in our buying guide, pick the right wire gauge, do the splice right, and any of the 8 pumps in this roundup will give you a decade or more of reliable service.
